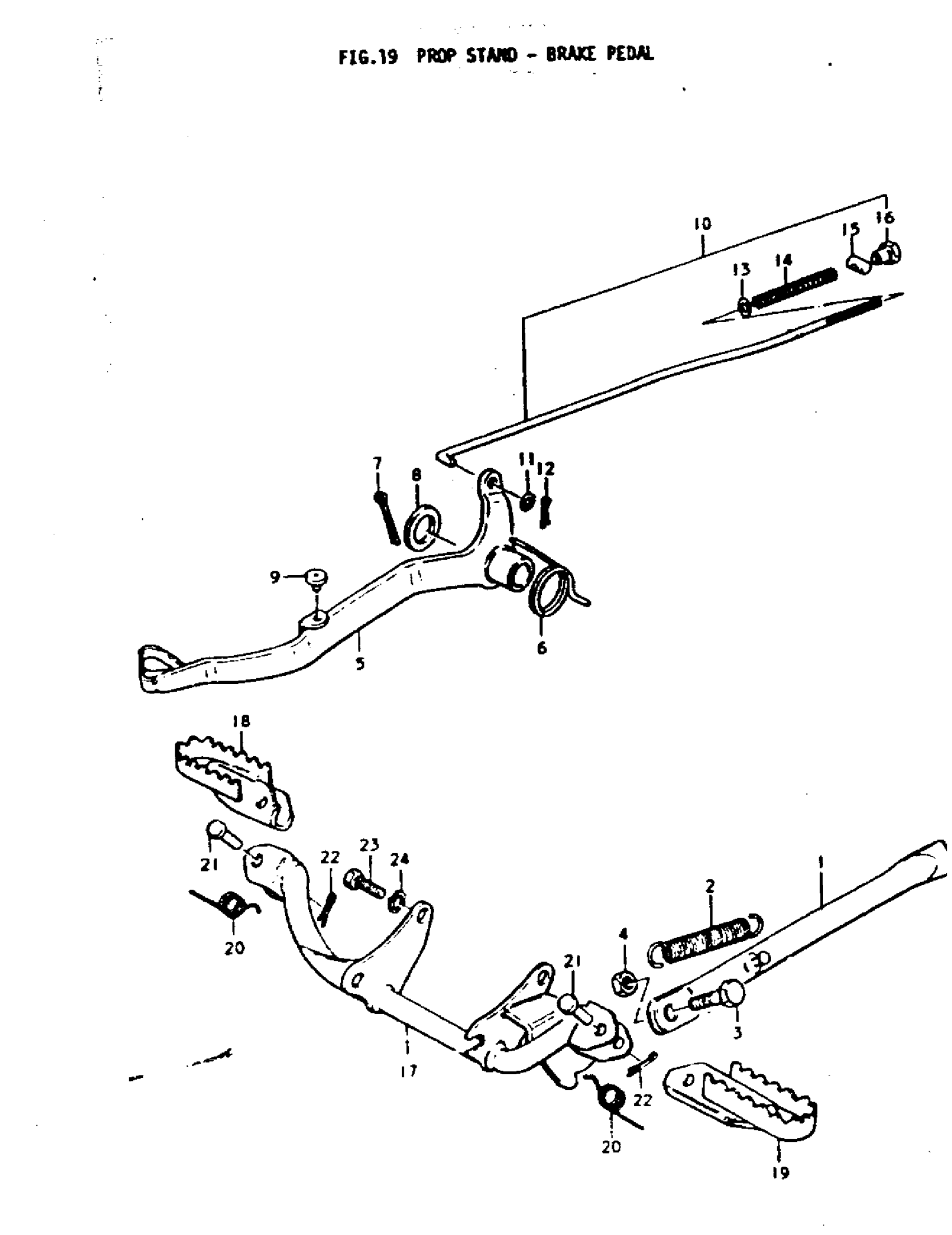

Suzuki DS80 (1979) PROP STAND-BRAKE PEDAL Diagram

#

Description
Price

1

STAND, PROP

42310-46400

Unavailable

2

SPRING This part replaces 09443-14005.

09443-14017

$3.04

3

BOLT This part replaces 09100-10007.

09100-10287

$3.48

4

NUT This part replaces 08310-22108.

08310-00107

$2.19

5

PEDAL, BRAKE This part replaces 43110-46900.

43110-46502

Unavailable

6

SPRING This part replaces 09448-32004.

09448-32004-XC0

Unavailable

7

PIN This part replaces 04111-30308.

04111-3030A

$1.49

8

WASHER

09160-15002

$1.91

9

STOP, BRAKE PEDAL

43155-30500

Unavailable

10

ROD ASSY, REAR BRAKE

43300-46200

Unavailable

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

SPRING

09440-09004

$2.20

15

PIN

09209-11002

$2.19

16

.NUT This part replaces 09150-06001.

09150-06010

$3.10

17

NO DESCRIPTION AVAILABLE This part replaces 43510-46000.

43510-46700

Unavailable

18

FOOTREST, RH (BLACK) This part replaces 43550-46000.

43550-46000-019

$20.27

19

FOOTREST, LH (BLACK) This part replaces 43560-46000.

43560-46000-019

$20.97

20

SPRING

09448-14012

$3.04

21

PIN

09200-08002

$2.05

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

23

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13
