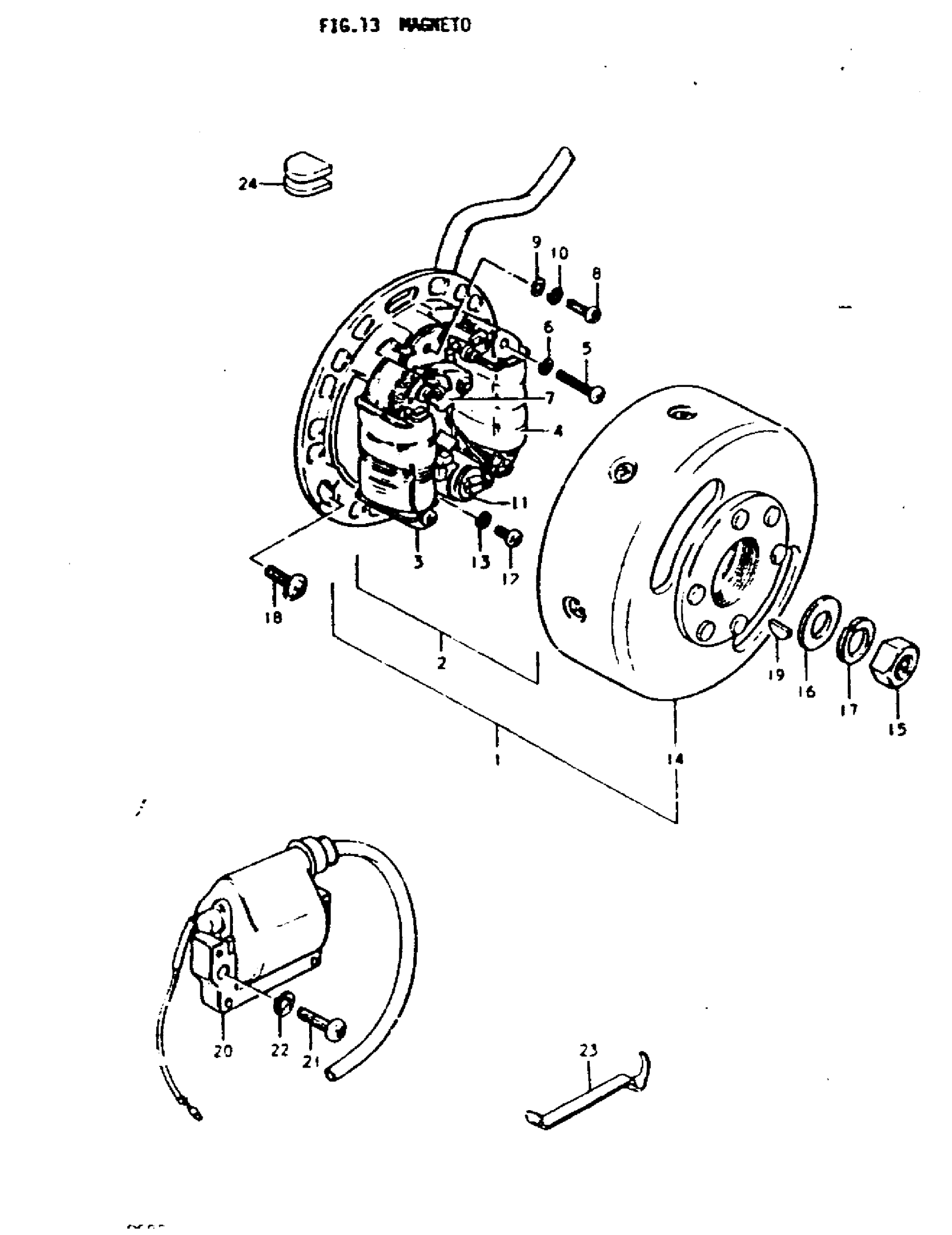

Suzuki DS80 (1979) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY

32100-46410

Unavailable

2

STATOR ASSY

32101-46410

Unavailable

3

COIL, LIGHTING

32120-46410

Unavailable

4

COIL, PRIMARY

32140-48010

Unavailable

5

SCREW (4X30) This part replaces 02111-04308.

09125-04023

$2.30

6

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

7

CONTACT POINT

32240-43012

$38.45

8

SCREW

09125-04001

Unavailable

9

WASHER This part replaces 08322-21048.

08322-01047

$1.86

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

CONDENSER

32341-43012

Unavailable

12

SCREW This part replaces 02112-04088.

02112-04087

$1.49

13

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

14

ROTOR This part replaces 32102-46410.

32102-43013

Unavailable

15

NUT This part replaces 09140-10003.

09140-10041

$2.38

16

WASHER This part replaces 08322-21108.

08322-01107

$2.15

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

SCREW

09139-05011

$2.38

19

KEY

08341-31039

$1.89

20

COIL ASSY,IGNIT This part replaces 33410-43010.

33410-43011

Unavailable

21

SCREW This part replaces 02112-06208.

02112-06207

$1.78

22

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

23

BAND, MAGNETO LEAD WIRE

33881-22200

Unavailable

24

CAP, MAGNETO LEAD WIRE

09259-04001

Unavailable
