Partiron

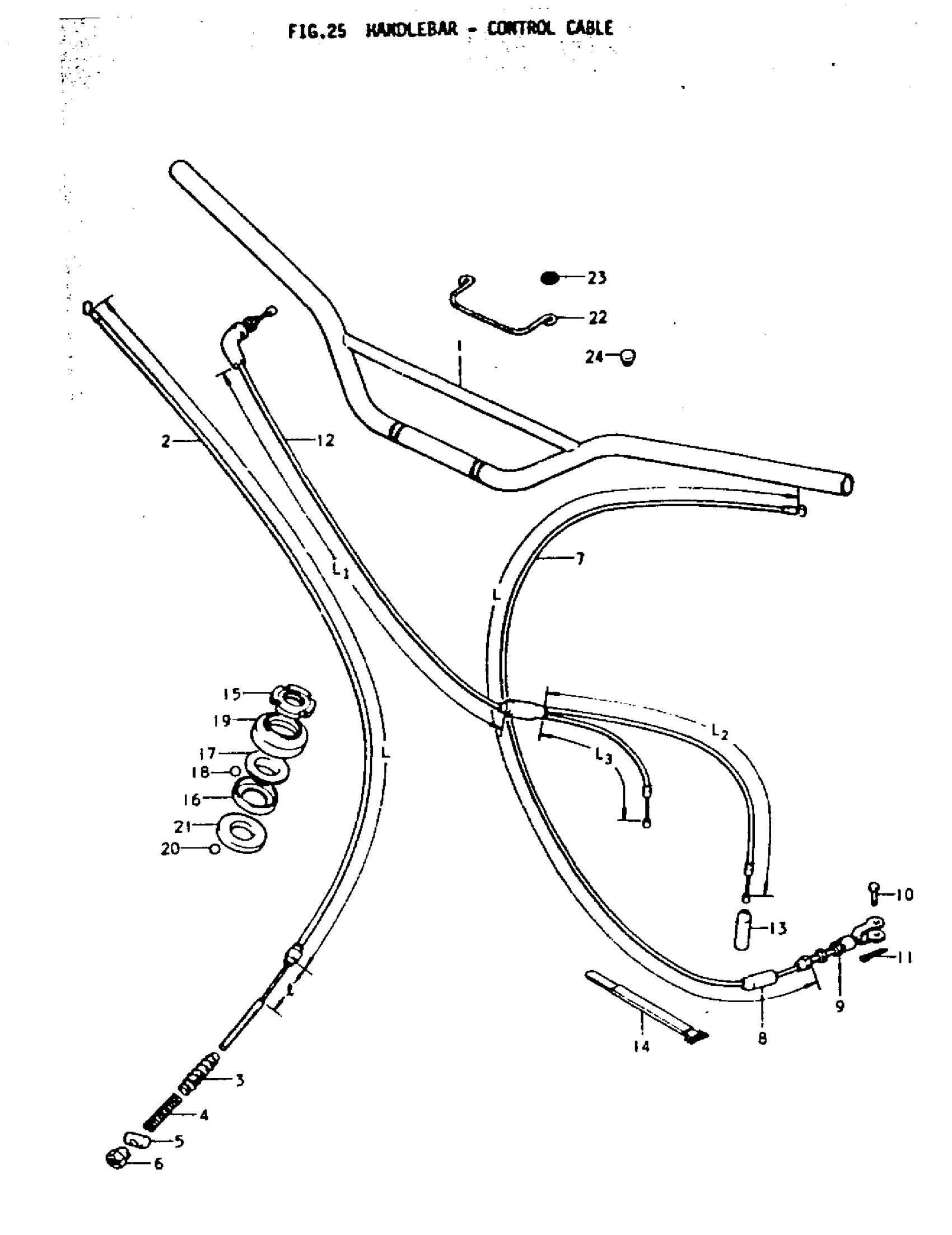

Suzuki DS80 (1979) HANDLEBAR-CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR (BLACK) This part replaces 56110-46401.

56110-46402-291

Unavailable

2

CABLE,FR BRAKE | L:960, L:40 This part replaces 58100-03751.

58100-03X01

Unavailable

3

DUST SEAL

09287-07001

$2.00

4

SPRING

09440-06003

$2.44

5

LEVER, PIN

09209-10001

$1.49

6

NUT

09150-05101

$3.04

7

CABLE,CLUTCH | L:935 This part replaces 58200-46400.

58200-46401

Unavailable

8

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

9

NUT This part replaces 08310-12086.

08310-0008A

$1.84

10

PIN, CLUTCH CABLE

09200-06004

$2.20

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

CABLE,THROTTLE | L1:510, L2;453, L3:303 This part replaces 58300-46401.

58300-46X05

Unavailable

13

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

14

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

15

NUT, STEERING STERN

51631-28000

$17.37

16

RACE,STEERING INNER UPPER

51611-20002

$11.95

17

RACE,STEERING OUTER UPPER

51621-28000

$11.95

18

STEEL BALL. UPPER

06111-06003

$1.49

19

DUST SEAL,STEERING UPPER

51643-25001

$4.43

20

STEEL BALL, LOWER

06111-08003

$1.49

21

RACE, INNER LOWER

51611-33002

$13.81

22

GUIDE, CABLE

58621-46400

Unavailable

23

WASHER This part replaces 08322-11088.

08322-01087

$2.13

24

PLUG This part replaces 09250-06001.

09250-06005

$2.15
