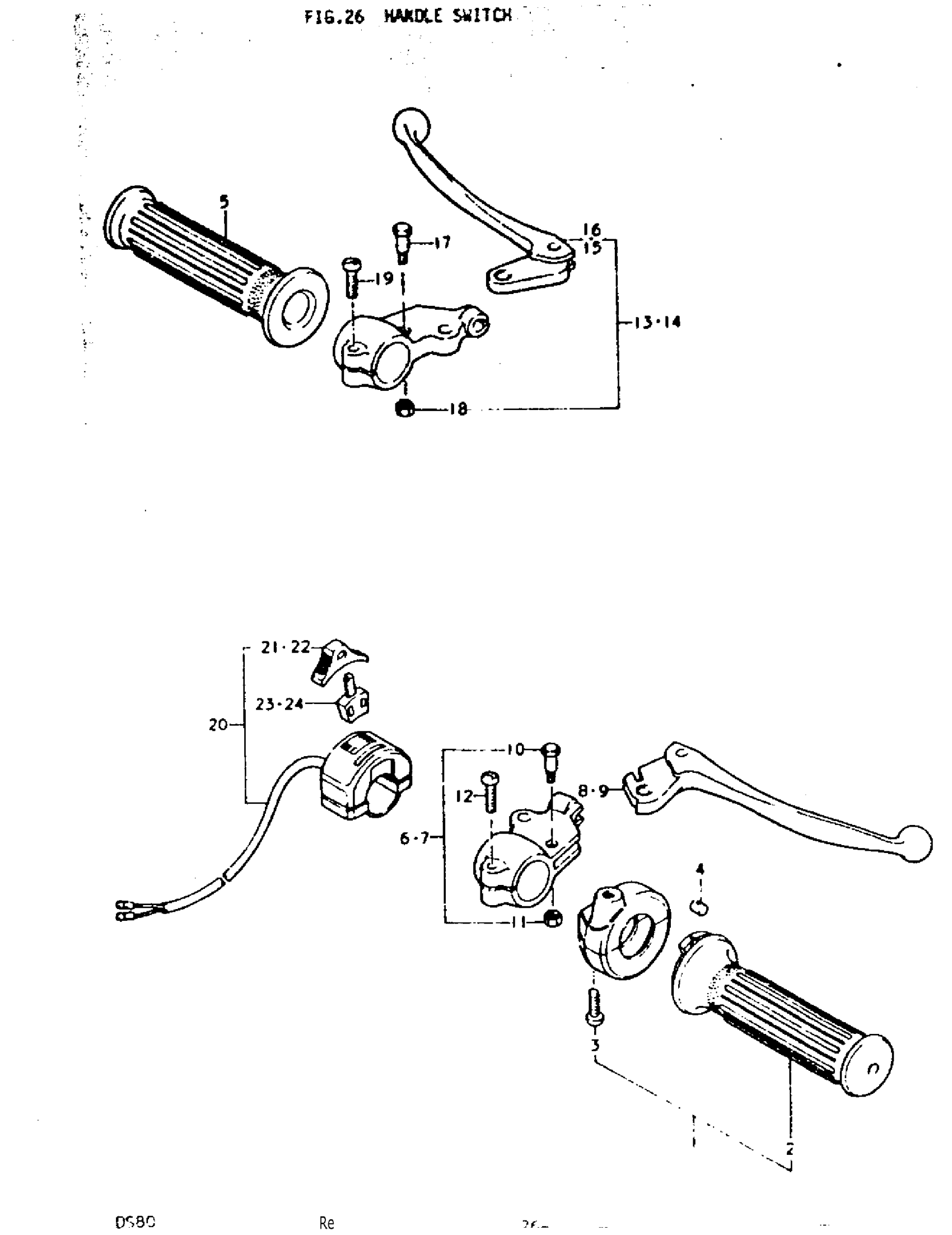

Suzuki DS80 (1979) HANDLE SWITCH Diagram

#

Description
Price

1

CASE ASSY, THROTTLE This part replaces 57100-46400.

57100-46430

Unavailable

2

THROTTLE GRIP COMP This part replaces 57110-46110.

57110-20010

$19.72

3

SCREW,5X22 This part replaces 09125-05105.

09125-05105-XC0

$4.10

4

PIECE. END

58631-07010

$3.56

5

GRIP, LH This part replaces 57211-46110.

57211-46111

$12.15

6

BRAKE LEVER ASSY This part replaces 57300-46400.

57300-46501

Unavailable

7

BRAKE LEVER ASSY | F.N0.105671~

57300-46501

Unavailable

8

LEVER, BRAKE

57470-46400

Unavailable

9

LEVER, BRAKE | F.N0.105671~

57420-46501

Unavailable

10

SCREW This part replaces 57431-01011.

57431-01012

$5.24

11

NUT This part replaces 08310-11058.

08310-00057

$1.84

12

SCREW This part replaces 02112-06208.

02112-06207

$1.78

13

CLUTCH LEVER ASSY This part replaces 57500-46400.

57500-46501

Unavailable

14

CLUTCH LEVER ASSY | F.N0.105671~

57500-46501

Unavailable

15

LEVER, CLUTCH

57620-46400

Unavailable

16

LEVER, CLUTCH | F.N0.105671~

57620-46501

Unavailable

17

SCREW This part replaces 57431-01011.

57431-01012

$5.24

18

NUT This part replaces 08310-11058.

08310-00057

$1.84

19

SCREW This part replaces 02112-06208.

02112-06207

$1.78

20

SWITCH ASSY,LIG This part replaces 37250-41451.

37250-37400

Unavailable

21

KNOB, LIGHTING

57617-28601

Unavailable

23

BLOCK, LIGHTING SLIDE

57680-28601

Unavailable
