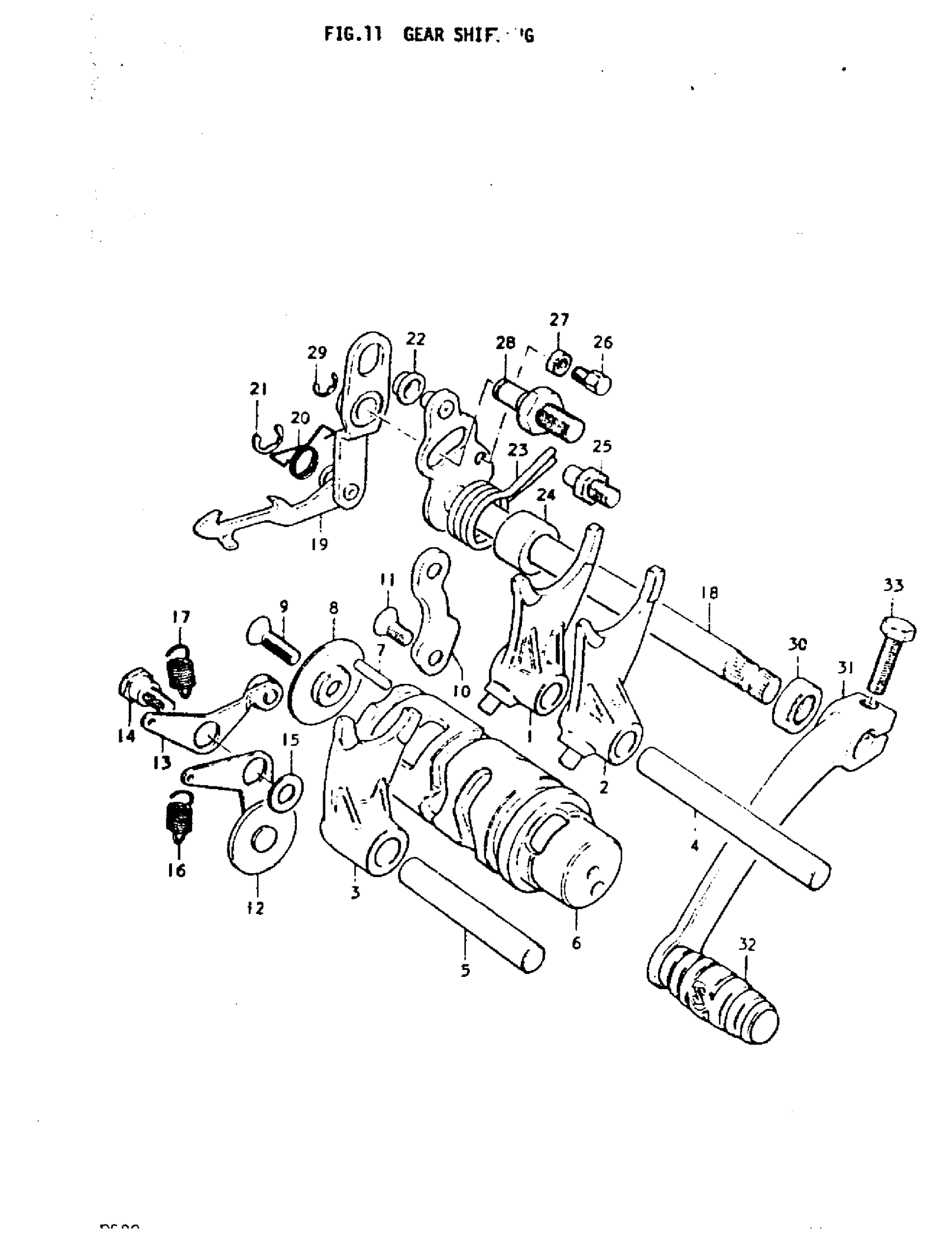

Suzuki DS80 (1979) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO. 1 This part replaces 25211-46002.

25211-46003

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-46000

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-46000

Unavailable

4

SHAFT, NO.2 This part replaces 25411-40000.

25411-14331

$23.07

5

SHAFT, NO.1 This part replaces 25421-40000.

25421-35410

$23.47

6

CAM, GEAR SHIFTING This part replaces 25311-46000.

25311-46001

Unavailable

7

PIN, GEAR SHIFTING CAM DRIVE

09261-04009

$1.56

8

RETAINER, DRIVE PIN This part replaces 25322-03000.

25322-46000

$7.77

9

SCREW This part replaces 02122-06208.

02122-0620A

$1.49

10

GUIDE, GEAR SHIFTING CAM

25341-46000

Unavailable

11

SCREW This part replaces 02122-06128.

02122-06127

$1.84

12

STOPPER, GEAR SHIFTING CAM

25350-46000

Unavailable

13

STOPPER, CAM NEUTRAL

25390-46001

Unavailable

14

BOLT

09111-06020

Unavailable

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

SPRING

09443-08016

Unavailable

17

SPRING This part replaces 09443-10016.

09443-10017

Unavailable

18

SHAFT, GEAR SHIFTING

25510-46002

$44.07

19

PAWL This part replaces 25513-46003.

25540-46004

Unavailable

20

SPRING

09448-13006

$2.53

21

E RING This part replaces 08332-11078.

08332-1107A

$1.78

22

ROLLER

09180-07014

$4.11

23

SPRING

09444-26015

Unavailable

24

SPACER

09180-12068

$3.16

25

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

26

BOLT, GEAR SHIFTING RETURN SPRING SET

25673-46000

Unavailable

27

.NUT This part replaces 08310-22068.

08310-00067

$2.13

28

STOPPER, ARM This part replaces 25672-46001.

25672-46002

Unavailable

29

CIRCLIP This part replaces 08332-11068.

08332-1106A

$1.49

30

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

31

LEVER ASSY,GEAR This part replaces 25600-16501.

25600-16521

$49.59

32

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

33

BOLT This part replaces 01107-06208.

01500-06207

$2.28
