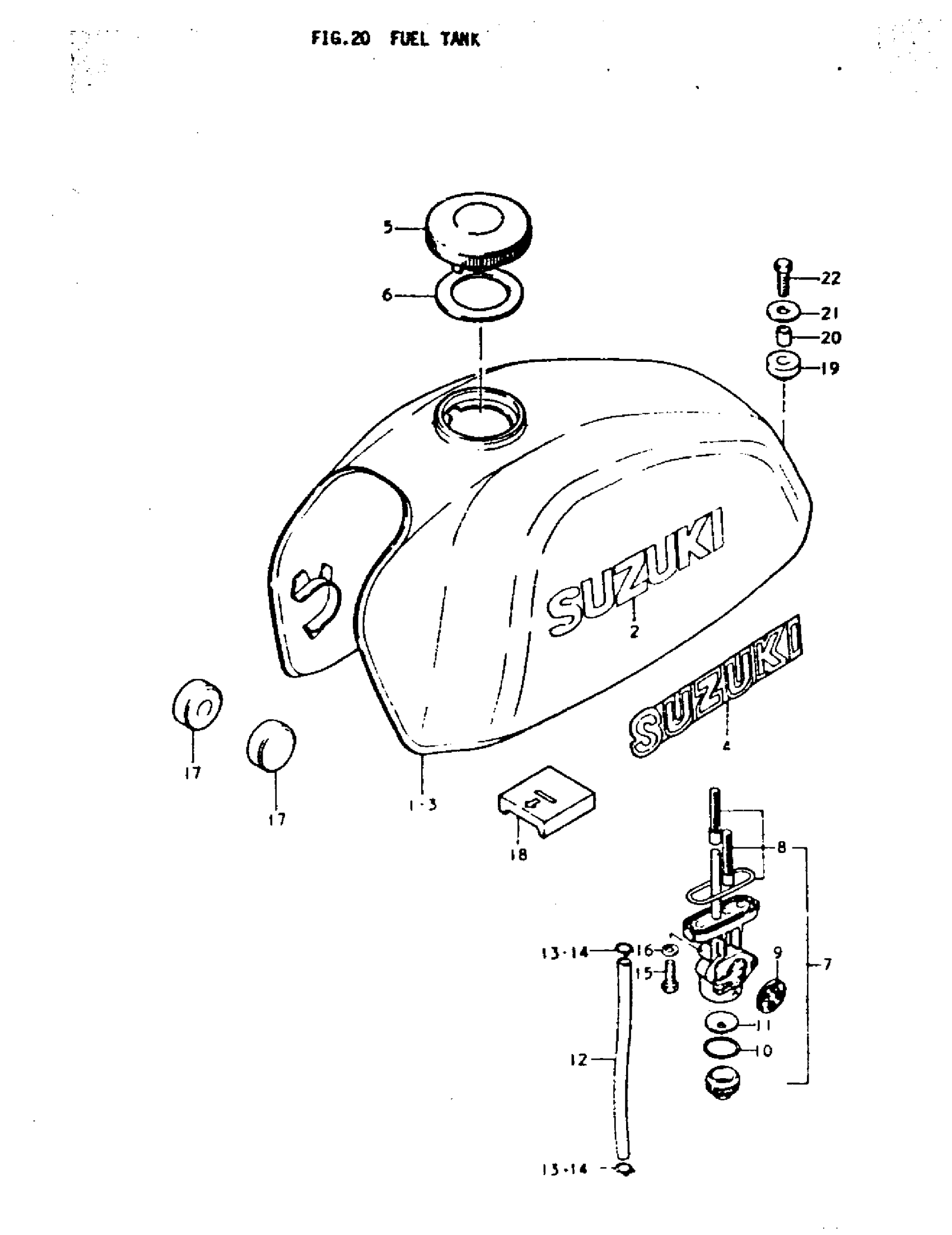

Suzuki DS80 (1979) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 44110-46400-05M.

44110-46402-13L

Unavailable

2

EMBLEM, FUEL TANK

68111-46400-538

Unavailable

5

CAP FUEL TANK This part replaces 44210-23300.

44200-23810

$49.39

6

GASKET, FUEL TANK CAP

85413-70000

$4.40

7

COCK ASSY,FUEL This part replaces 44300-22571.

44300-13275

$45.80

8

FILTER SET This part replaces 44300-28817.

44300-28818

$10.50

9

GASKET,LEVER This part replaces 44341-28070.

44341-28071

$2.92

10

O-RING This part replaces 44346-28070.

44346-28071

$2.40

11

CLEANER

44344-28070

Unavailable

12

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

13

CLIP

09401-08401

$1.54

15

SCREW This part replaces 09128-06002.

02162-0616B

$2.03

16

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

17

CUSHION, FRONT

09329-10005

$2.11

18

CUSHION, REAR NO.1

44541-46000

Unavailable

19

CUSHION, REAR NO.2

09320-10012

Unavailable

20

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

21

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

22

BOLT This part replaces 01107-06208.

01500-06207

$2.28
