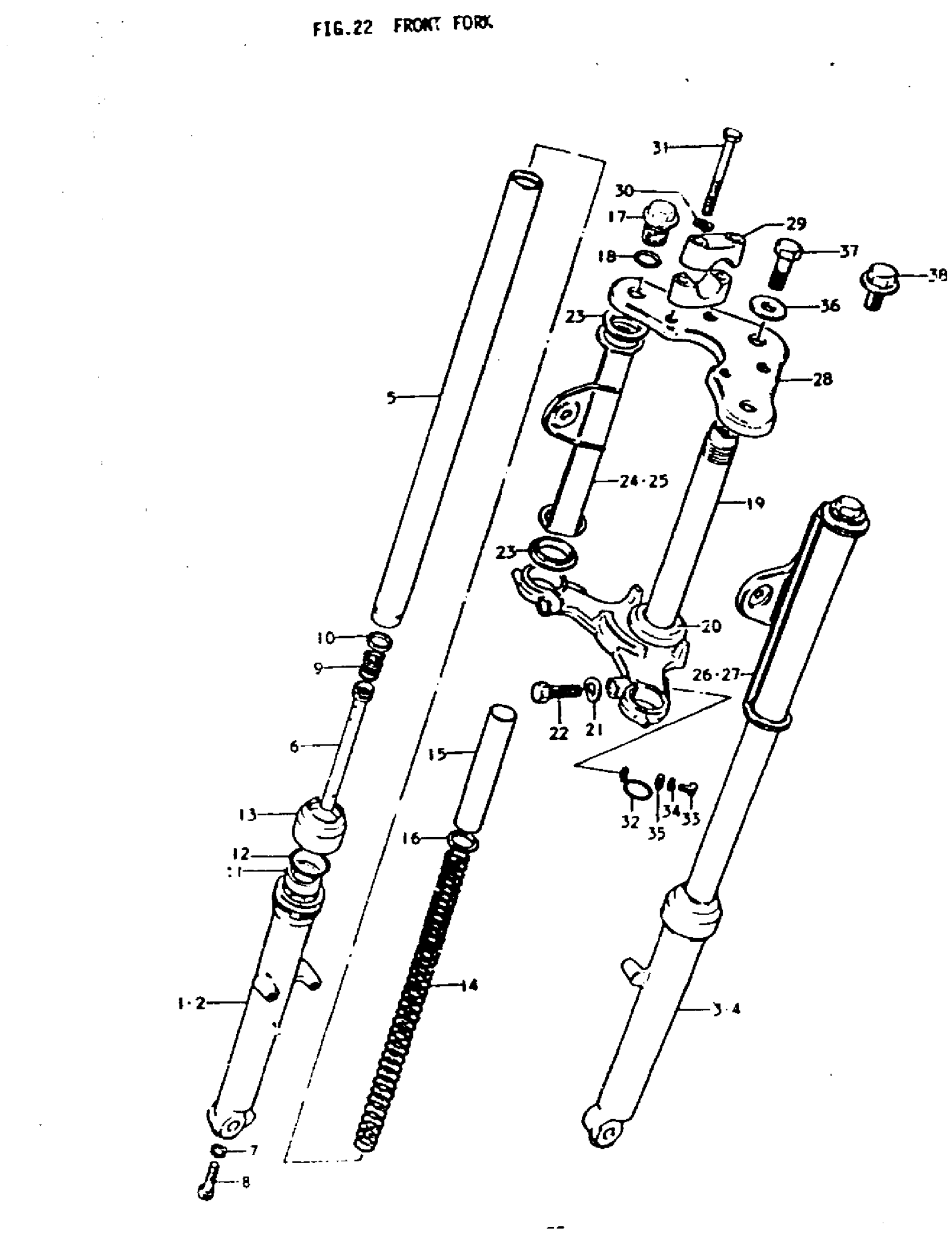

Suzuki DS80 (1979) FRONT FORK Diagram

#

Description
Price

1

TUBE, OUTER RH This part replaces 51131-46200-291.

51131-46201-291

Unavailable

2

TUBE, OUTER RH | 116667~

51131-46201-291

Unavailable

3

TUBE, OUTER LH This part replaces 51141-46200-291.

51141-46201-291

Unavailable

4

TUBE, OUTER LH | 116667~

51141-46201-291

Unavailable

5

TUBE, INNER

51110-46400

Unavailable

6

PIPE, SEAT

51146-46400

Unavailable

7

O RING This part replaces 51148-31030.

51148-36011

$3.56

8

BOLT This part replaces 51147-31030.

51147-48130

$4.34

9

SPRING

51177-46100

Unavailable

10

RING, PISTON

51196-46100

$8.42

11

OIL SEAL This part replaces 51153-46100.

51153-03400

$13.56

12

RING, OIL SEAL STOPPER This part replaces 51156-46100.

51156-48130

$5.32

13

SEAL,DUST This part replaces 51571-46100.

51571-46101

$5.64

14

SPRING

51171-46400

Unavailable

15

SPACER, SPRING

51176-46100

Unavailable

16

SEAT, SPRING

51192-46100

$4.52

17

BOLT

51351-46190

$20.45

18

O RING (D:2.4,ID:17.8) This part replaces 51181-46190.

09280-18004

$5.18

19

NO DESCRIPTION AVAILABLE This part replaces 51410-46400.

51410-46720

Unavailable

20

RACE, OUTER LOWER

51621-33001

$16.25

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

22

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

23

CUSHION

51553-46100

$6.23

24

NO DESCRIPTION AVAILABLE This part replaces 51530-46400-291.

51530-46401-291

Unavailable

26

NO DESCRIPTION AVAILABLE This part replaces 51540-46400-291.

51540-46401-291

Unavailable

28

STEM HEAD, STEERING

51310-46400-291

Unavailable

29

HOLDER, HANDLE, UPPER This part replaces 56211-27130-291.

56211-27200-291

$17.90

30

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

31

BOLT This part replaces 01107-08558.

01500-08557

$3.16

32

CLIP

51452-46100

Unavailable

33

SCREW This part replaces 02112-06128.

02112-06127

$1.84

34

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

35

WASHER This part replaces 08322-21068.

08322-01067

$2.13

36

WASHER

51357-22030

Unavailable

37

BOLT This part replaces 51352-46100.

51352-46101

$11.83
