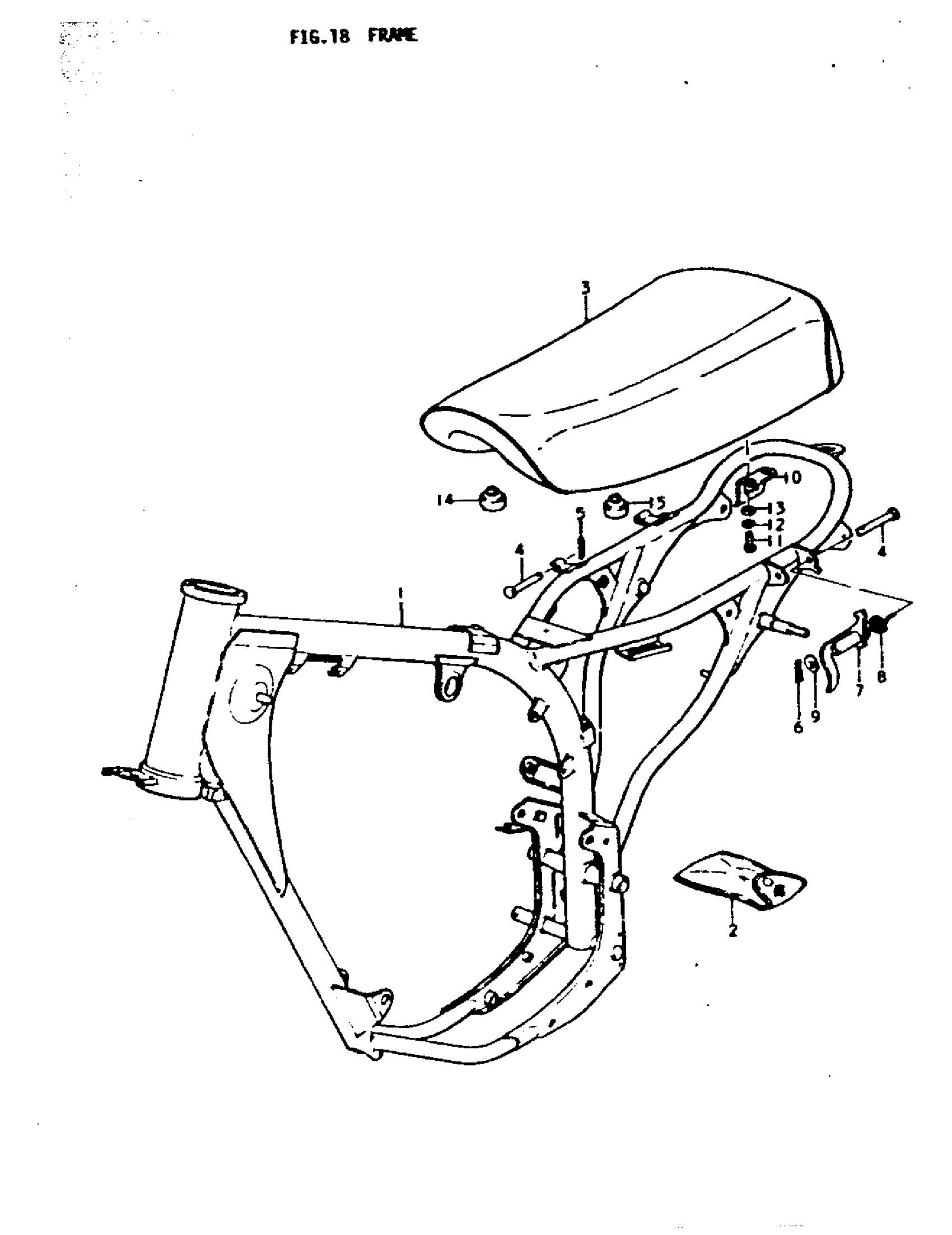

Suzuki DS80 (1979) FRAME Diagram

#

Description
Price

1

FRAME

41100-46400-019

Unavailable

2

TOOL ASSY This part replaces 09800-00108.

09800-21028

$33.02

3

SEAT ASSY

45100-46400-865

Unavailable

4

PIN, SEAT

09200-06018

$2.06

5

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

6

CLIP

09385-06001

$3.10

7

CLAMP, SEAT

45210-33002

Unavailable

8

SPRING, SEAT CLAMP

09448-15001

Unavailable

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

PLATE, CLAMP GUIDE

45213-33000

Unavailable

11

BOLT This part replaces 01107-06128.

01500-06127

$1.97

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

14

CUSHION, SEAT

09321-10002

$2.22

15

CUSHION, SEAT

09321-10001

$2.61
