Partiron

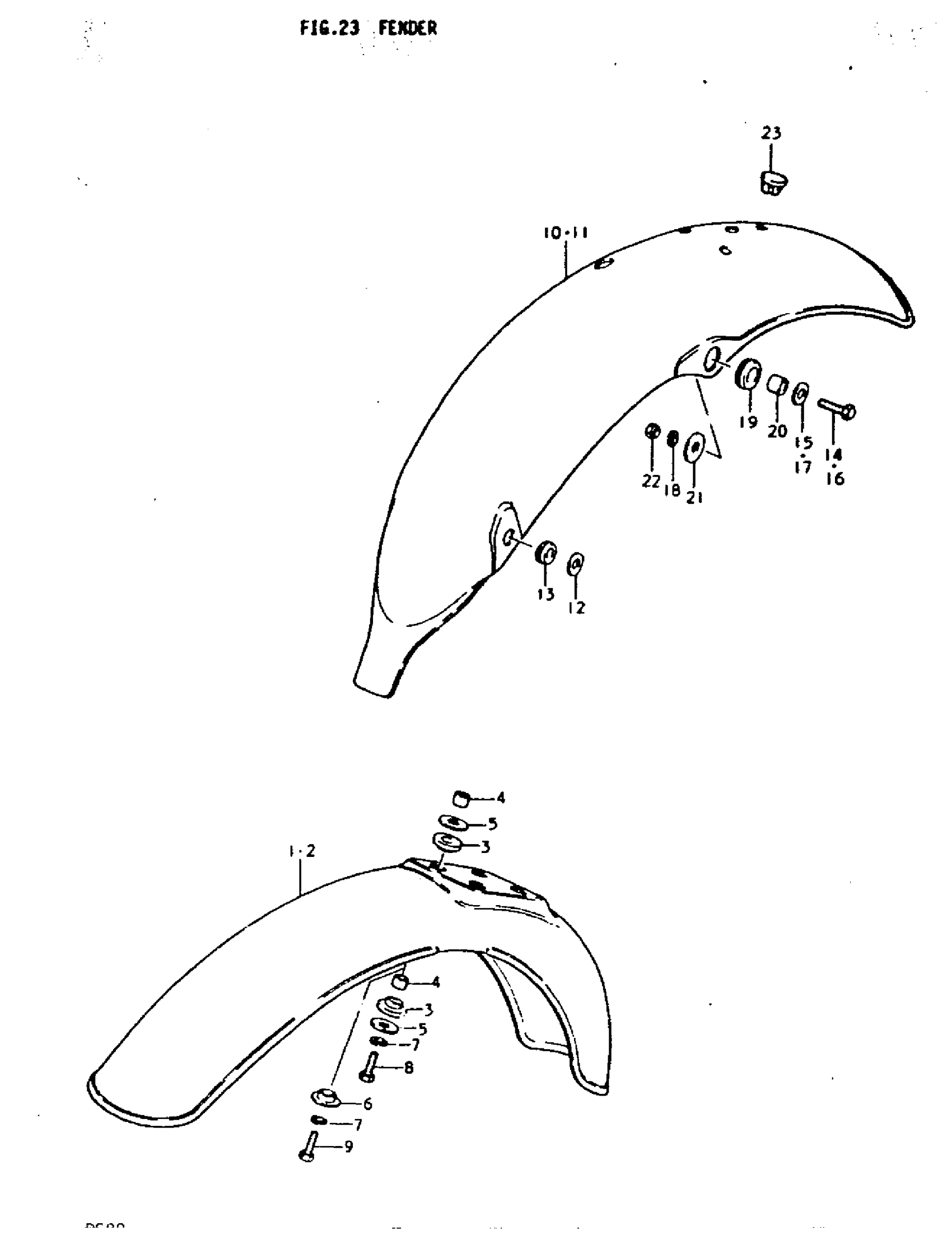

Suzuki DS80 (1979) FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 53111-46400-05M.

53111-46401-13L

Unavailable

3

CUSHION

09320-09003

$2.23

4

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

5

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

BOLT This part replaces 01107-06258.

01500-06257

$1.97

10

NO DESCRIPTION AVAILABLE This part replaces 63111-46400-05M.

63111-46401-13L

Unavailable

12

WASHER This part replaces 09160-06007.

09160-06084

$1.78

13

CUSHION This part replaces 09320-05006.

09320-06504

$4.96

14

BOLT This part replaces 01107-08258.

01500-08257

$2.50

15

WASHER (8.5X26X1.6) This part replaces 09160-08005.

09160-08134

$2.03

16

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

17

WASHER This part replaces 08322-11088.

08322-01087

$2.13

18

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

19

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

20

SPACER This part replaces 09180-08021.

09180-08188

$2.56

21

WASHER

09160-08032

$2.30

22

NUT This part replaces 08310-12088.

08310-00087

$2.13

23

CUSHION

09321-08008

Unavailable
