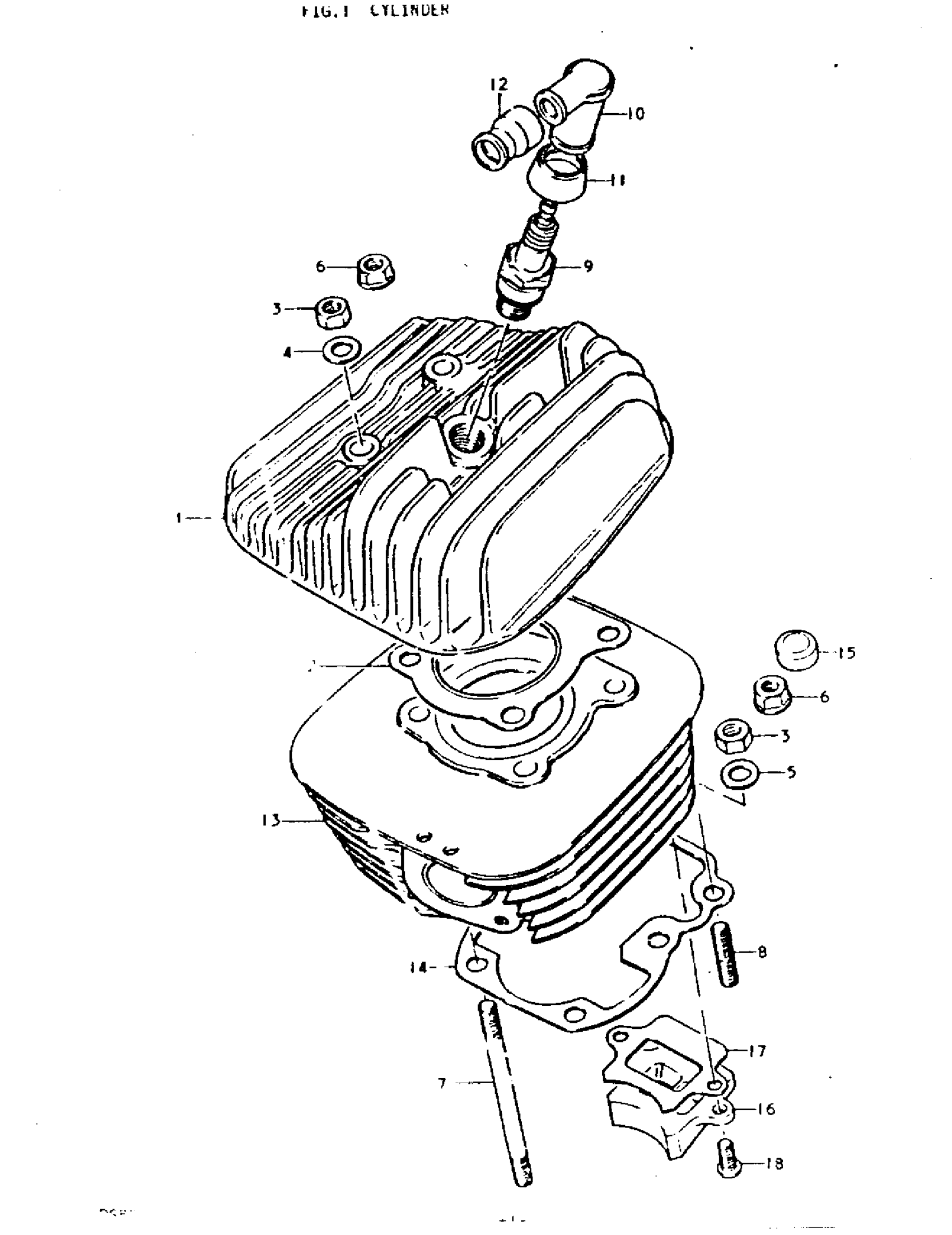

Suzuki DS80 (1979) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD

11111-46400

Unavailable

2

GASKET, CYLINDER HEAD

11141-46082

$5.80

3

NUT This part replaces 08310-12088.

08310-00087

$2.13

4

WASHER This part replaces 08322-21088.

08322-01087

$2.13

5

WASHER This part replaces 08322-11088.

08322-01087

$2.13

7

STUD BOLT, NO.1

09108-08028

$5.20

8

STUD BOLT This part replaces 01421-08208.

01421-0820A

$1.91

9

SPARK PLUG (NGK,BR7ES) | NGK B7ES This part replaces 09482-00089.

09482-00117

$3.03

9

SPARK PLUG | ND W22ES

09482-00046

Unavailable

11

SEAL, SPARK PLUG

33541-69010

$4.37

12

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

13

CYLINDER This part replaces 11210-46400.

11210-46401

$464.88

14

GASKET, CYLINDER This part replaces 11241-46001.

11241-46010

$6.15

15

RUBBER PAD This part replaces 11252-28000.

11252-13630

$3.25

16

LEED VALVE ASSY This part replaces 13150-46010.

13150-46011

Unavailable

17

GASKET, REED VALVE This part replaces 13156-46000.

13156-46001-H17

$2.83

18

SCREW This part replaces 02112-06168.

02112-06167

$1.49
