Description

Price

1

GEAR ASSY, PRIMARY DRIVEN

21200-46010

$254.02

2

WASHER, 2ND DRIVE GEAR This part replaces 08211-17301.

09181-17223

$2.96

3

SPACER, PRIMARY DRIVEN GEAR This part replaces 09180-17045.

21251-21D10

$20.70

4

GEAR, KICK DRIVEN (NT:17) This part replaces 26281-46000.

26281-46001

Unavailable

5

THRUST WASHER | 17X28X1.5

08211-17282

$2.70

6

HUB, SLEEVE

21411-46000

$71.38

7

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

$14.73

8

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

$7.58

9

PLATE, PRESSURE This part replaces 21462-46000.

21462-06C00

$27.28

10

SPRING

09440-15008

$2.10

11

BOLT

09100-05002

$1.49

12

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

13

NUT This part replaces 09140-16001.

09140-16005

$3.75

14

WASHER

09167-17002

$1.91

15

RACK This part replaces 23165-28300.

23165-46000

$22.21

16

BEARING

09263-10002

$10.19

17

.E-RING This part replaces 08332-11088.

08332-1108A

$1.78

18

PINION, RELEASE

23261-41301

$43.68

19

OIL SEAL (10X17X5) This part replaces 09285-10002.

09285-10004

$3.37

20

WASHER (12.5X17X1) This part replaces 09160-12035.

09160-12086

$2.15

21

ARM, CLUTCH RELEASE This part replaces 23271-46000.

23271-46010

$28.97

22

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

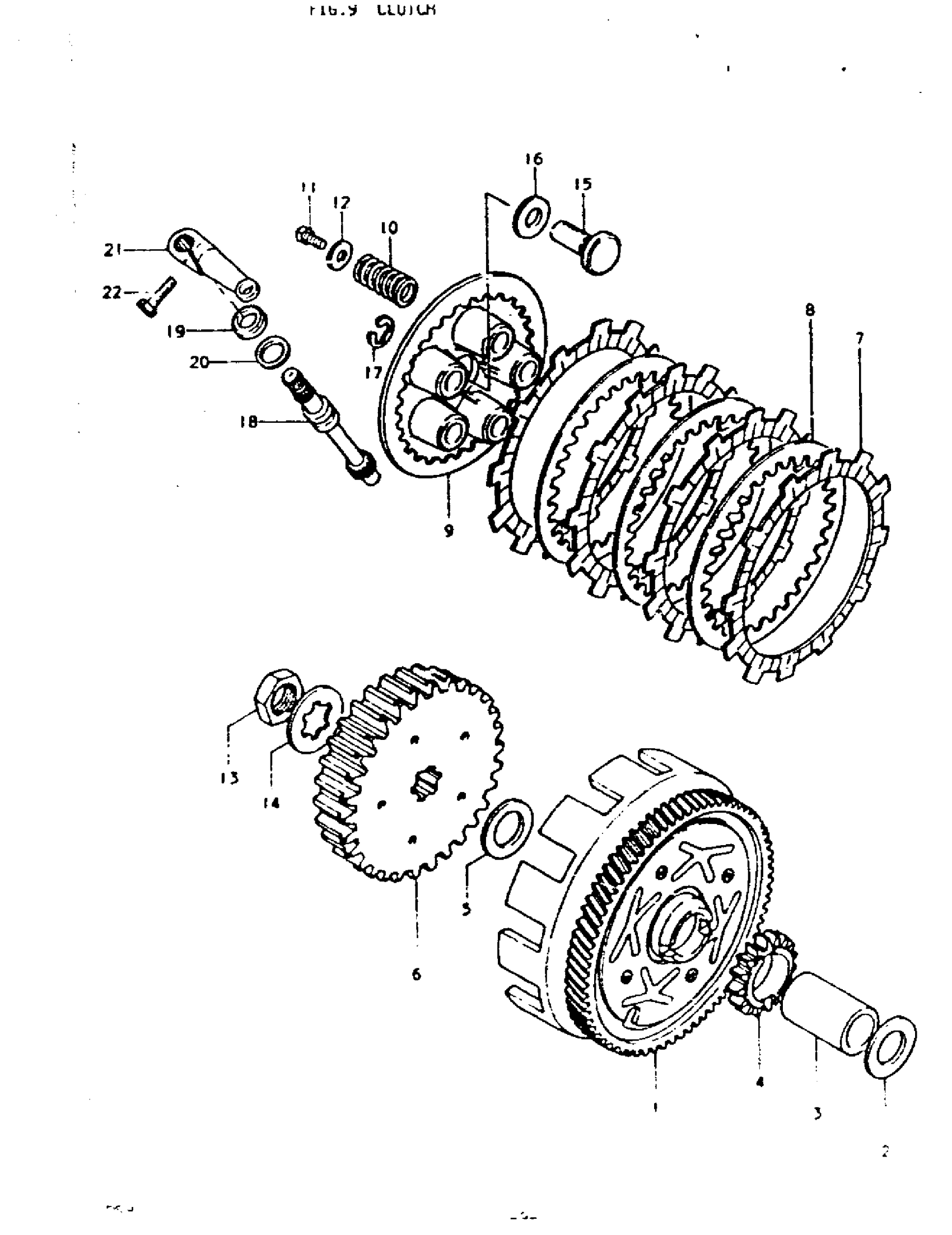

Suzuki DS80 (1979) CLUTCH Diagram
