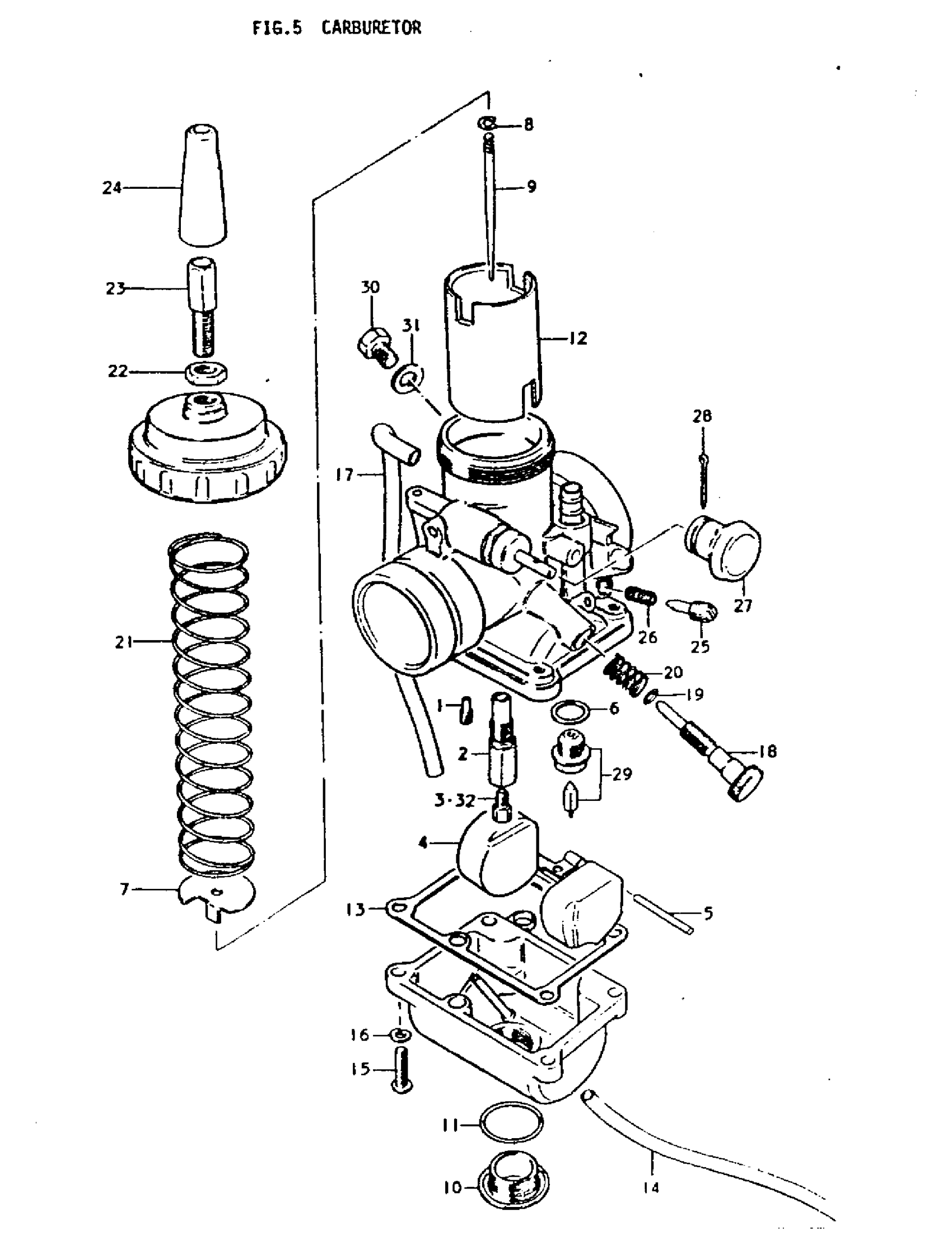

Suzuki DS80 (1979) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-46410

Unavailable

1

JET, PILOT | #22.5

09492-22005

Unavailable

2

JET, NEEDLE | 0-4

09494-00200

Unavailable

3

JET, MAIN | #65

09491-65002

Unavailable

4

FLOAT

13252-46410

Unavailable

5

.PIN, FLOAT

13254-01010

$3.62

6

GASKET, VALVE SEAT

13392-01010

$2.15

7

PLATE, THROTTLE VALVE

13581-09210

$6.55

8

CLIP, NEEDLE

13394-10010

$5.45

9

NEEDLE, JET | 4F22-4

13383-46410

Unavailable

10

PLUG, DRAIN

13247-32210

$15.23

11

O RING This part replaces 13294-40110.

09280-20003

$2.30

12

VALVE, THROTTLE | CA:1.5

13551-46410

Unavailable

13

GASKET, FLOAT CHAMBER

13251-46010

Unavailable

14

HOSE This part replaces 13684-30650.

13684-40A00

$9.58

15

SCREW This part replaces 02112-04168.

02112-0416A

$1.49

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

17

HOSE This part replaces 13684-30650.

13684-40A00

$9.58

18

ADJUSTER This part replaces 13267-46010.

13267-36A00

$12.40

19

O RING This part replaces 13294-30010.

13278-02340

$1.91

20

SPRING, THROTTLE STOP SCREW

13268-46010

$5.67

21

SPRING, THROTTLE VALVE RETURN

13573-36110

$6.20

22

NUT, CABLE ADJUSTER

13661-16600

$4.64

23

ADJUSTER, CABLE

13577-22600

$6.00

24

CAP

13681-33010

$9.32

25

SCREW, PILOT AIR

13269-95110

$13.35

26

SPRING This part replaces 13268-95110.

13268-35010

$4.48

27

HOLDER

13413-25710

Unavailable

28

PIN This part replaces 04111-16158.

04111-1620A

$1.49

29

VALVE ASSY, NEEDLE

13370-23010

$57.83

30

PLUG

13664-18654

$8.98

31

WASHER

13663-31010

$2.80

32

JET, MAIN | #55, OPT

09491-55002

Unavailable

32

JET, MAIN | #60, OPT

09491-60002

Unavailable

32

JET, MAIN | #70, OPT

09491-70002

Unavailable

32

JET, MAIN | #75, OPT

09491-75002

Unavailable

32

JET, MAIN (250) | #80, OPT This part replaces 09491-50003.

09491-50008

Unavailable
