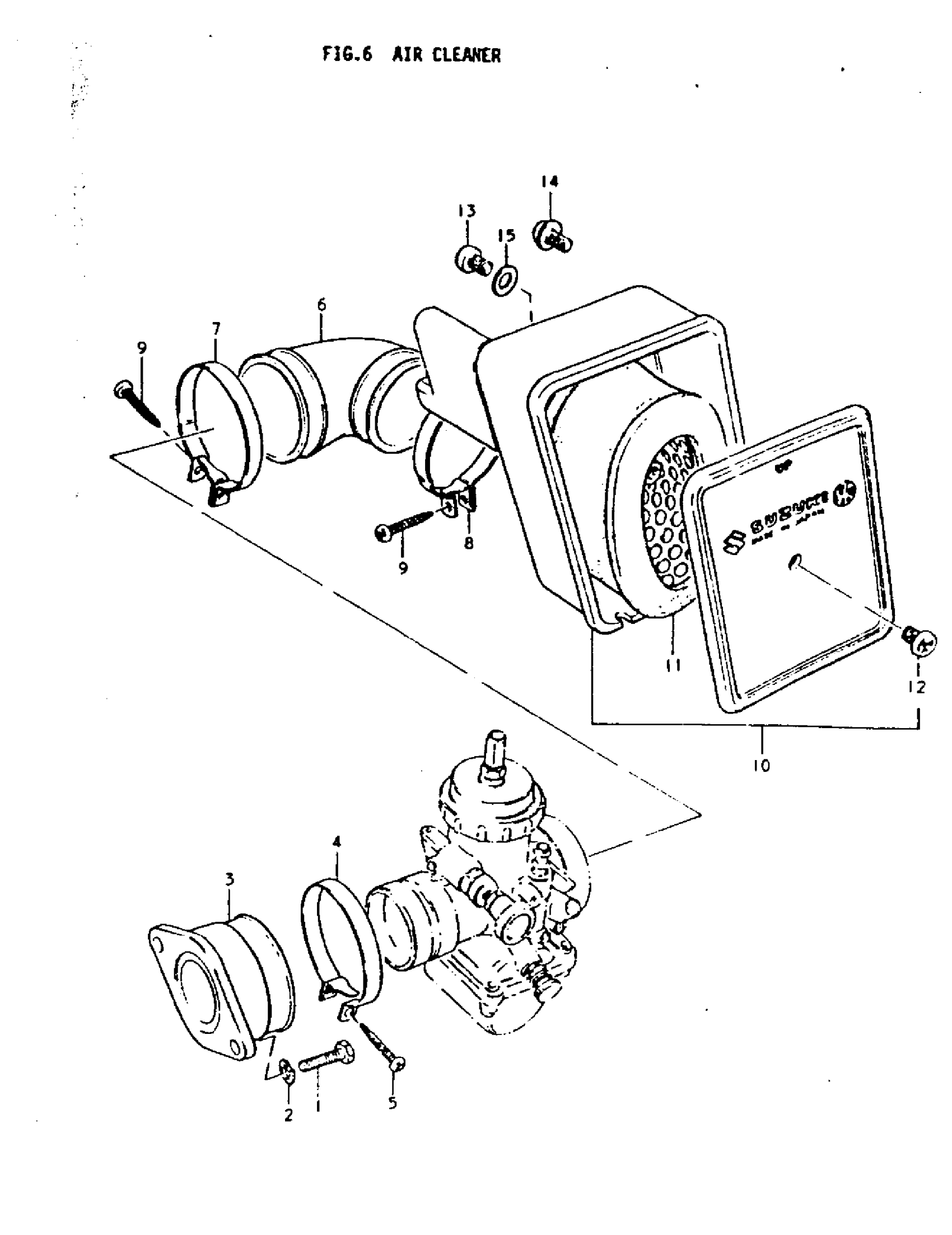

Suzuki DS80 (1979) AIR CLEANER Diagram

#

Description
Price

1

BOLT This part replaces 01107-06208.

01500-06207

$2.28

2

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

3

NO DESCRIPTION AVAILABLE This part replaces 13110-46000.

13110-46001

Unavailable

4

CLAMP This part replaces 09402-46306.

09402-46208

$4.64

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

HOSE, AIR INLET

13881-46400

Unavailable

7

CLAMP, NO.1

09402-50306

$4.77

8

CLAMP This part replaces 09402-42306.

09402-42303

$4.77

9

SCREW This part replaces 03211-04208.

03211-04207

$1.49

10

CLEANER ASSY, AIR This part replaces 13700-46420.

13700-46421

Unavailable

11

FILTER

13781-46120

Unavailable

12

SCREW This part replaces 02112-06108.

02112-06107

$1.49

13

SCREW This part replaces 02112-06108.

02112-06107

$1.49

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13
