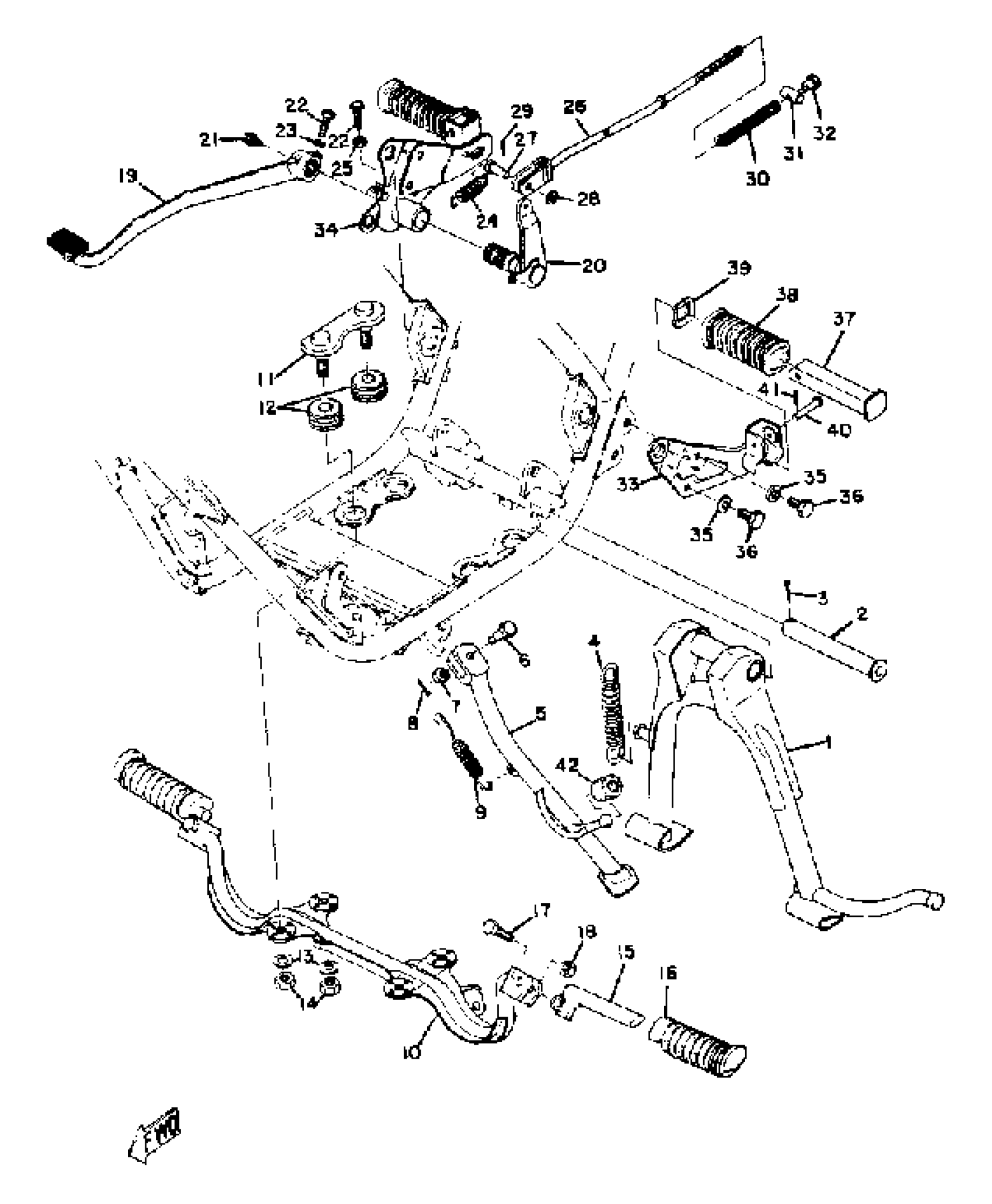

Yamaha DS7 (DS7) 1972 STAND - FOOT REST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, MAIN

(278-27111-00-00)

Unavailable

2

SHAFT, MAIN STAND

278-27112-00-00

Unavailable

3

PIN, COTTER

91490-30030-00

$8.49

4

SPRING, TENSION

90506-35058-00

Unavailable

5

STAND, SIDE

(278-27311-01-00)

Unavailable

6

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

7

NUT, CASTLE

95307-10900-00

Unavailable

8

PIN, COTTER

91490-20025-00

$1.99

9

SPRING, TENSION (1L9)

90506-26270-00

$15.99

10

BRACKET, FOOTREST 1

(278-27412-00-00)

Unavailable

11

BOLT, FOOTREST

(278-27416-00-00)

Unavailable

12

FOOTREST DAMP SET

(99999-00961-00)

Unavailable

12

FOOTREST DAMP SET

(99999-00961-00)

Unavailable

13

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

14

NUT(3BM)

95314-10600-00

$2.39

15

FOOTREST

(278-27451-00-00)

Unavailable

16

COVER, FOOT REST

156-27413-00-00

Unavailable

17

BOLT (157-27416-00)

90109-08376-00

Unavailable

18

. NUT

95380-08700-00

Unavailable

19

PEDAL, BRAKE

(278-27211-00-33)

Unavailable

20

SHAFT, BRAKE PEDAL

(1A0-27212-00-00)

Unavailable

21

NIPPLE, GREASE

93700-06M03-00

Unavailable

22

BOLT, HEXAGON

97017-06025-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

SPRING, TENSION

90506-20042-00

Unavailable

25

NUT(650)

95380-06700-00

Unavailable

26

ROD, BRAKE

276-27231-00-00

Unavailable

27

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

28

WASHER, PLATE (371)

90201-06431-00

Unavailable

29

PIN, COTTER

91490-25020-00

Unavailable

30

SPRING, (180-27236-00)

90501-10245-00

Unavailable

31

PIN 1562723700

90249-12008-00

Unavailable

32

NUT (25K)

90179-06411-00

Unavailable

33

STAY, MUFFLER 1

(278-21445-00-00)

Unavailable

34

STAY, MUFFLER 2

(360-21446-00-00)

Unavailable

35

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

36

BOLT, HEXAGON

97013-08020-00

Unavailable

37

. FOOTREST, REAR 1

168-27431-10-00

Unavailable

38

. COVER, RR FOOTREST

307-27433-00-00

Unavailable

39

. WASHER, SPEC''L SHAP (168-27437-10)

90209-18117-00

Unavailable

40

PIN, CLEVIS (2F9)

91701-06035-00

Unavailable

41

PIN, COTTER

91490-16020-00

Unavailable

42

STOPPER

278-27314-00-00

Unavailable
