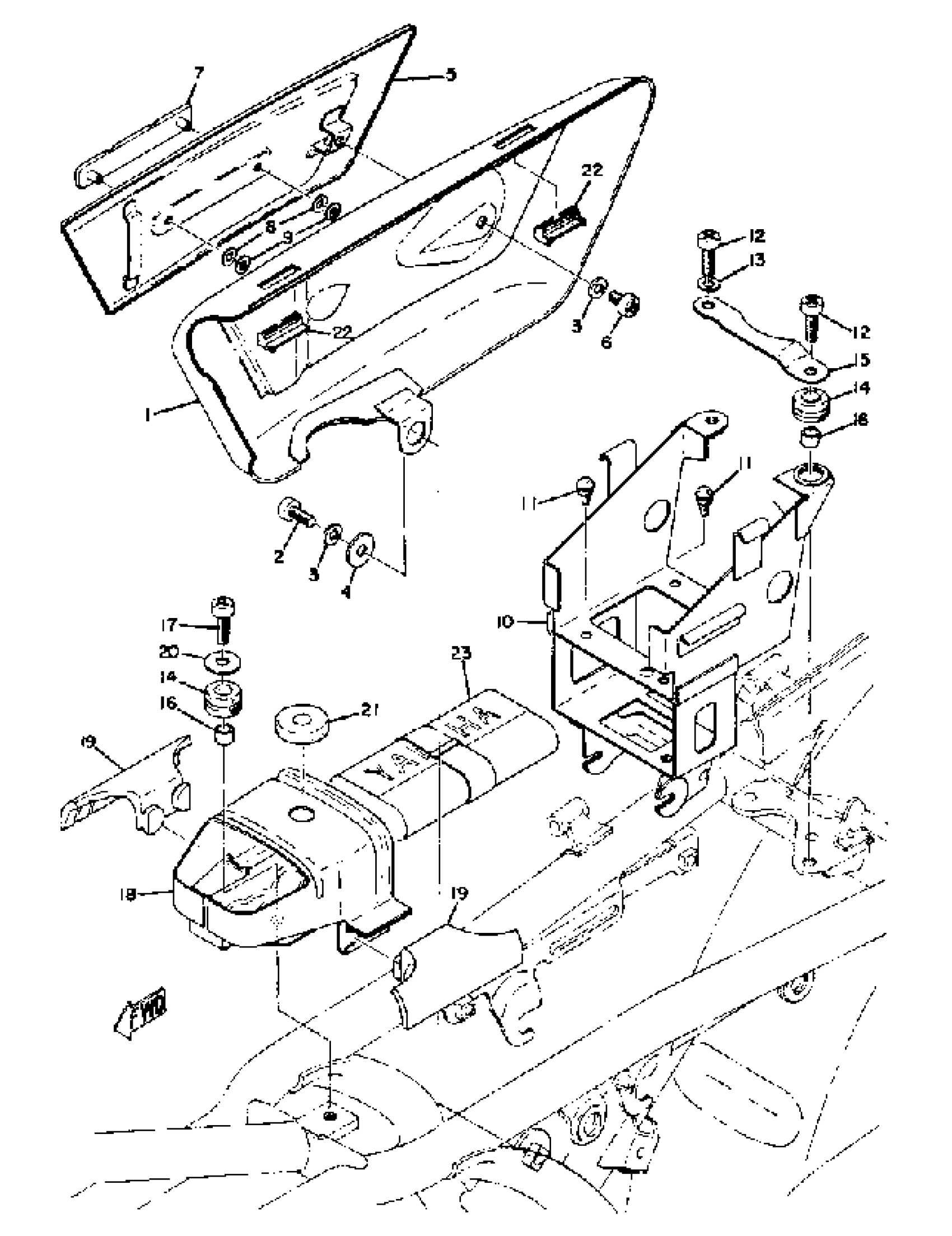

Yamaha DS7 (DS7) 1972 SIDE COVER - TOOL BOX - BATTERY BOX Diagram

#

Description
Price

1

COVER, SIDE 2

(278-21721-00-52)

Unavailable

2

SCREW PAN HEAD

98580-06020-00

$8.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

GRAPHIC

(278-21789-00-52)

Unavailable

6

SCREW PAN HEAD

98580-06010-00

$8.49

7

EMBLEM 6

(280-21786-02-52)

Unavailable

8

WASHER PLATE 174283160000

90202-04003-00

$8.49

9

NUT SPRING 116283170100

90183-04005-00

$10.49

10

BOX, BATT.

(278-21240-00-33)

Unavailable

11

DAMPER, SIDE COVER

141-21717-00-00

$7.99

12

SCREW PAN HEAD

98580-06020-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

GROMMET 839774310000

90480-14023-00

$7.49

15

HOLDER, BATT BOX

(278-21388-00-00)

Unavailable

16

COLLAR (J10)

90387-06026-00

Unavailable

17

SCREW PAN HEAD

98580-06020-00

$8.49

18

BOX, TOOL

(278-21170-00-33)

Unavailable

19

DAMPER

(278-21746-00-00)

Unavailable

20

WASHER, PLATE

90201-06380-00

$0.60

21

DAMPER

(296-23455-00-00)

Unavailable

22

TOOL KIT

1KT-W2810-01-00

Unavailable

22

DAMPER

278-21717-00-00

Unavailable
