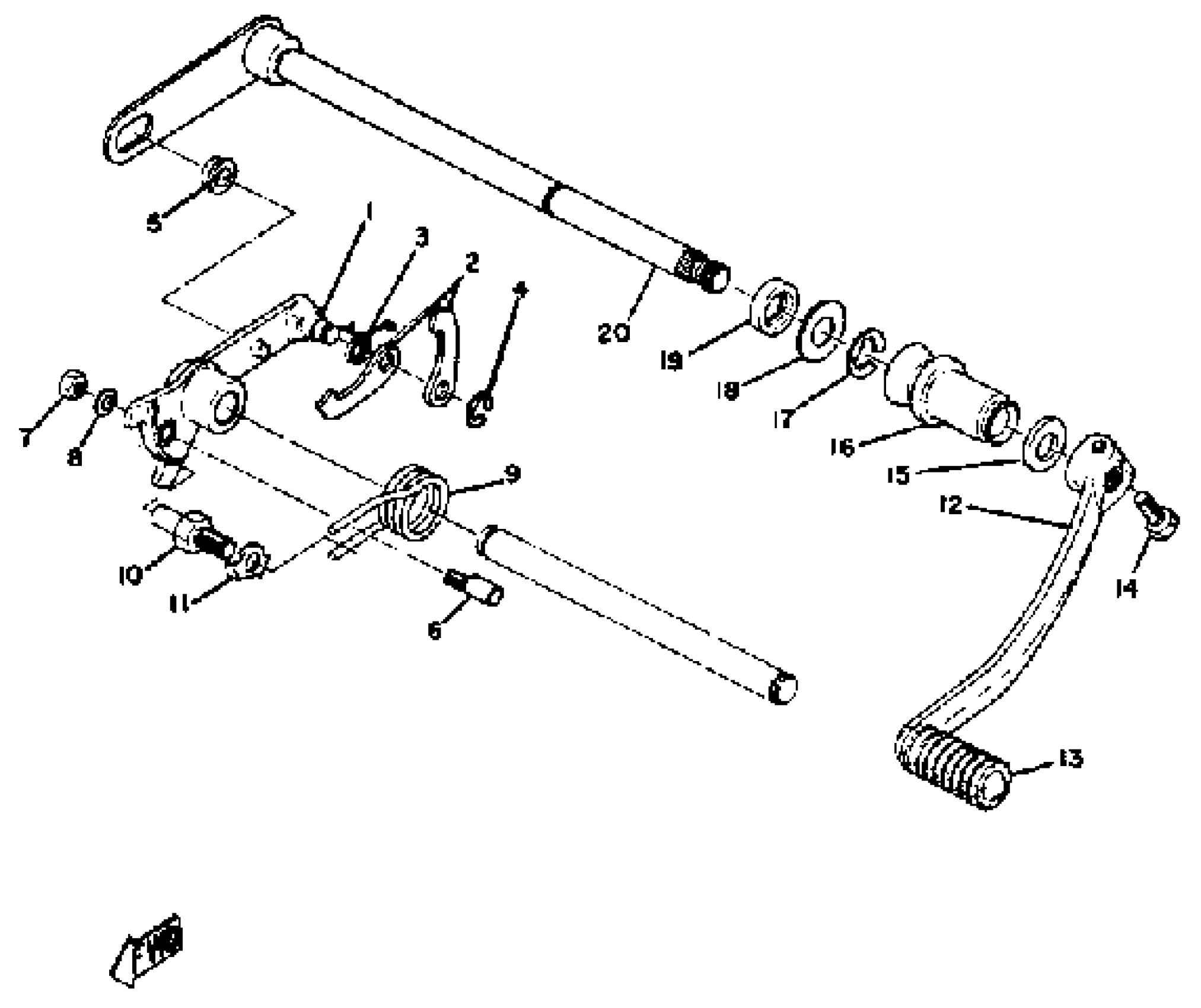

Yamaha DS7 (DS7) 1972 SHIFTER B Diagram

#

Description
Price

1

BRACKET

328-18128-00-00

Unavailable

2

LEVER, SHIFT 3

(278-18151-00-00)

Unavailable

3

SPRING, TORSION

90508-08007-00

Unavailable

4

CIRCLIP

99080-07600-00

Unavailable

5

ROLLER, SHIFT LEVER

214-18178-00-00

Unavailable

6

SCREW 214181860000

90149-06017-00

$7.49

7

NUT, HEXAGON

95380-06600-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

SPRING, TORSION

90508-32055-00

Unavailable

10

STOPPER, SCREW

278-18127-01-00

$17.49

11

WASHER

90215-08015-00

Unavailable

12

PEDAL, SHIFT

278-18111-00-93

Unavailable

13

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

14

BOLT, HEXAGON

97017-06020-00

$4.06

15

SEAL, CHANGE SHAFT

170-18132-00-00

Unavailable

16

BOOT, SEALING

278-18131-00-00

Unavailable

17

CIRCLIP

99006-10600-00

Unavailable

18

WASHER, PLATE (353)

90201-12575-00

Unavailable

19

SEAL, OIL (30X)

93102-12321-00

Unavailable

20

SHIFT SHAFT ASY.1

278-18101-01-00

Unavailable
