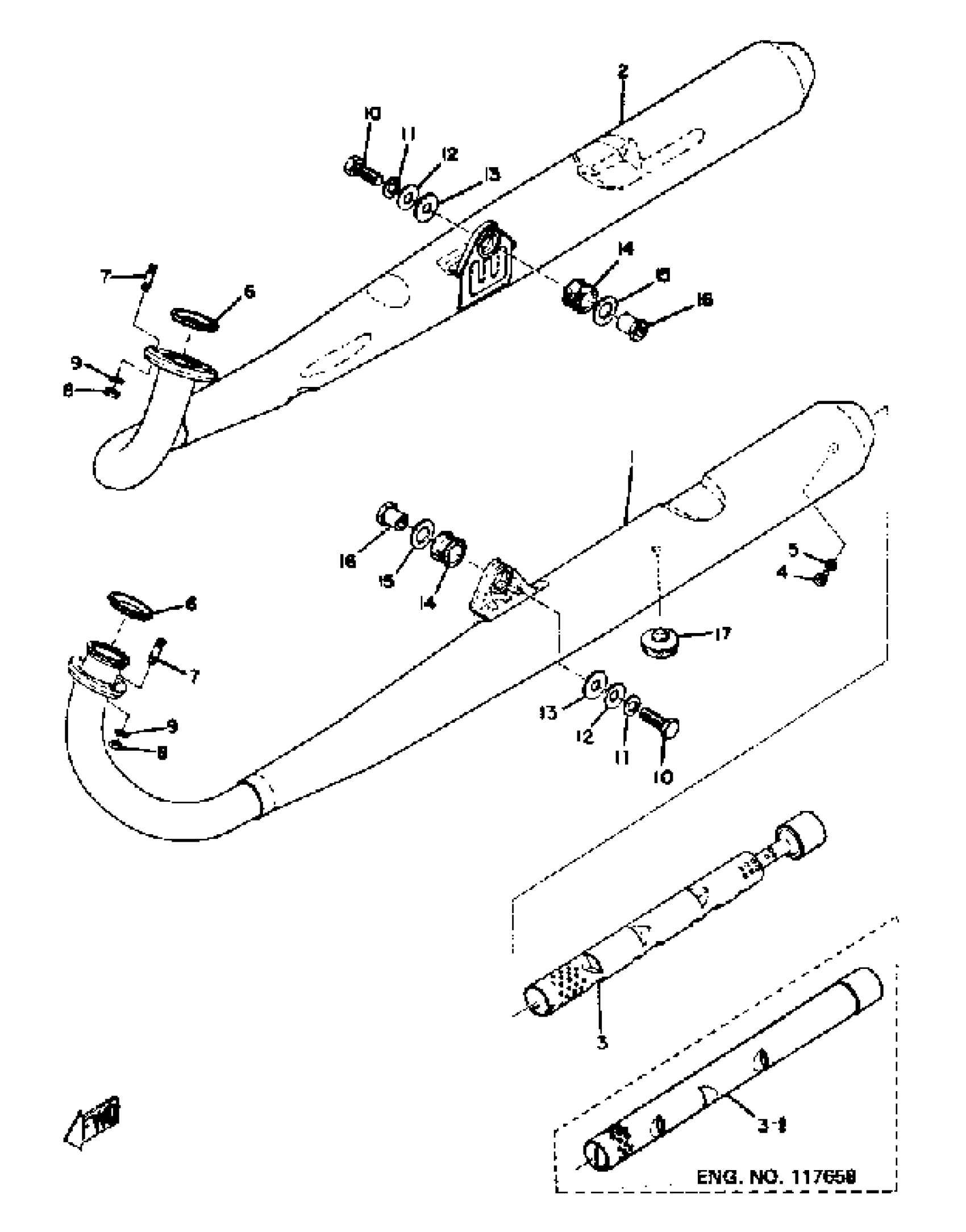

Yamaha DS7 (DS7) 1972 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L 001

(278-14610-01-00)

Unavailable

1

EXHAUST PIPE ASSEMBLY L

(278-14610-61-00)

Unavailable

2

EXHAUST PIPE ASSEMBLY R 001

(278-14620-51-00)

Unavailable

2

EXHAUST PIPE ASSEMBLY R

(278-14620-61-00)

Unavailable

3

. SILENCER, EXHAUST

278-14753-00-00

Unavailable

3

. SILENCER, EXHAUST 002

(278-14753-50-00)

Unavailable

4

SCREW PAN HEAD

98580-06010-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

7

BOLT, STUD (17W)

90116-08408-00

Unavailable

8

NUT(6L2)

95333-08600-00

$2.49

9

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

10

BOLT,FLANGE

95023-10035-00

Unavailable

11

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

12

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

13

WASHER, PLATE(3BM)

90201-105R9-00

Unavailable

14

DAMPER, REAR

168-21639-00-00

Unavailable

15

WASHER, PLATE

90201-15239-00

Unavailable

16

NUT, SPEC''L SHAPE

90179-10123-00

Unavailable

17

STOPPER MAIN STAND

278-27114-00-00

Unavailable
