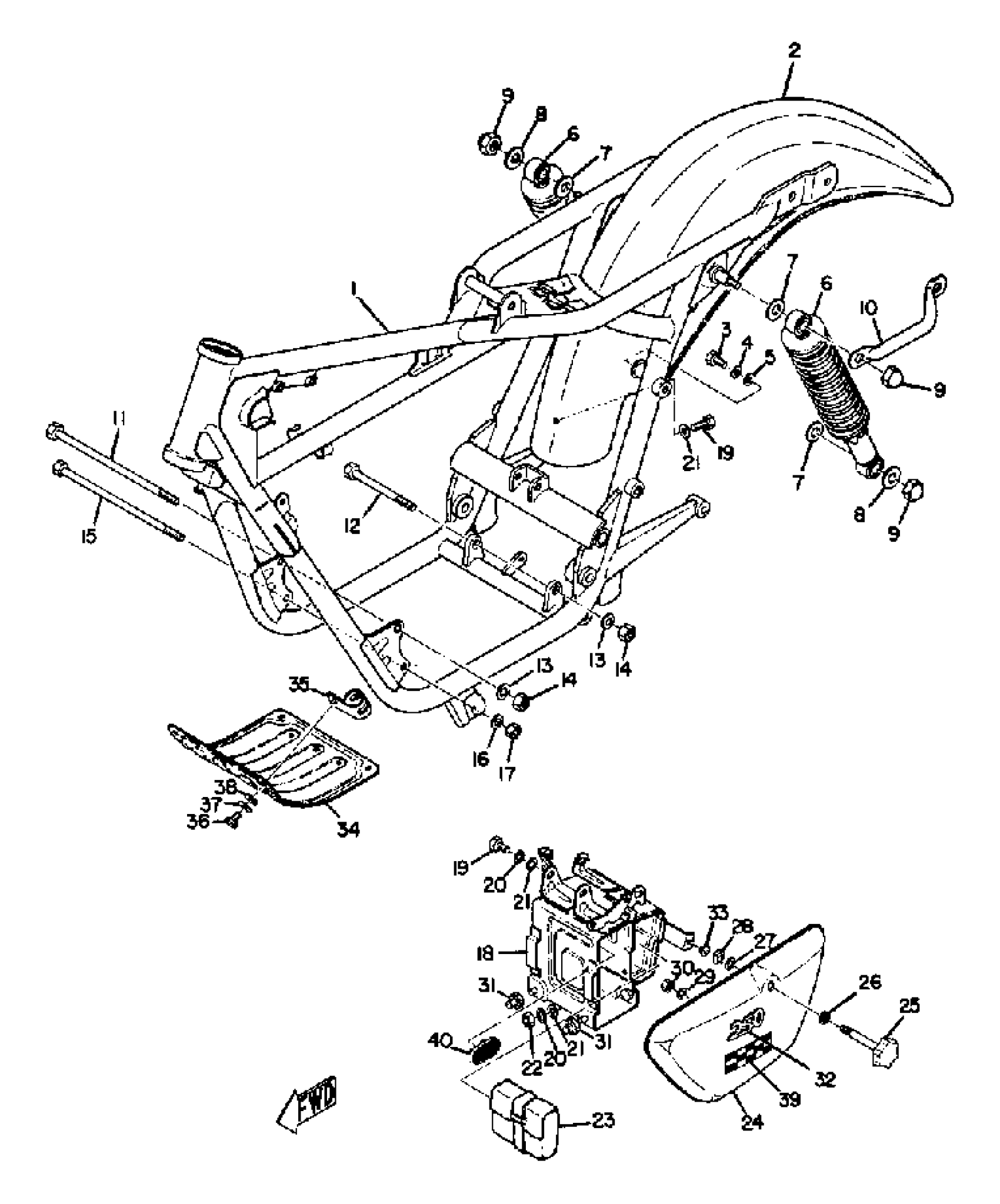

Yamaha DS6C (DS6C) 1969 FRAME, REAR CUSHION & REAR FENDER Diagram

#

Description
Price

1

FRAME

(246-21110-00-33)

Unavailable

1

FRAME

(247-21110-00-33)

Unavailable

2

FENDER, REAR

(170-21610-00-00)

Unavailable

3

BOLT, HEXAGON

97013-08016-00

$1.01

4

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

SHK/ABS ASSEMBLY, REAR

(156-22210-01-63)

Unavailable

6

SHK/ABS ASSEMBLY, REAR

(157-22210-20-00)

Unavailable

7

WASHER, PLATE (3X3)

90201-15797-00

$9.49

8

WASHER, PLATE(3BM)

90201-105R9-00

$9.49

9

NUT, CROWN (650)

95380-10800-00

Unavailable

10

HANDLE, STANDING

(168-21165-00-00)

Unavailable

11

BOLT

(90101-10085-00)

Unavailable

12

BOLT, WASHER BASED

90105-10227-00

Unavailable

13

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

14

NUT(3BM)

95314-10600-00

Unavailable

15

BOLT,WASHER BASED

90105-08033-00

Unavailable

15

BOLT, WASHER BASED

90105-08034-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

17

NUT(6L2)

95333-08600-00

Unavailable

18

BOX

(246-21170-00-33)

Unavailable

19

BOLT, HEXAGON

97013-08016-00

$1.01

20

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

21

WASHER, PLAIN

92990-08200-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable

23

TOOL KIT

(171-28100-01-00)

Unavailable

24

COVER, SIDE 1

(246-21711-00-04)

Unavailable

24

COVER, SIDE 1

(246-21711-00-05)

Unavailable

25

KNOB, SIDE COVER 1

(246-21714-00-00)

Unavailable

26

WASHER PLATE 122217250000

90202-07015-00

Unavailable

27

CLAMP, DAMPER

(156-21729-00-00)

Unavailable

28

NUT(650)

95380-06700-00

Unavailable

29

WASHER PLATE 174283160000

90202-04003-00

Unavailable

30

NUT SPRING 116283170100

90183-04005-00

Unavailable

31

BUSH, SPEC''L RUBBER

(90385-05017-00)

Unavailable

32

EMBLEM 6

(170-21786-00-00)

Unavailable

33

DAMPER, SIDE COVER

141-21717-00-00

Unavailable

34

PROTECTOR, ENGINE

(157-21471-00-33)

Unavailable

35

BRACKET, PROTC FRT

(247-21433-00-33)

Unavailable

36

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

37

WASHER, SPRING

92995-06100-00

Unavailable

38

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

39

EMBLEM 7

(193-21787-60-00)

Unavailable

40

PAD, BATTERY

(156-82121-00-00)

Unavailable
