CRANKSHAFT & PISTON

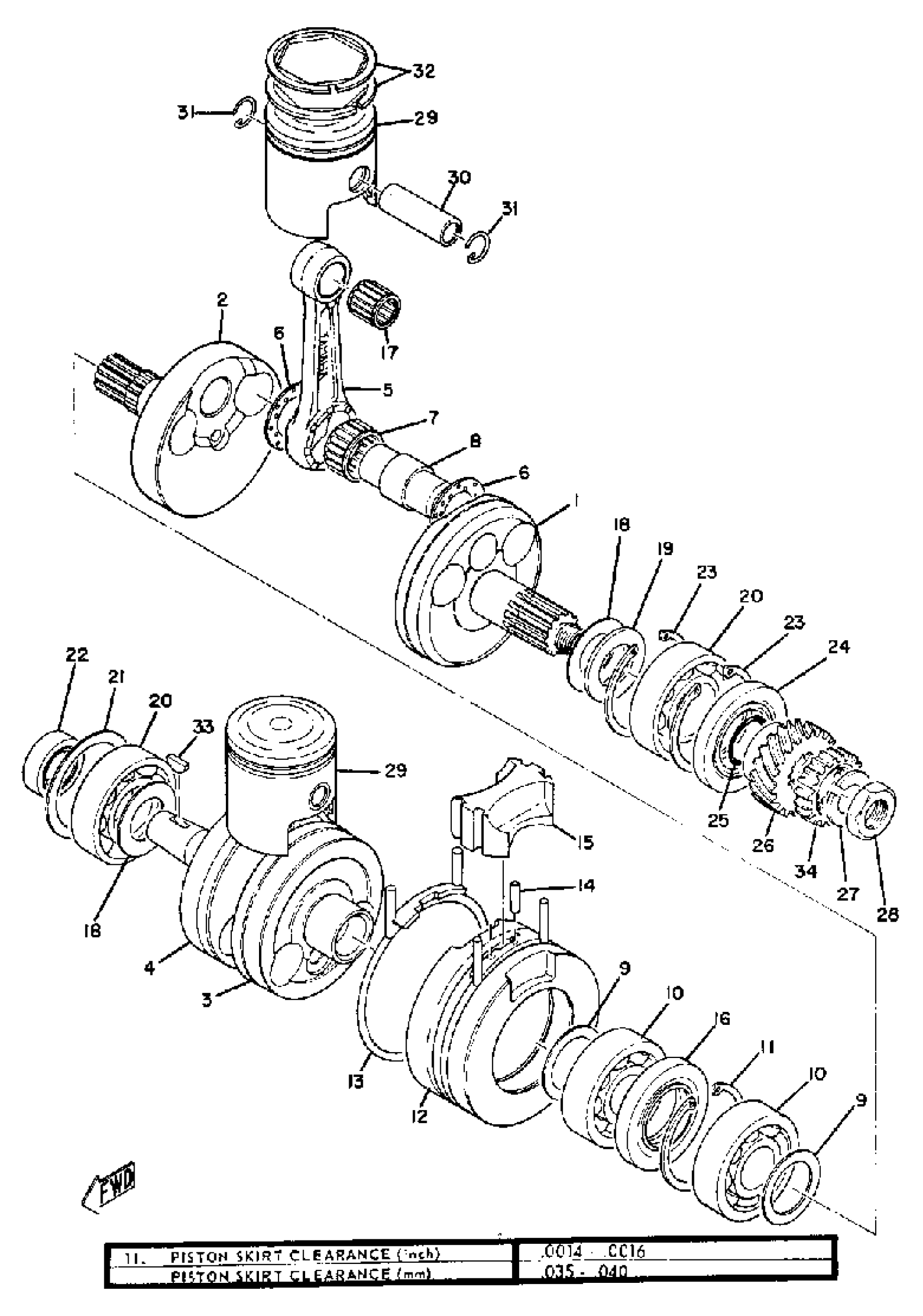

Yamaha DS6C (DS6C) 1969 CRANKSHAFT & PISTON Diagram
#
1
CRANK 1
(170-11412-00-00)
Unavailable
1
CRANKSHAFT ASSEMBLY
(246-11400-00-00)
Unavailable
2
CRANK 2
(156-11422-01-00)
Unavailable
3
CRANK 3
(156-11432-01-00)
Unavailable
4
CRANK 4
(170-11442-00-00)
Unavailable
5
ROD,CONNECTING
246-11651-00-00
Unavailable
7
BEARING, CYLINDER.#10
(93310-42435-00)
Unavailable
8
PIN, CRANK 1
(156-11681-00-00)
Unavailable
9
. SHIM, CRANK 4 (25-44-03)
156-11564-00-03
Unavailable
9
. SHIM, CRANK 4 (25-44-05)
156-11564-00-04
Unavailable
9
. SHIM, CRANK 4
156-11564-00-06
Unavailable
12
COVER, CRANK
(246-11511-00-00)
Unavailable
13
SEAL, CRANK COVER
(246-11512-00-00)
Unavailable
14
PIN, DOWEL(4SS)
93604-18251-00
Unavailable
15
METAL, FILLER
(246-11541-00-00)
Unavailable
16
SEAL, LABYRINTH 1
(145-11515-01-00)
Unavailable
17
BEARING, NEEDLE (24X)
93310-216L2-00
Unavailable
17
BEARING, NEEDLE (24X)
93310-216L2-00
Unavailable
18
SHIM, CRANK 2
(156-11562-00-04)
Unavailable
18
SHIM, CRANK 2
(156-11562-00-05)
Unavailable
18
SHIM, CRANK 2
(156-11562-00-07)
Unavailable
19
SHIM, CRANK 1
(156-11561-00-00)
Unavailable
20
BEARING (8R9)
93306-30536-00
Unavailable
21
SHIM,CRANK 3
156-11563-00-00
Unavailable
22
OIL SEAL (20X36X10-733)
93103-20110-00
Unavailable
24
OIL SEAL, SW-TYPE
(93103-35015-00)
Unavailable
25
O-RING (169)
93210-25071-00
Unavailable
26
GEAR, PRI DRIVE
(170-16111-00-00)
Unavailable
27
WASHER(JN5)
92907-16100-00
Unavailable
28
NUT
90170-16425-00
Unavailable
29
PISTON STD
248-11631-01-96
Unavailable
29
PISTON 1 O/S 0.25
(248-11635-01-00)
Unavailable
29
PISTON 2 O/S 0.50
(248-11636-01-00)
Unavailable
30
PIN, PISTON
137-11633-10-00
Unavailable
31
CIRCLIP (137-11634-00)
93450-17025-00
Unavailable
32
PISTON RING SETSTD
479-11601-00-00
Unavailable
32
PISTON RING SET (STD) 1STO/S
479-11601-10-00
Unavailable
32
PISTON RING SET2ND
479-11601-20-00
Unavailable
33
KEY,WOODRUFF
90280-04005-00
Unavailable
34
GEAR, DRIVE
(170-13188-00-00)
Unavailable
