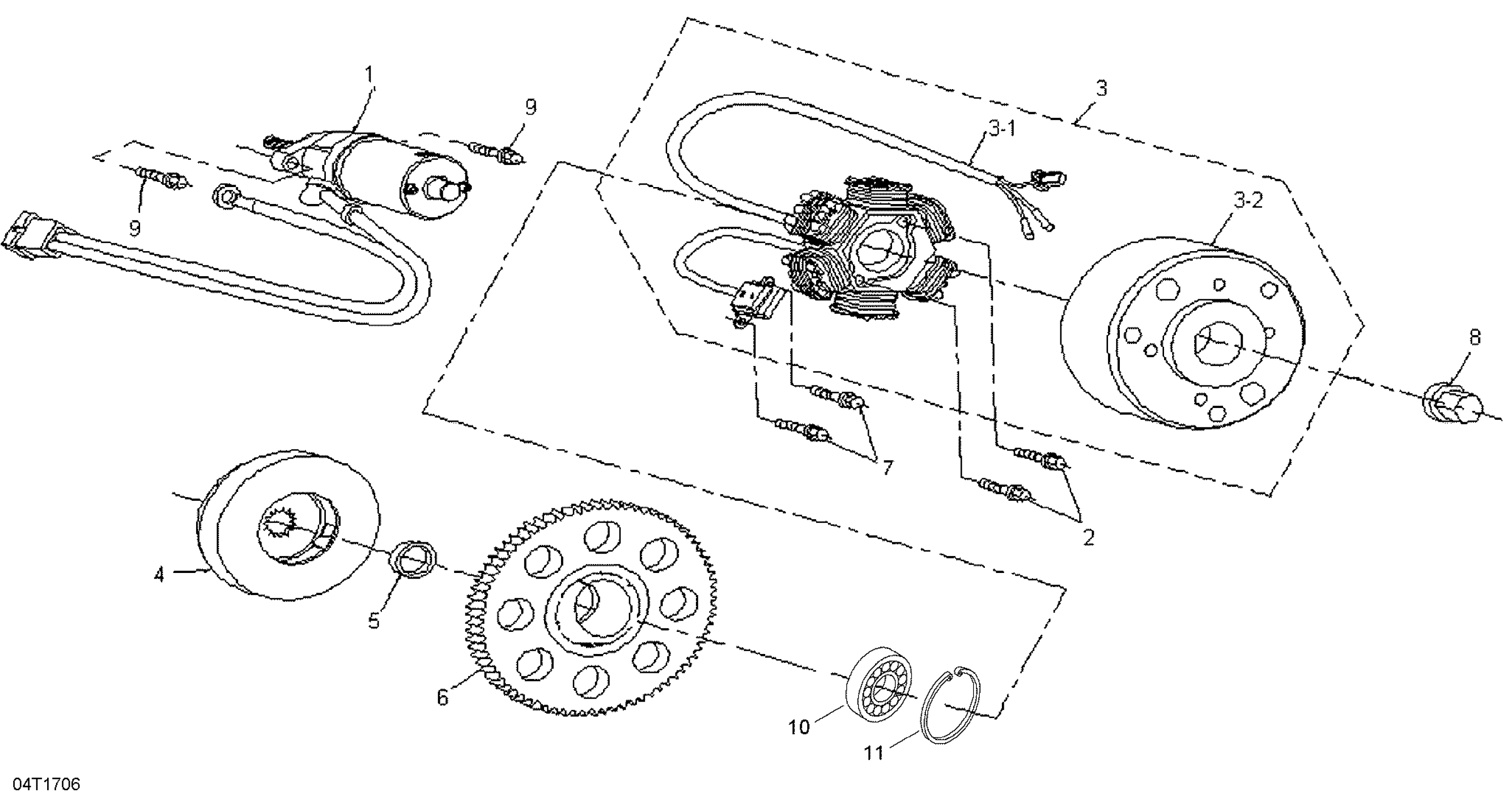

Can-Am DS 90 X, 2017 Magneto And Electric Starter Diagram

#

Description
Price

1

Starter

V31200DGF020LL

$127.99

2

Hexagonal Screw

V9200005010

$2.19

3

Generator Ass'y

V31100CJF010

$249.99

3-1

Not Available As Spare Parts

XXX

Unavailable

3-2

Not Available As Spare Parts

XXX

Unavailable

4

Starting Clutch Ass'y

V28410CJF000

$194.99

5

Collar

V28251CJF020

$14.49

6

Starting Gear

V28220CJF000

$179.99

7

Hexagonal Flange Screw

V9600106018

$3.29

8

Hex. Flange Nut With Serration M12

A9405012000

$6.67

9

Hex. Flange Screw M6 X 25

207662544

$0.64

10

Ball Bearing

V961006003ZZ

$42.49

11

Circlip

V9452035000

$12.18
