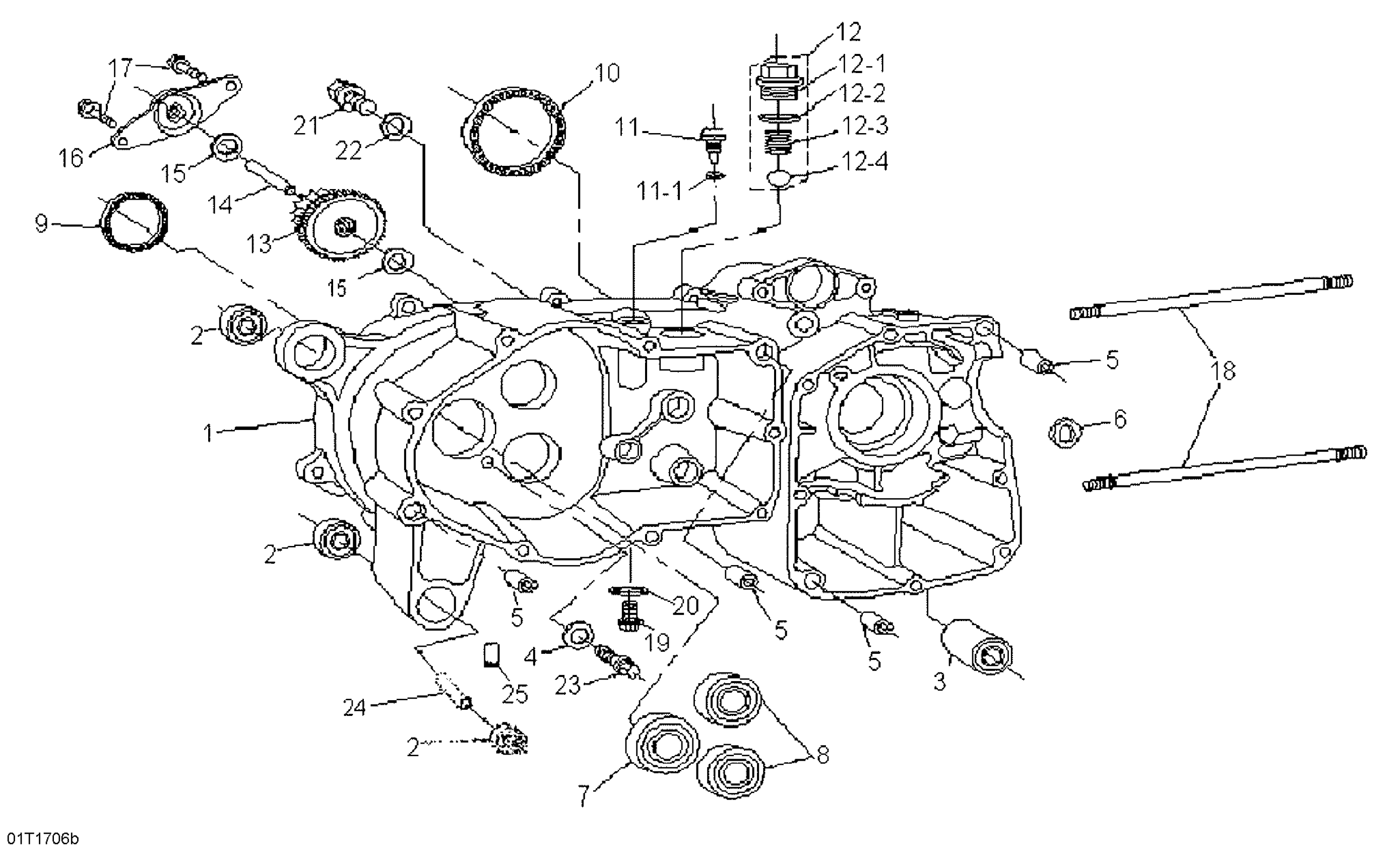

Can-Am DS 90 X, 2017 Crankcase, Left Diagram

#

Description
Price

1

LH Crankcase

V11200CJF040LL

$297.99

2

Rubber Bushing

V112034DM000

$10.49

3

Rubber Bushing

V11103CJF010

$14.81

4

Plain Washer, 6 X 18 X 1

A941010618010

$2.71

5

Dowel Pin

A9430110140

$4.23

6

O-Ring

V91302CJF020

$12.71

7

Radial Ball Bearing, 6003

A9610060030

$20.99

8

Ball Bearing

V961006201310

$19.99

9

Oil Seal

V912034DM000

$19.49

10

Oil Seal

V91202CJF000

$19.49

11

Oil Level Gauge

V156514DM00

$20.49

11-1

Not Available As Spare Parts

XXX

Unavailable

12

Gear Fixed Ass'y

V213154DM000

$28.99

12-1

Not Available As Spare Parts

XXX

Unavailable

12-2

Not Available As Spare Parts

XXX

Unavailable

12-3

Not Available As Spare Parts

XXX

Unavailable

12-4

Not Available As Spare Parts

XXX

Unavailable

13

Idle Gear Ass'y

V28100CJF000

$51.99

14

Shaft Idle Gear

V28102CJF000

$18.49

15

Washer Flat

V941011016010

$9.69

16

Plate Idle Gear

V28105CJF000

$18.49

17

Hex. Flange Screw M6 X 10 | Not Illustrated

A9600006010

$2.19

18

Stud Bolt DS70

V9100106196

$6.35

19

Hex. Flange Screw, Magnetic

V928000801212M

$14.81

20

Washer Plain

A941040816020

$2.68

21

Hexagonal Flange Bolt

V9602812016LL

$6.95

22

Flat Washer

V941011220020

$9.69

23

Hex. Flange Screw

V9600006008

$6.95

24

Spacer

V44135CJF000

$20.99

25

Drain Tube

V17687DGF000

$4.44
