09- Frame

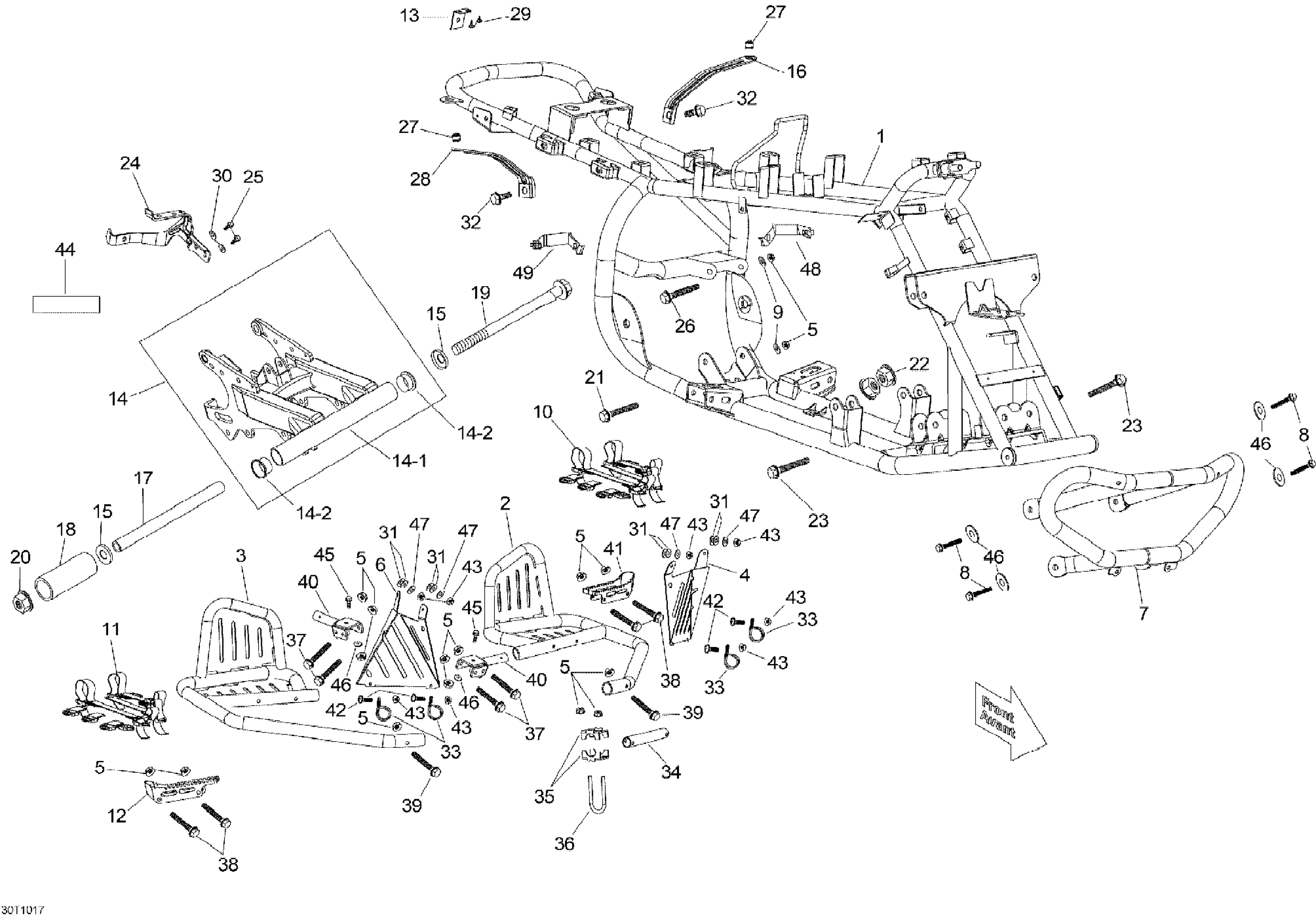

Can-Am DS 90 X, 2010 09- Frame Diagram
#
1
Frame
V50100DGF05H
Unavailable
2
LH Bar
V50099DGF10HLL
Unavailable
3
DH Bar
V50107DGF10HLL
Unavailable
4
LH Foot Protector
V50108DGF04HLL
Unavailable
5
Hex. Elastic Stop Nut M8
232581414
Unavailable
6
RH Foot Protector
V50109DGF03HLL
Unavailable
7
Front Bumper
V50270DGF07H
Unavailable
8
Hex. Flange Screw
V9600008014
Unavailable
9
Lock Washer 8 mm, Stainless
234181601
Unavailable
10
LH Net
V70002DGF10HLL
Unavailable
11
RH Net
V70001DGF10HLL
Unavailable
12
Footrest
V50112DGF04HLL
Unavailable
13
Reflector Bracket
V50266DGF020
Unavailable
14
Swing Arm
V52370DGF16H
Unavailable
14-1
Not Available As Spare Parts
XXX
Unavailable
14-2
Bushing
V22135MAA000
Unavailable
15
Swing Arm Seal Cover
V11400MAA000
Unavailable
16
LH Upper Fixed Plate
V50260DGF050BK
Unavailable
17
Swing Arm Spacer
V44170MAA000
Unavailable
18
Rubber Sleeve
V53436MAA020LL
Unavailable
19
Hex. Flange Bolt
V9600014290010LL
Unavailable
20
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232571414
Unavailable
21
Hex. Flange Screw
V9600008100
Unavailable
22
Elastic Flange Nut M10
232501416
Unavailable
23
Hex. Flange Screw M10 X 55
207605544
Unavailable
24
Chain Cover Braket
V50268DGF040
Unavailable
25
Hex. Flange Screw M6 X 12
207661244
Unavailable
26
Hex. Flange Screw
V9600108125
Unavailable
27
Rubber Cushion
V85278DGF020LL
Unavailable
28
RH Upper Fixed Plate
V50261DGF050BK
Unavailable
29
Tapping Screw
V9309304012LL
Unavailable
30
Lock Washer Helical M6
234161601
Unavailable
31
Rubber Cushion | Black Model
V15235DGF030
Unavailable
32
Hex. Flange Screw
207681244
Unavailable
33
Clip
V50110DGF05HLL
Unavailable
34
Connector
V50103DGF01H
Unavailable
35
Clip
V50106DGF02H
Unavailable
36
U-Bolt
V50105DGF02H
Unavailable
37
Hex. Flange Bolt M8 X 68
V9600008068
Unavailable
38
Hex. Flange Screw M8 X 45
207684544
Unavailable
39
Hex. Flange Screw M8 X 40
207684044
Unavailable
40
Support
V50118DGF05H
Unavailable
41
Footrest
V50127DGF02HLL
Unavailable
42
Round Head Screw
V930000601501LL
Unavailable
43
Elastic Stop Nut M6
232561414
Unavailable
44
Drive Chain Label
V87606DGF00HLL
Unavailable
45
Hex. Flange Screw M8 X 20
207682044
Unavailable
46
Washer
V941010816015LL
Unavailable
47
Washer
V9410106220100
Unavailable
48
LH Support Fender
V50267DGF01H
Unavailable
49
RH Support Fender
V50275DGF01H
Unavailable
