Description

Price

1

HANDLE BAR - Call your local BRP dealership

V53100DGF06H

Unavailable

2

LH Brake Lever

V53178DGF03HLL

Unavailable

3

RH Brake Lever

V53179DGF02HLL

Unavailable

4

Multi-Fonction Switch

V35160DGF04HLL

Unavailable

5

LH Upper Handle Bar Clamp

V53170MAA020BKLL

Unavailable

6

RH Upper Handle Bar Clamp

V53175MAA020BKLL

Unavailable

7

Lower Handle Bar Clamp

V45517DGF04H

Unavailable

8

Hexagonal Bolt M6 X 25

V9100006025LL

Unavailable

9

Elastic Flange Nut M10

232501416

Unavailable

10

Choke Cable

V43316DGF060LL

Unavailable

11

Throttle Cable

V17910DGF03H

Unavailable

12

Handle Grip

V53140DGF000BK

Unavailable

13

Housing Throttle Ass.

V53177CEK010BKLL

Unavailable

14

Support

V50223DGF03H

Unavailable

15

Tether Cord

V35110DGF00H

Unavailable

16

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

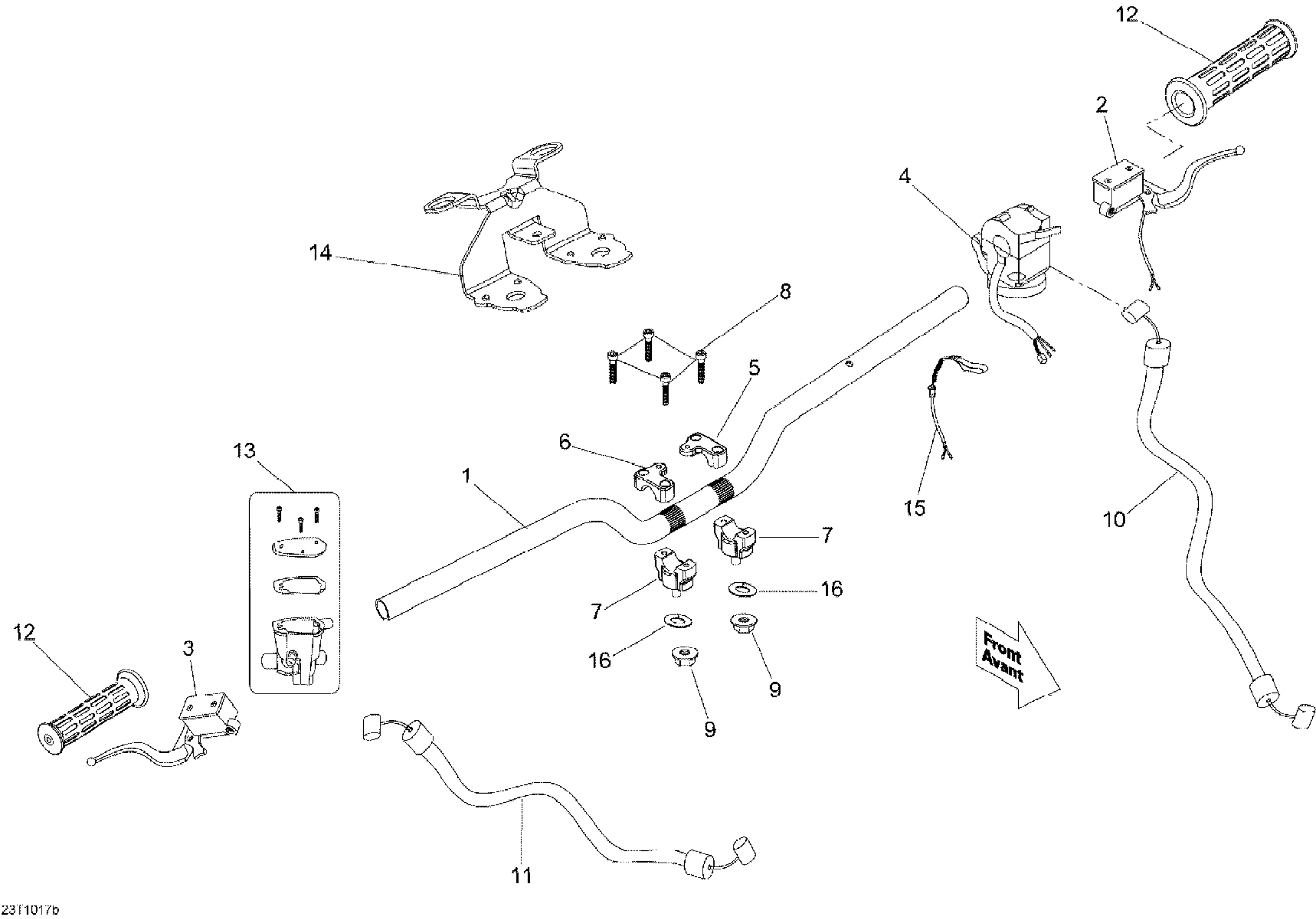

Can-Am DS 90 X, 2010 07- Handlebar Diagram

HANDLE BAR - Call your local BRP dealership

LH Brake Lever

RH Brake Lever

Multi-Fonction Switch

LH Upper Handle Bar Clamp

RH Upper Handle Bar Clamp

Lower Handle Bar Clamp

Hexagonal Bolt M6 X 25

Elastic Flange Nut M10

Choke Cable

Throttle Cable

Handle Grip

Housing Throttle Ass.

Support

Tether Cord

Helicoidal Lock Washer M10 | XT Models
