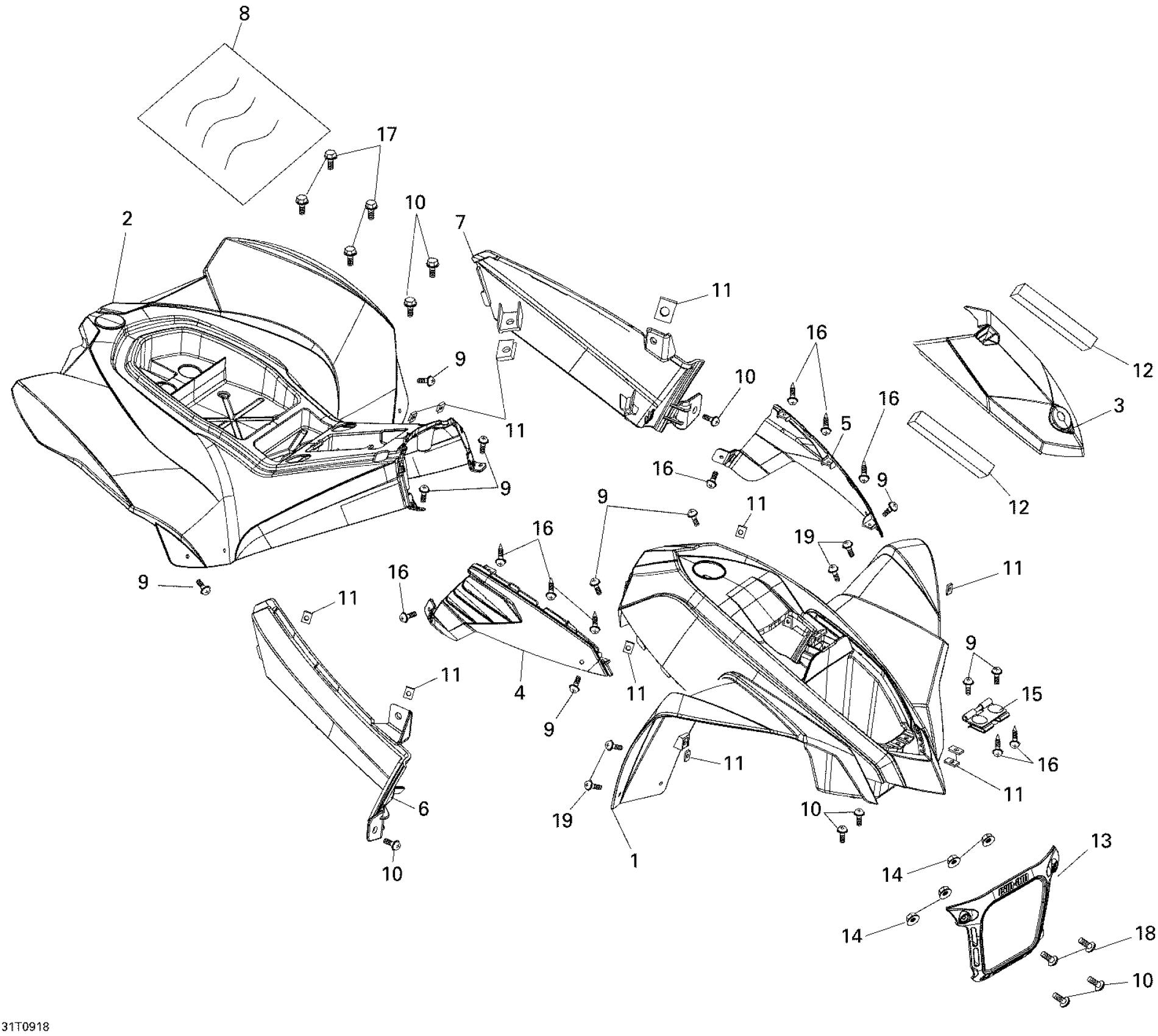

Can-Am DS 90 X, 2009 09- Body And Accessories INT Diagram

#

Description

Price

1

Black Front Fender Ass'Y

V83005DGF000

Unavailable

2

Rear Fender, Black

V83102DGF01H

Unavailable

3

Cargo Cover

V82103DGF00HLL

Unavailable

4

RH Front Side Panel

V80104DGF010BK

Unavailable

5

LH Front Side Panel

V80105DGF010BK

Unavailable

6

RH Rear Side Panel

V80116DGF000BKLL

Unavailable

7

LH Rear Side Panel

V80117DGF000BKLL

Unavailable

8

Heat Insulation Sheet

V18450DGF000LL

Unavailable

9

Round Head Screw

V930000601201LL

Unavailable

10

Round Head Screw

V930000601501LL

Unavailable

11

Spring Nut

V9034506000KLL

Unavailable

12

Waterproof Strip

V81146DGF020

Unavailable

13

SKID PLATE, YELLOW - Call your local BRP dealership

V82113DGF01H

Unavailable

14

Lock Nut

V9035006000

Unavailable

15

Cargo Cover Hinge

V50262DGF030LL

Unavailable

16

Tapping Screw

V9309304012LL

Unavailable

17

Hex. Flange Screw M6 X 12

207661244

Unavailable

18

Round Haed Bolt M6 X 35

V9300006035

Unavailable

19

Round Head Bolt M6 X 20

V9300006020

Unavailable
