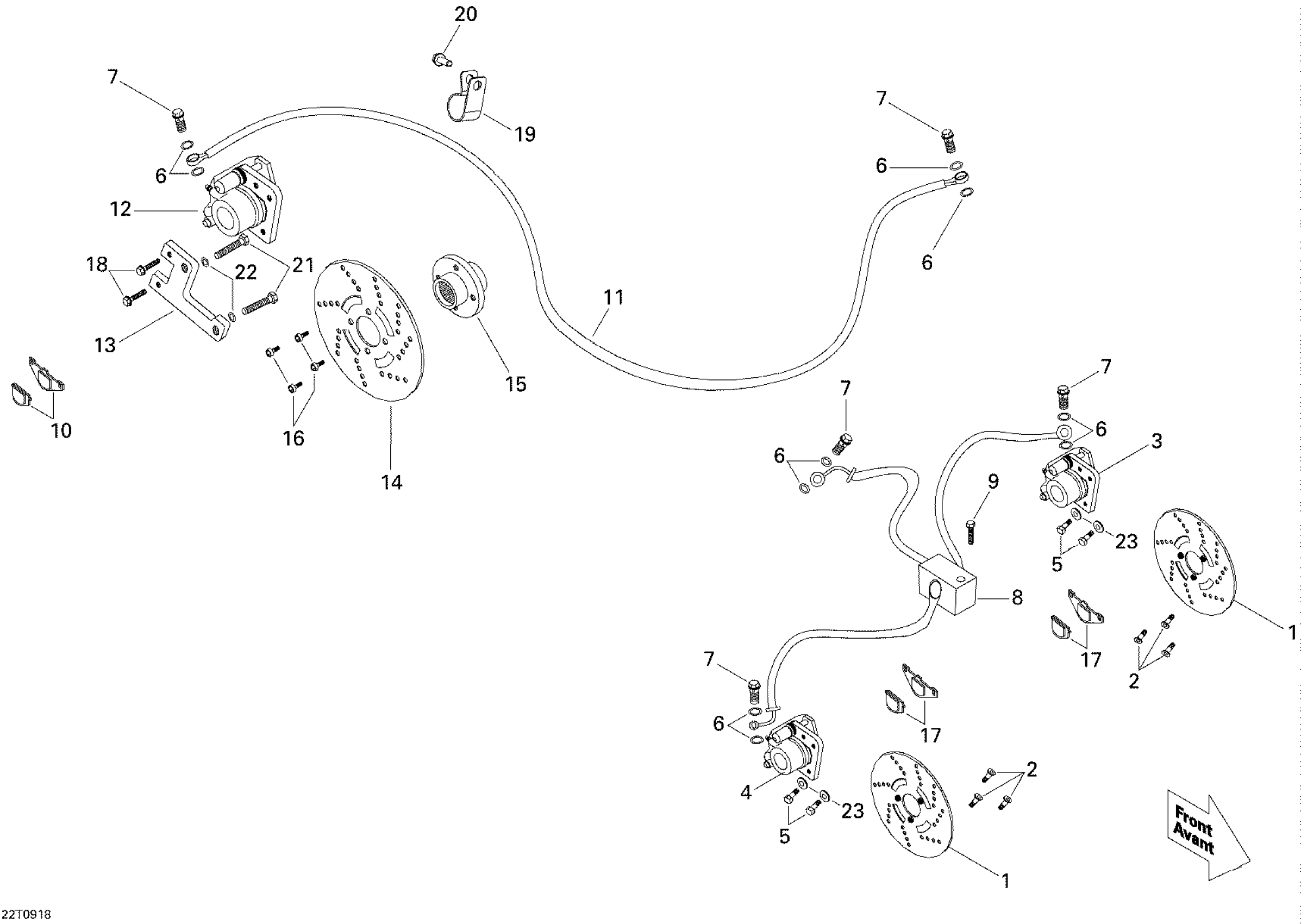

Can-Am DS 90 X, 2009 Brakes Diagram

#

Description
Price

1

Front Brake Disk

V45111CEK000LL

$110.42

2

Front Brake Disc Bolt

V9010508024

$9.25

3

LH Front Caliper

V45222DGF01HLL

$182.06

4

RH Front Caliper

V45221DGF01HLL

$182.06

5

Hex. Flange Screw M8 X 20

207682044

$1.06

6

Washer

V46964MAC000

$7.21

7

Bolt

V46963MAC020LL

$8.42

8

3 Way Brake

V46966DGF11HLL

$158.93

9

Hex. Flange Screw M6 X 25

207662544

$0.61

10

Brake Pad Kit

V45151DGF00HBKLL

$35.04

11

Boyau*Brake Hose

V46964DGF04HLL

$101.46

12

Rear Caliper

V45200MAC000LL

$231.31

13

Rear Caliper Bracket

V50295MAC020

$29.82

14

Rear Brake Disc

V45121MAC000

$123.85

15

Rear Brake Disc Bracket

V45122MAC000

Unavailable

16

Hexagonal Socket Bolt

A9100006012K

$0.67

17

Brake Pad Kit

V45151DGF00HBKLL

$35.04

18

Hex. Flange Screw M8 X 25

207682534

$1.03

19

Clip

V50126DGF00H

$11.33

20

Hex. Flange Screw M6 X 12

207661244

$1.96

21

Hex. Screw

V9200012050

$6.73

22

Spring Washer

V9411112000

$2.03

23

Washer

V941010816015LL

$4.09
