Description

Price

1

Shift Plate

V72101DGF070

$54.99

2

Cotter Pin

V9420130032LL

$6.67

3

Pin

V50226MAF040

$9.69

4

PAN HEAD PHILLIPS BOLT M5 X 15 - Call your local BRP dealership

V9350005015

Unavailable

5

Switch

V35152DGF060

$80.49

6

Hex. Flange Screw M6 X 16

207661644

$0.74

7

Support Shifter

V72315MAD040

$22.99

8

Shifter

V72314DGF050LL

$22.49

9

Handle

V72201CEK040LL

$13.75

10

Spring

V54294MAF030LL

$14.49

11

Hex. Flange Screw M6 X 20

207662044

$2.00

12

Washer

V941010816015LL

$4.14

13

Lock Washer Helical M6

234161601

$1.15

14

Socket Head Screw

V9105005006

$3.29

15

Nut M5

V17711PSB798

$8.32

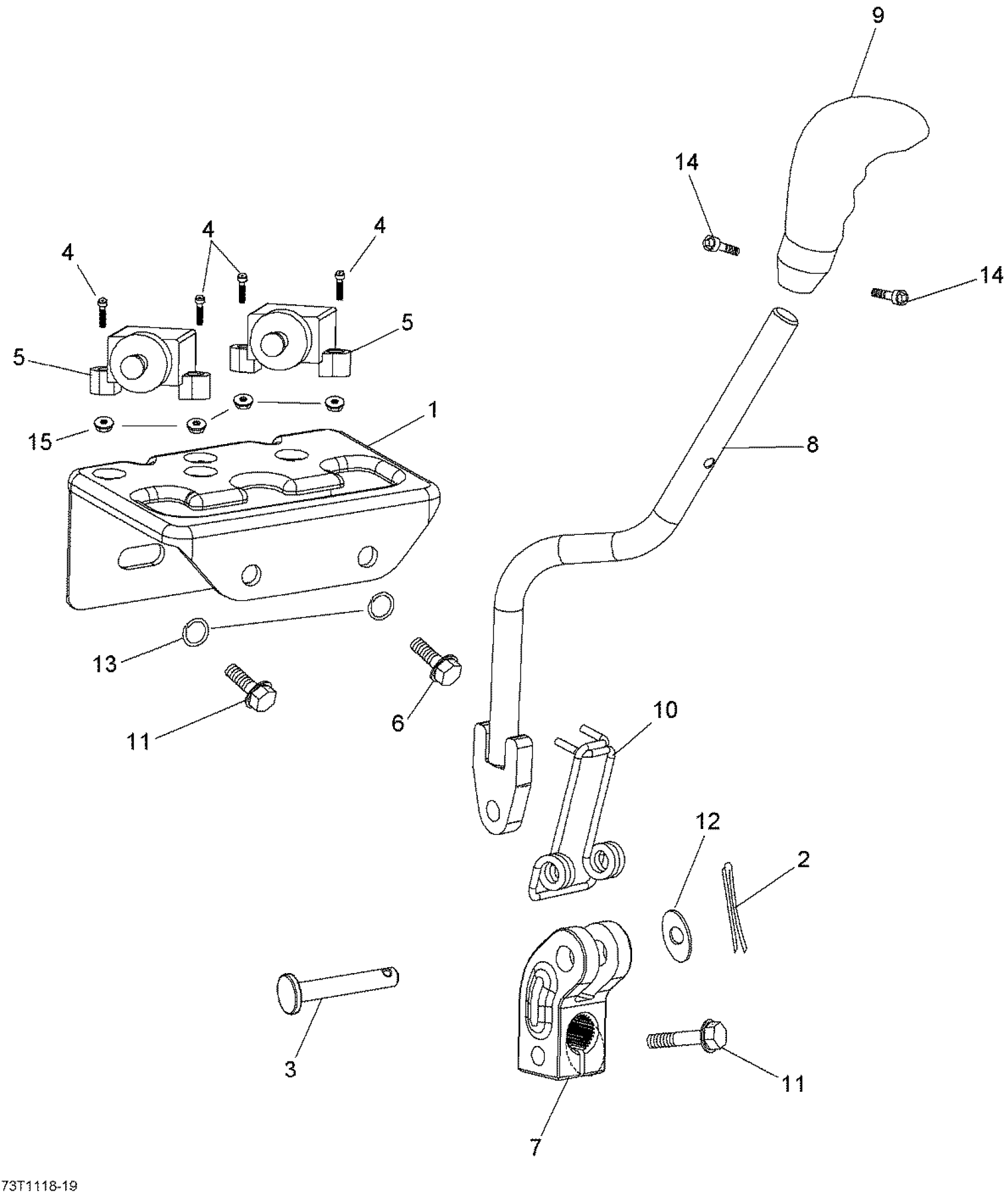

Can-Am DS 90, 2011 Shift Lever Diagram
