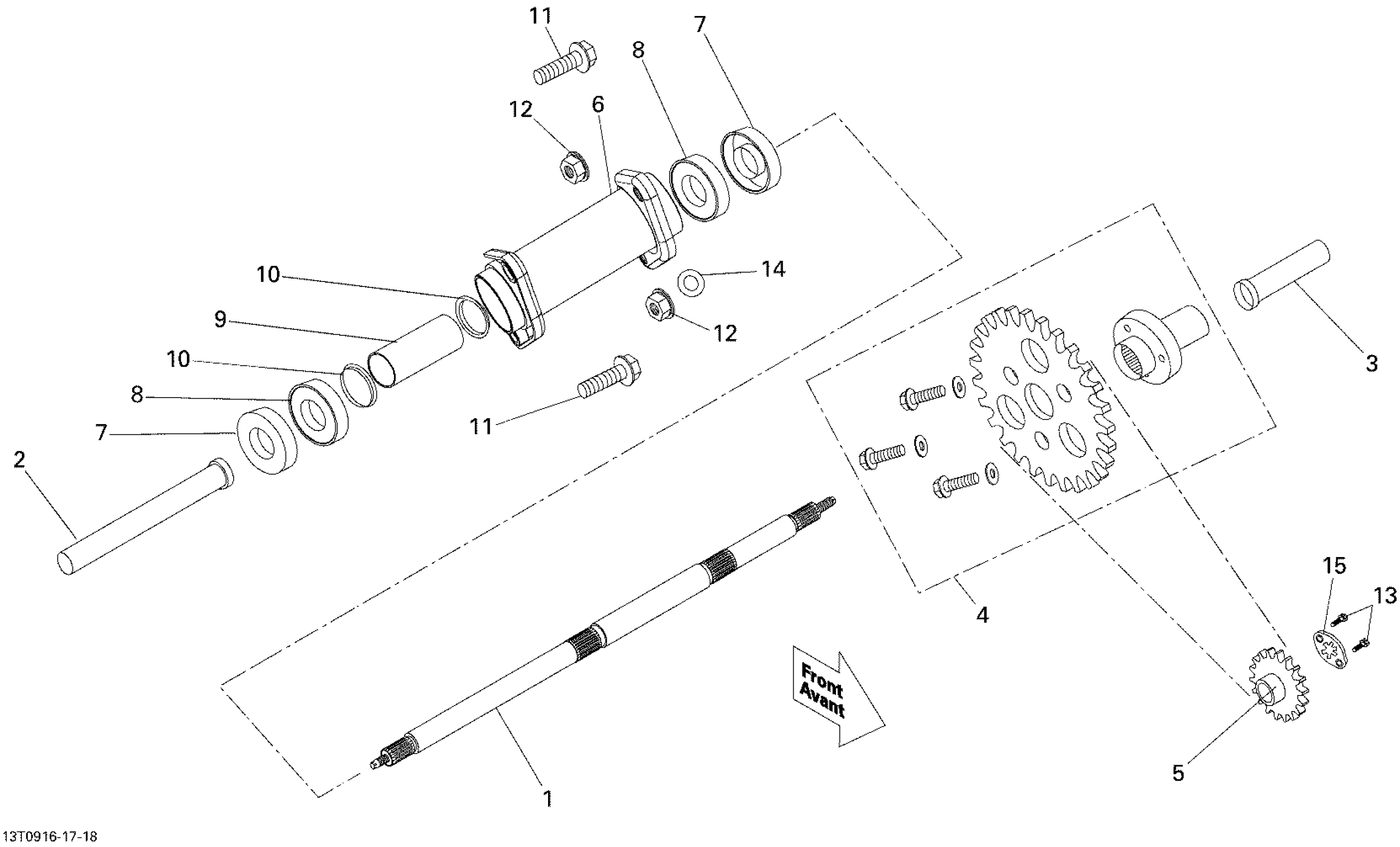

Can-Am DS 90, 2009 08- Drive System, Rear Diagram

#

Description

Price

1

Rear Wheel Axle

V23511MAA020

Unavailable

2

RH Spacer Collar

V44150MAA010BK

Unavailable

3

LH Spacer Collar

V44160MAA020BK

Unavailable

4

Cam Chain Sprocket 40T

V15239DGF00HLL

Unavailable

5

Cam Chain Sprocket 16T

V15237DGF010

Unavailable

6

Rear Wheel Axle Seat Ass'y

V52350MAA100BK

Unavailable

7

Oil Seal

V91203MAA000

Unavailable

8

Radial Ball Bearing

V961006006ZZ

Unavailable

9

Spacer

V44620MAA000

Unavailable

10

Spacer

V51312MAA010

Unavailable

11

Hex. Flange Bolt

V960001202801LL

Unavailable

12

Hexagonal Nut M12

A9035012000G

Unavailable

13

Screw

V9200006010

Unavailable

14

Washer

V941011326020

Unavailable

15

Fixing Plate

V128114DM00

Unavailable
