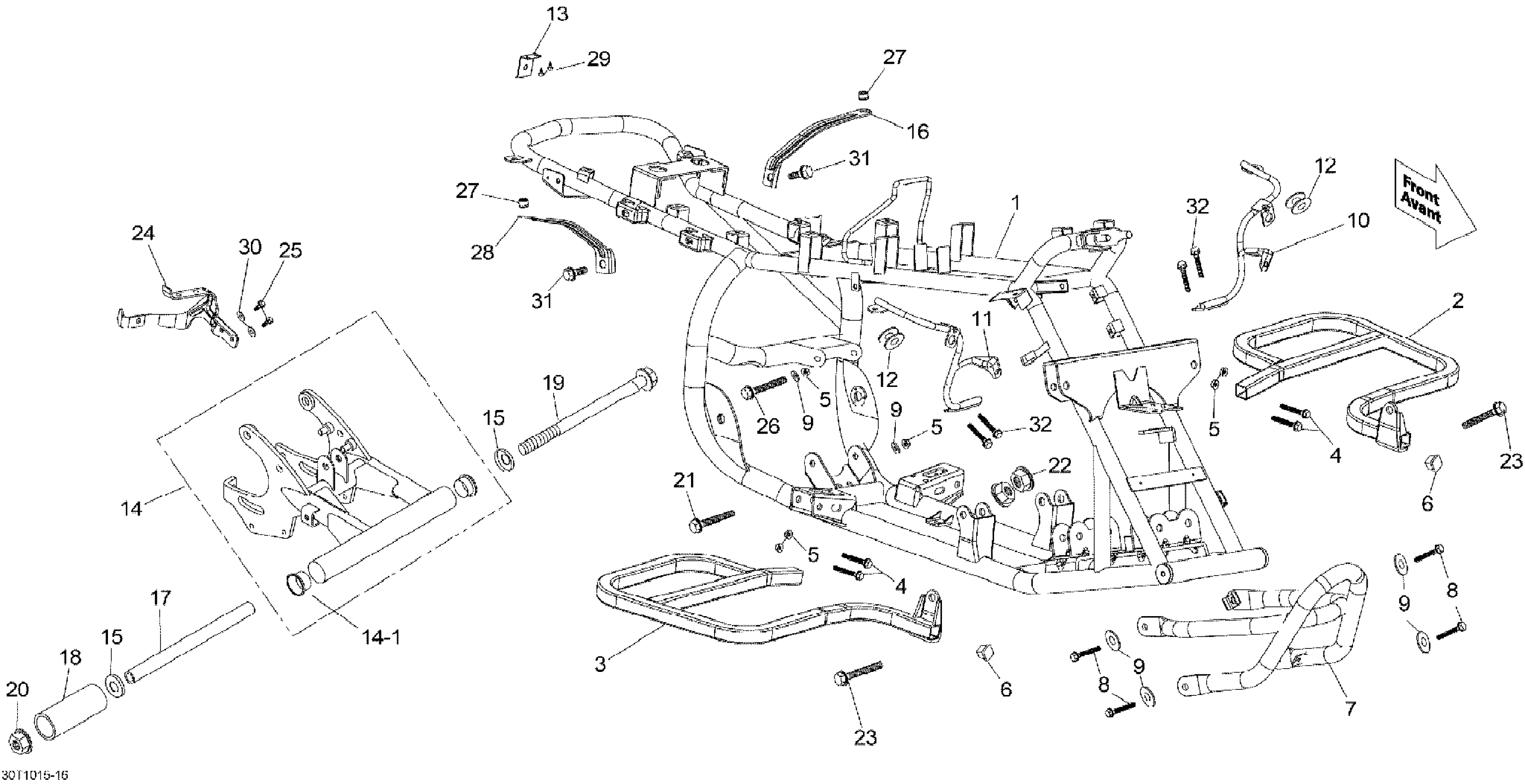

Can-Am DS 70, 2010 Frame Diagram

#

Description
Price

1

Frame Comp

V50100DGF340LL

$649.99

2

LH Footrest Support

V50099DGF060BK

$48.48

3

RH Footrest Support

V50107DGF050BK

$48.48

4

Hex. Flange Screw M8 X 35

207683544

$1.60

5

Hex. Elastic Stop Nut M8

232581414

$0.54

6

Plug

V64312DGF020LL

$6.88

7

Front Bumper

V50270DGF040BK

$84.30

8

Hex. Flange Screw

V9600008014

$3.29

9

Lock Washer 8 mm, Stainless

234181601

$0.52

10

LH Head Lamp Support

V50290DGF050BK

$34.30

11

RH Head Lamp Support

V50280DGF050BK

$34.30

12

Rubber Cushion | Black Model

V15235DGF030

Unavailable

13

Reflector Bracket

V50266DGF020

$7.81

14

Swing Arm

V52370DGF100

Unavailable

14-1

Bushing

V22135MAA000

$10.85

15

Swing Arm Seal Cover

V11400MAA000

$10.37

16

LH Upper Fixed Plate

V50260DGF050BK

$18.63

17

Swing Arm Spacer

V44170MAA000

$17.88

18

Rubber Sleeve

V53436MAA020LL

$11.81

19

Hex. Flange Bolt

V9600014290010LL

$14.34

20

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232571414

Unavailable

21

Hex. Flange Screw

V9600008100

$5.90

22

Elastic Flange Nut M10

232501416

$1.43

23

Hex. Flange Bolt

V958211006090L

Unavailable

24

CHAIN COVER BRACKET - Call your local BRP dealership

V50268DGE010

Unavailable

25

Hex. Flange Screw M6 X 12

207661244

$1.96

26

Hex. Flange Screw

V9600108125

$5.90

27

Rubber Cushion

V85278DGF020LL

$3.94

28

RH Upper Fixed Plate

V50261DGF050BK

$18.63

29

Tapping Screw

V9309304012LL

$1.67

30

Lock Washer Helical M6

234161601

$1.06

31

Hex. Flange Screw

207681244

$0.79

32

Hex. Flange Screw M6 X 16

207661644

$0.70
