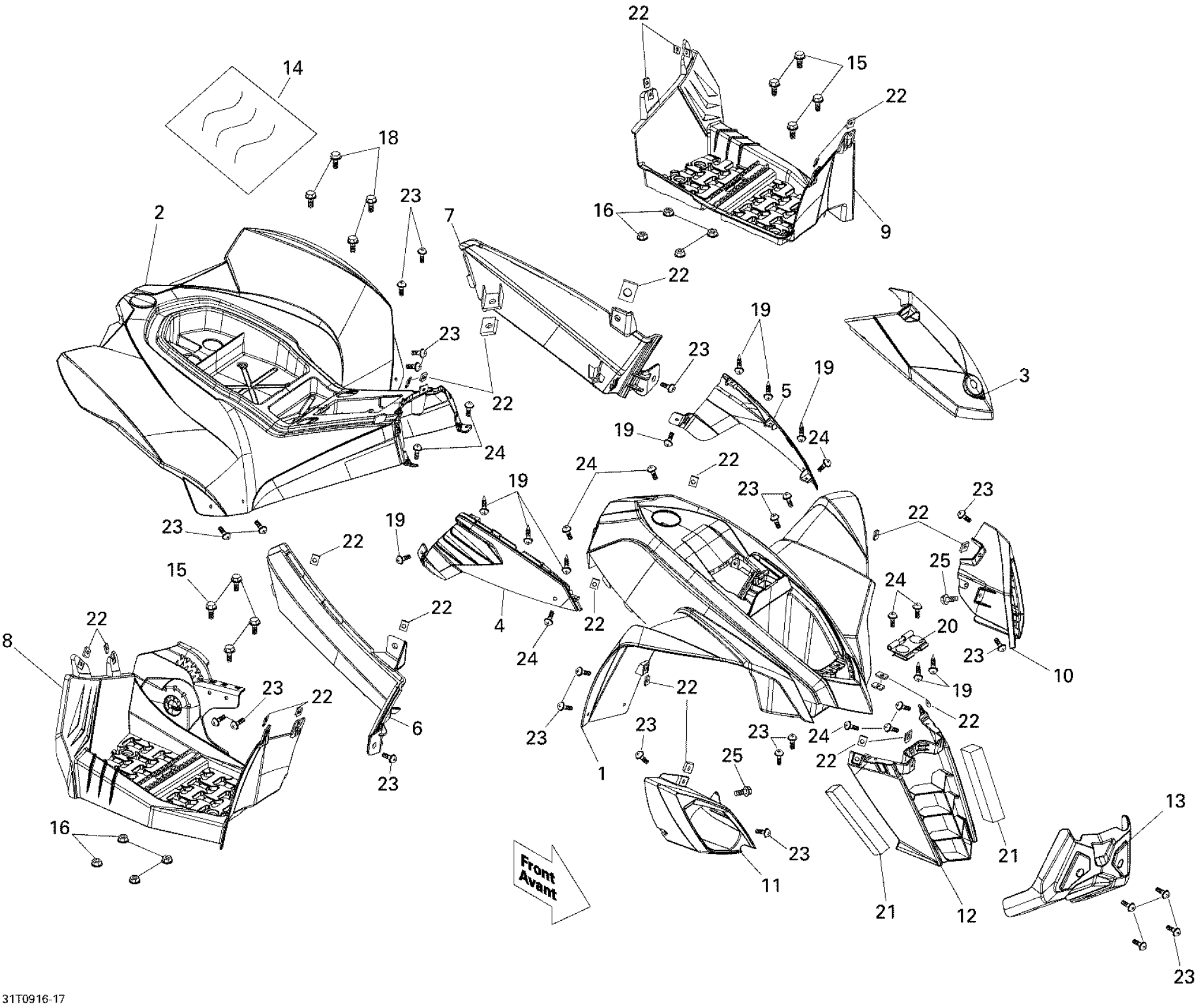

Can-Am DS 70, 2009 Body And Accessories Diagram

#

Description
Price

1

FRONT FENDER YELLOW (EN) - Call your local BRP dealership

V83001DGE000

Unavailable

2

Rear Fender, Yellow

V82013DGF000LL

$204.99

3

Black Cargo Cover

V83008DGF000

$53.99

4

RH Front Side Panel

V80104DGF010BKLL

$22.99

5

LH Front Side Panel

V80105DGF010BKLL

$22.99

6

RH Rear Side Panel

V80116DGF000BKLL

$17.49

7

LH Rear Side Panel

V80117DGF000BKLL

$19.99

8

RH Footrest

V80106DGF020BKLL

$81.99

9

LH Footrest

V80107DGF020BKLL

$81.99

10

RH Headlamp Housing

V80110DGF020BKLL

$42.99

11

LH Headlamp Housing

V80111DGF020BKLL

$42.99

12

Front Grille

V80114DGF000BK

$34.99

13

Skid Plate

V80113DGF010BKLL

$23.99

14

Heat Insulation Sheet

V18450DGF000LL

$10.99

15

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

16

Elastic Stop Nut M6

232561414

$0.55

18

Hex. Flange Screw M6 X 12

207661244

$2.11

19

Tapping Screw

V9309304012LL

$2.19

20

Cargo Cover Hinge

V50262DGF030LL

$18.49

21

Waterproof Strip

V81146DGF020

$4.14

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Round Head Screw

V930000601501LL

$2.19

24

Round Head Screw

V930000601201LL

$2.19

25

Round Head Screw

V9200006017

$3.29
