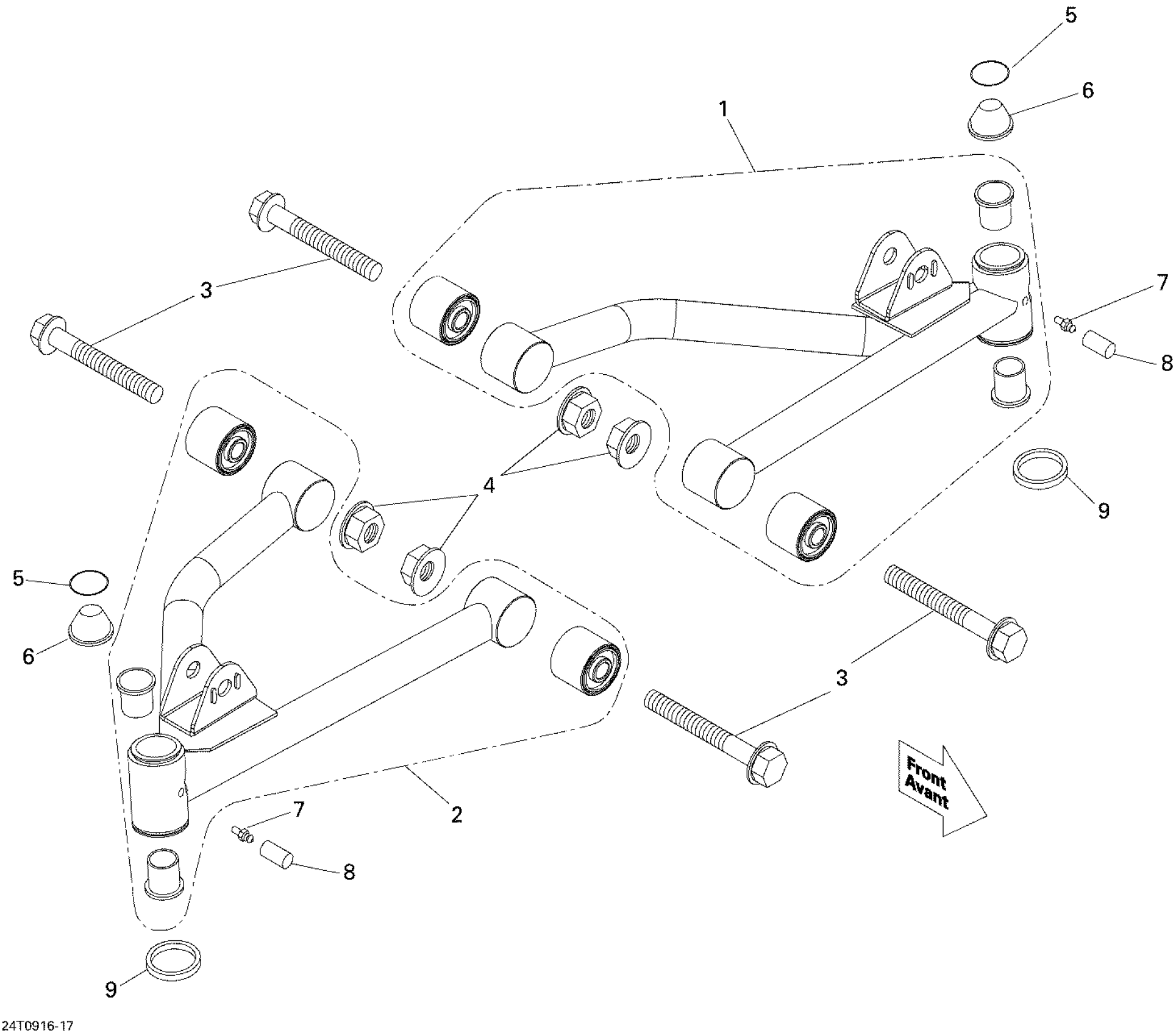

Can-Am DS 70, 2009 07- Front Suspension Arm Diagram

#

Description

Price

1

LH Suspension Arm

V51449DGF060

Unavailable

2

RH Suspension Arm

V51459DGF050

Unavailable

3

Hexagonal Flange Screw

V9600010048

Unavailable

4

Elastic Flange Nut M10

232501416

Unavailable

5

Bushing

V95010CEK000

Unavailable

6

Rubber Protector

V52247DGF010LL

Unavailable

7

Grease Valve

V43350MAA000LL

Unavailable

8

Grease Valve Cap

V52225MAA000

Unavailable

9

Seal Cover

V52245MAA000

Unavailable
