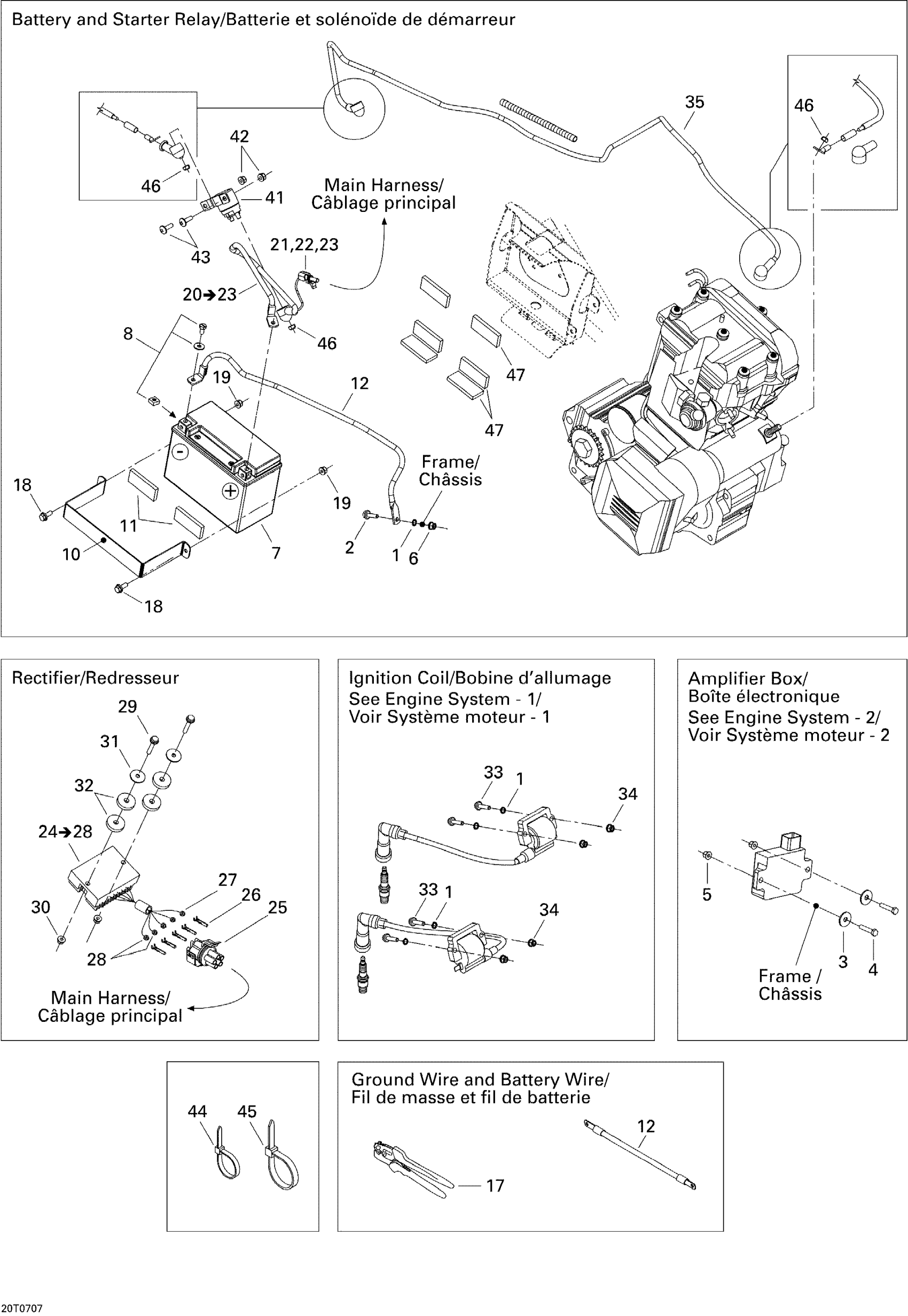

Can-Am DS 650 X, 2007 10- Electrical System Diagram
#
1
External Serrated Lock Washer 6 mm
234461608
Unavailable
2
Hex. Flange Screw M6 X 20
207662044
Unavailable
3
Flat Washer
224061201
Unavailable
4
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152544
Unavailable
5
Hex. Flange Elastic Nut M5
233251414
Unavailable
6
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
7
Battery, 13 Amperes | Includes 7 to 8
710000283
Unavailable
8
Battery Bolt Kit
250000282
Unavailable
10
RUBBER STRAP, BLACK - Call your local BRP dealership
710000087
Unavailable
11
PROTECTOR - Call your local BRP dealership
293830083
Unavailable
12
BATTERY GROUND CABLE - Call your local BRP dealership
710000281
Unavailable
17
Crimp Plier
529035730
Unavailable
18
Hex. Flange Screw M6 X 16
207661644
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
BATTERY POSITIVE CABLE - Call your local BRP dealership | Includes 20 to 23
710000282
Unavailable
21
CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership
278000219
Unavailable
22
Female Terminal
409007300
Unavailable
23
Wire Seal
710000048
Unavailable
24
Rectifier Ass'y | Includes 24 to 28
710000257
Unavailable
25
Female Housing, 5 Circuit
710000106
Unavailable
26
Female Terminal
409007300
Unavailable
27
Wire Seal
278000218
Unavailable
28
Wire Seal
710000048
Unavailable
29
Hex. Flange Screw M6 X 35
207663544
Unavailable
30
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
31
Washer
224060251
Unavailable
32
RUBBER WASHER - Call your local BRP dealership
250200002
Unavailable
33
Hex. Flange Screw M6 X 25
207662544
Unavailable
34
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
35
POSITIVE CABLE - Call your local BRP dealership | Includes 35 to 40
710000069
Unavailable
37
Was 710000483 Heat Shrink Tubing
219704447
Unavailable
41
Starter Relay
515176011
Unavailable
42
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
43
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
44
Tie-Rap 180 mm
414115200
Unavailable
45
Tie Wrap 368 mm
293750008
Unavailable
46
Elastic Stop Nut M6
232561414
Unavailable
47
PROTECTOR - Call your local BRP dealership
293830083
Unavailable
