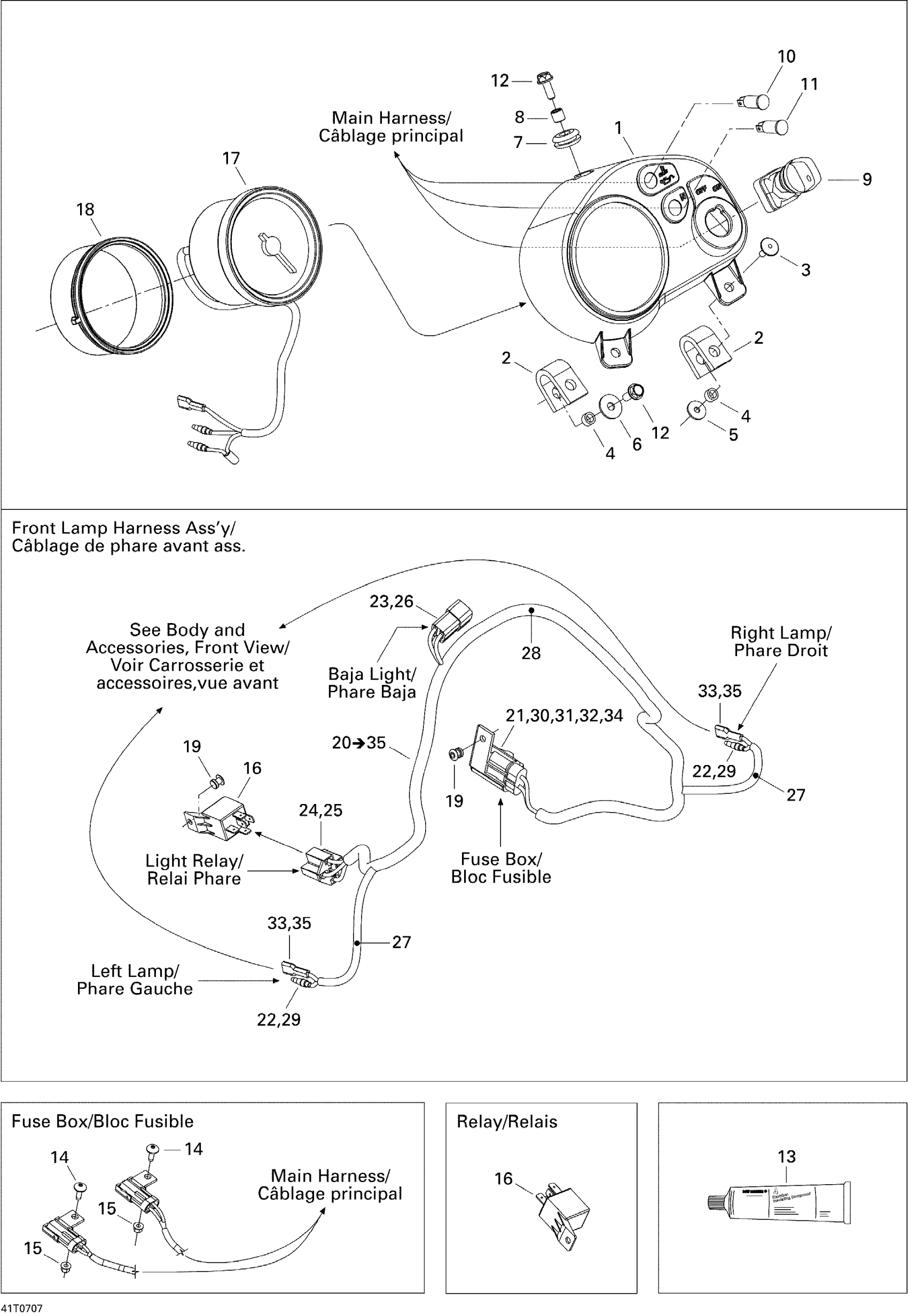

Can-Am DS 650 X, 2007 10- Electrical Accessories Diagram

#

Description
Price

1

DASHBOARD - Call your local BRP dealership | DS 650 X

710000250

Unavailable

2

HOLDER - Call your local BRP dealership | DS 650 X

710000505

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

4

Bushing | DS 650 X

293900104

Unavailable

5

Washer

517124300

Unavailable

6

Flat Washer

224061201

Unavailable

7

Grommet

709000582

Unavailable

8

Bushing

293900105

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership

710000075

Unavailable

10

Pilot Lamp, Red

710000062

Unavailable

11

PILOT LAMP, GREEN - Call your local BRP dealership

710000240

Unavailable

12

Hex. Flange Screw M6 X 16

210261650

Unavailable

13

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

14

Torx Screw M5 X 14

250000742

Unavailable

15

Hex. Flange Elastic Nut M5

233251414

Unavailable

16

Relay | DS 650 X

710010053

Unavailable

17

TACHOMETER - Call your local BRP dealership | DS 650 X

710000426

Unavailable

18

GAUGE SUPPORT - Call your local BRP dealership | DS 650 X

710000427

Unavailable

19

Pop Rivet 3/16" | DS 650 X

390402000

Unavailable

20

FRONT LAMP HARNESS ASS'Y - Call your local BRP dealership | DS 650 X / Includes 22 to 37

710000256

Unavailable

21

Cushion

278000805

Unavailable

22

Male Terminal

278000230

Unavailable

23

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

24

Female Housing, 5 Circuits

409209900

Unavailable

25

Female Terminal

561503100

Unavailable

26

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

27

Tubing 6 Mm 3000Mm Long

219704425

Unavailable

28

Was 409901700 Tubing (9 mm)

219704399

Unavailable

29

Insulated Sheath

278001008

Unavailable

30

Fuse, 15 Amperes

278000343

Unavailable

31

Fuse Holder Cap

278001326

Unavailable

32

Fuse Holder

278001325

Unavailable

33

Rubber Envelope Terminal

710000115

Unavailable

34

Female Terminal

710000113

Unavailable

35

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable
