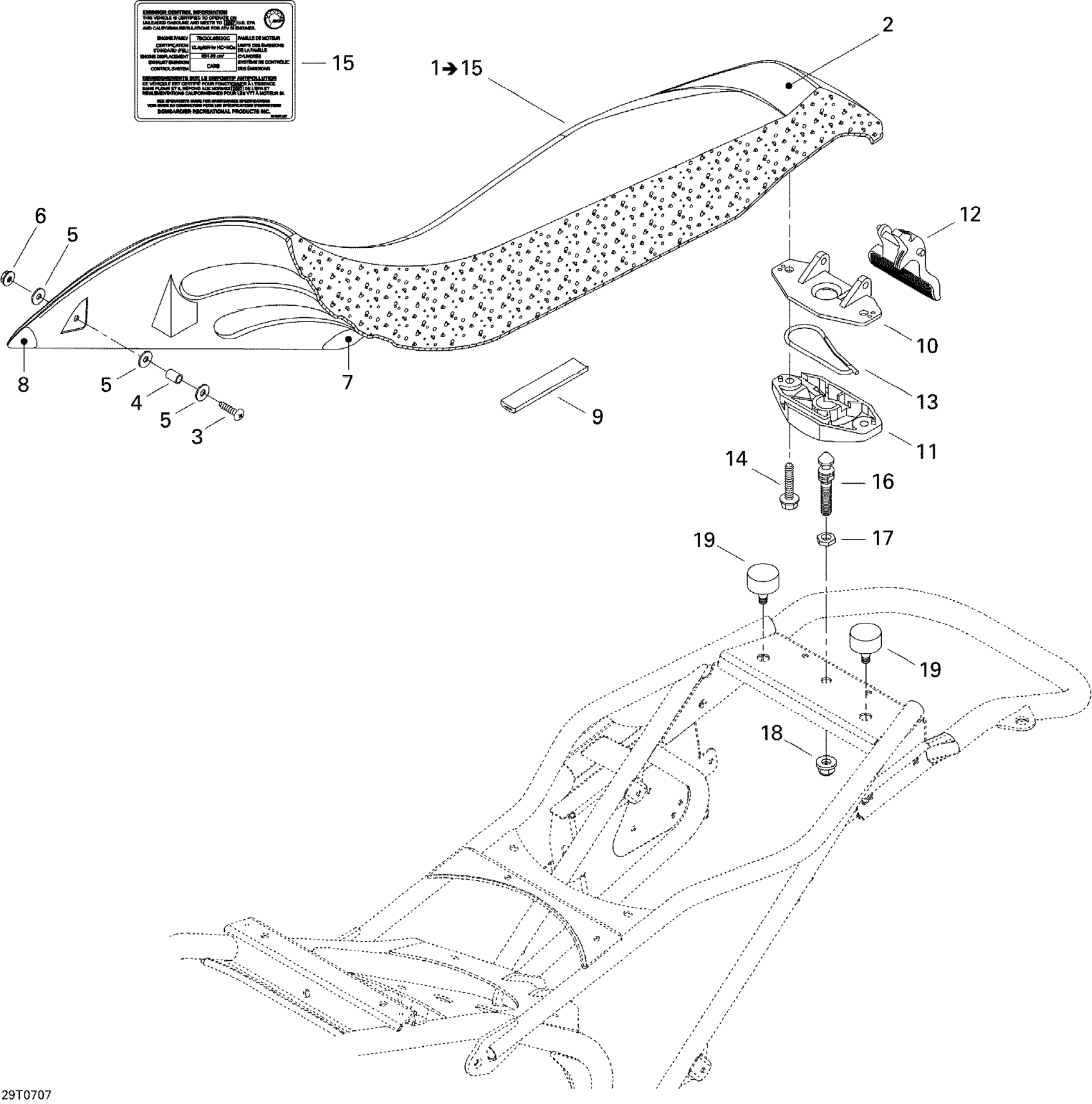

Can-Am DS 650 X, 2007 Seat Diagram

#

Description
Price

1

SEAT ASS'Y - Call your local BRP dealership | Includes 1 to 15

708000497

Unavailable

2

Seat Cover

708000334

Unavailable

3

SCREW M6 X 30 - Call your local BRP dealership

250000046

Unavailable

4

SPACER - Call your local BRP dealership

708000049

Unavailable

5

Flat Washer

224061201

$1.11

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

7

SEAT CORNER, BLACK - Call your local BRP dealership

708000127

Unavailable

8

LH SEAT CORNER - Call your local BRP dealership

708000128

Unavailable

8

RH SEAT CORNER - Call your local BRP dealership

708000129

Unavailable

9

Seal Tray 1000Mm Long

219704368

$12.30

10

Latch Ass'y

269700109

$20.12

11

Latch Ass'y

269700109

$20.12

12

Latch Ass'y

269700109

$20.12

13

Latch Spring

269700017

$7.27

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

15

Emission Control Decal

704901207

Unavailable

16

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

17

Hex. Jam Nut M10

232100600

$1.85

18

Hex. Flange Elastic Nut M10

233201414

$1.26

19

Rubber Stopper

708000758

$9.37
