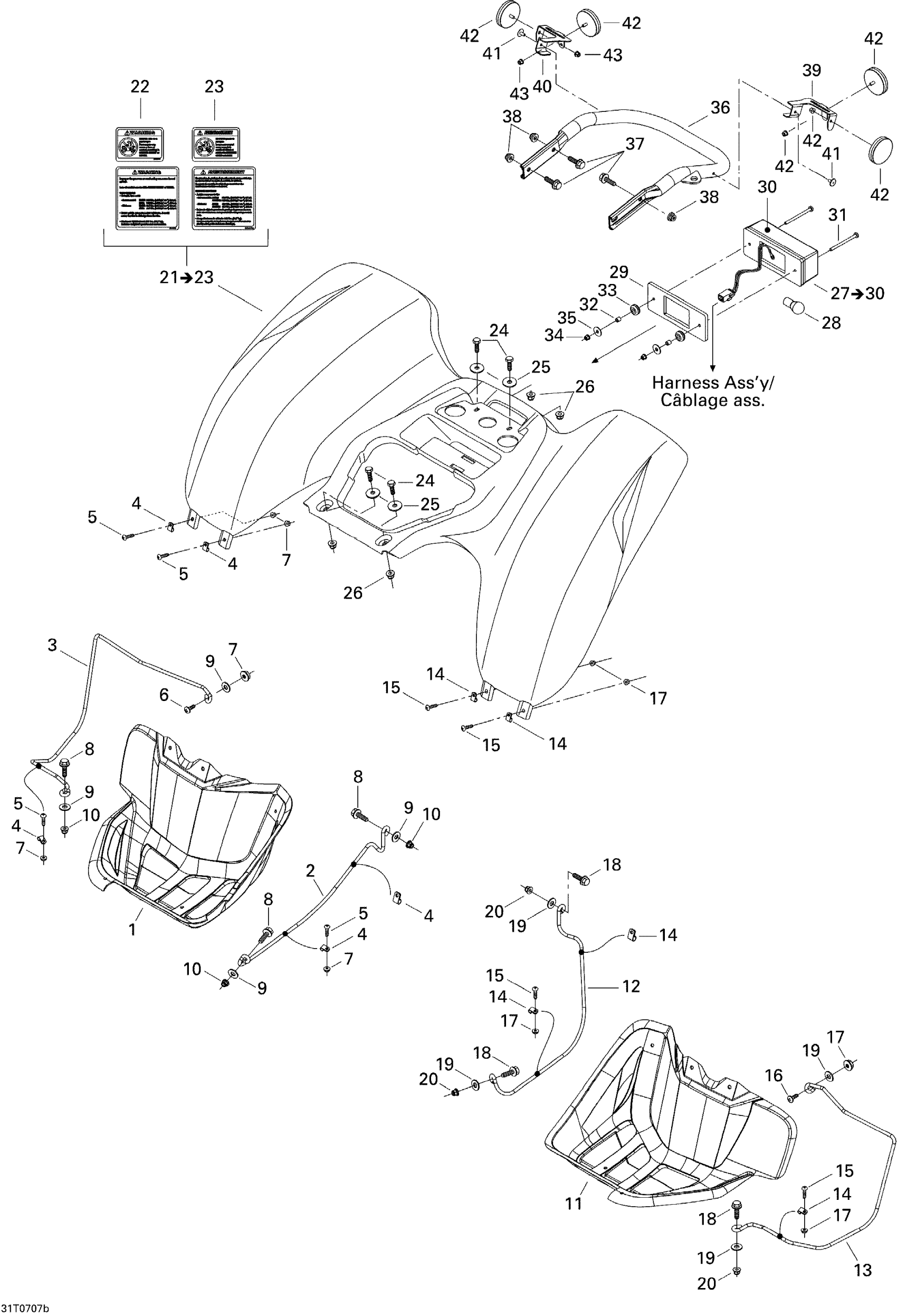

Can-Am DS 650 X, 2007 Body And Accessories Diagram

#

Description
Price

1

RH FOOT PROTECTOR - Call your local BRP dealership

705000301

Unavailable

2

RH FOOT PROTECTOR SUPPORT, INTERIOR - Call your local BRP dealership

705000639

Unavailable

3

RH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000117

Unavailable

4

Gear Clamp

293650150

Unavailable

5

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

6

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

7

Elastic Stop Nut M6

232561414

$1.78

8

Hex. Flange Screw M6 X 25

207662544

$0.53

9

Flat Washer

224061201

$1.11

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

LH FOOT PROTECTOR - Call your local BRP dealership

705000302

Unavailable

12

LH FOOT PROTECTOR SUPPORT, INTERIOR - Call your local BRP dealership

705000642

Unavailable

13

LH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000120

Unavailable

14

Gear Clamp

293650150

Unavailable

15

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

16

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

17

Elastic Stop Nut M6

232561414

$1.78

18

Hex. Flange Screw M6 X 25

207662544

$0.53

19

Flat Washer

224061201

$1.11

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

Rear Fender Kit | DS 650 X / Includes 11 to 13

703500125

Unavailable

22

Warning Decal, Tire And Passenger

704900040

Unavailable

23

Warning Decal, Tire And Passenger

704900102

Unavailable

24

Hex. Screw M6 X 18

207161844

$0.62

25

Flat Washer

224061201

$1.11

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$85.79

28

Bulb

520000758

$7.49

29

GASKET - Call your local BRP dealership

710000129

Unavailable

30

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

31

PHILLIPS SCREW M5 X 70 - Call your local BRP dealership

208657041

Unavailable

32

Bushing

293900112

$9.30

33

Grommet

414036300

$2.22

34

Hex. Flange Elastic Nut M5

233251414

$1.66

35

Flat Washer

224060201

$1.12

36

Rear Bumper

705000143

Unavailable

37

Hex. Flange Screw M8 X 20

207682044

$0.92

38

Hex. Flange Elastic Nut M8

233281414

$1.14

39

SUPP.REFLEC. *REFLEC. SUPP.

705201459

Unavailable

40

SUPP.REFLEC. *REFLEC. SUPP.

705201460

Unavailable

41

Pop Rivet 3/16"

390406500

$0.70

42

Red Reflector

705011221

$11.96

43

Hex. Flange Elastic Nut M5

233251414

$1.66
