- DS 650 X, 2007
07- Front Suspension

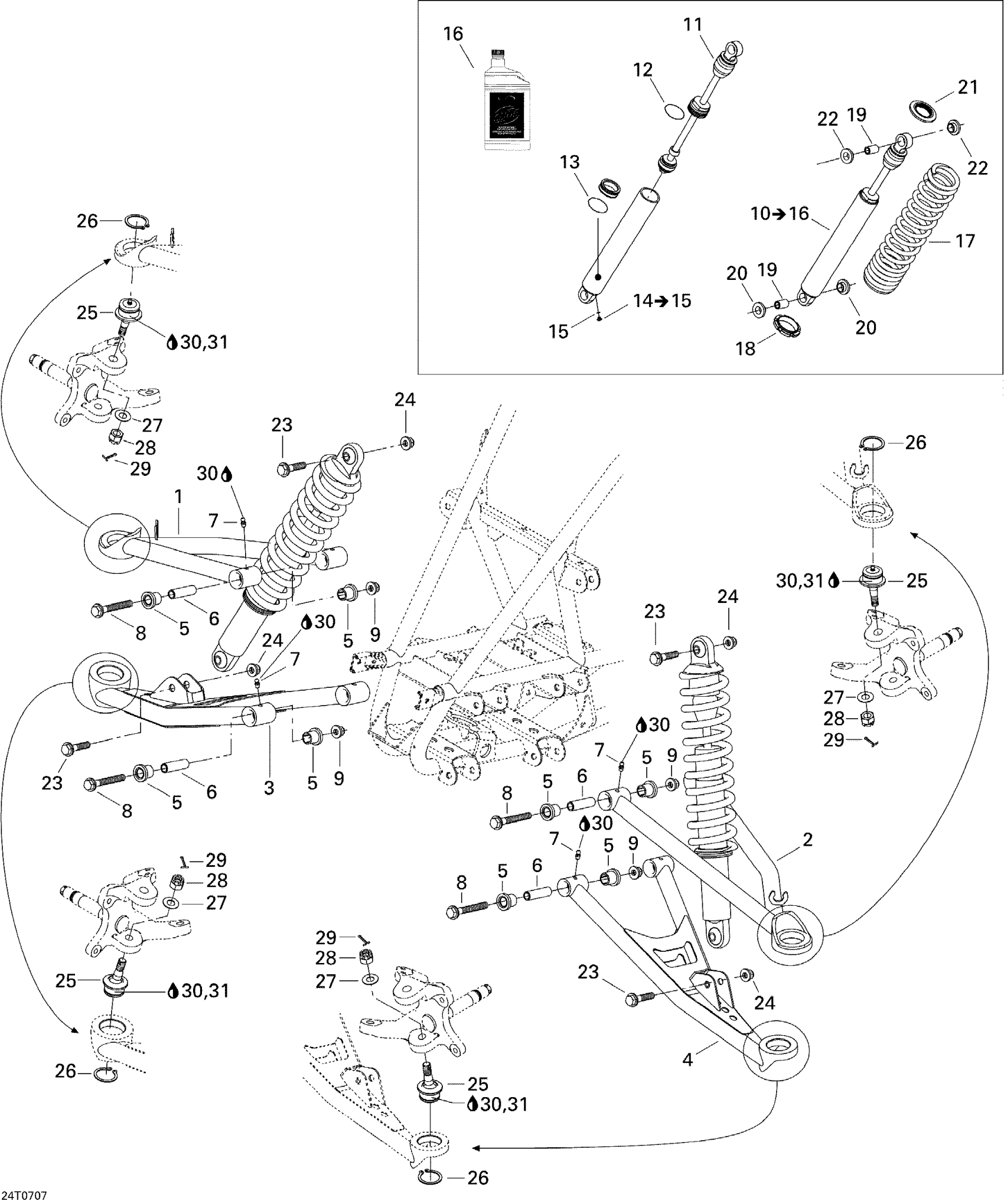

Can-Am DS 650 X, 2007 07- Front Suspension Diagram
#
Description
Price
1
RH Upper Arm
706200382
Unavailable
2
LH UPPER ARM - Call your local BRP dealership
706200381
Unavailable
3
RH LOWER ARM - Call your local BRP dealership
706200376
Unavailable
4
LH LOWER ARM - Call your local BRP dealership
706200374
Unavailable
5
Cushion
706200063
Unavailable
6
Internal Bushing
706200061
Unavailable
7
Grease Fitting
408200700
Unavailable
8
Hex. Flange Screw M10 X 75
207607546
Unavailable
9
Hex. Flange Elastic Nut M10
233201436
Unavailable
10
Front Shock | DS 650 X / Includes 18 to 23
706200347
Unavailable
11
PISTON ASS'Y - Call your local BRP dealership | DS 650 X
706200391
Unavailable
12
O-ring | DS 650 X
706200392
Unavailable
13
O-RING - Call your local BRP dealership | DS 650 X
706200393
Unavailable
14
PRESSURE VALVE ASS'Y - Call your local BRP dealership | DS 650 X / Includes 22 to 23
706200413
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Oil Shock | DS 650 X
503190103
Unavailable
17
SPRING - Call your local BRP dealership | DS 650 X
706200348
Unavailable
18
SPRING SEAT - Call your local BRP dealership | DS 650 X
706200349
Unavailable
19
Bushing | DS 650
706200097
Unavailable
20
CUSHION - Call your local BRP dealership | DS 650
706200099
Unavailable
21
SPRING RETAINER - Call your local BRP dealership | DS 650 X
706200351
Unavailable
22
Bushing | DS 650
706200412
Unavailable
23
Hex. Flange Screw M10 X 50
207605044
Unavailable
24
Hex. Flange Elastic Nut M10
233201414
Unavailable
25
Ball Joint
703500082
Unavailable
26
Circlip
293370017
Unavailable
27
Hardened Washer
706200281
Unavailable
28
Hex. Castellated Nut M12
232221414
Unavailable
29
Cotter Pin
211400017
Unavailable
30
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
293550033
Unavailable
31
Loctite 609, 10 ml
413703100
Unavailable
