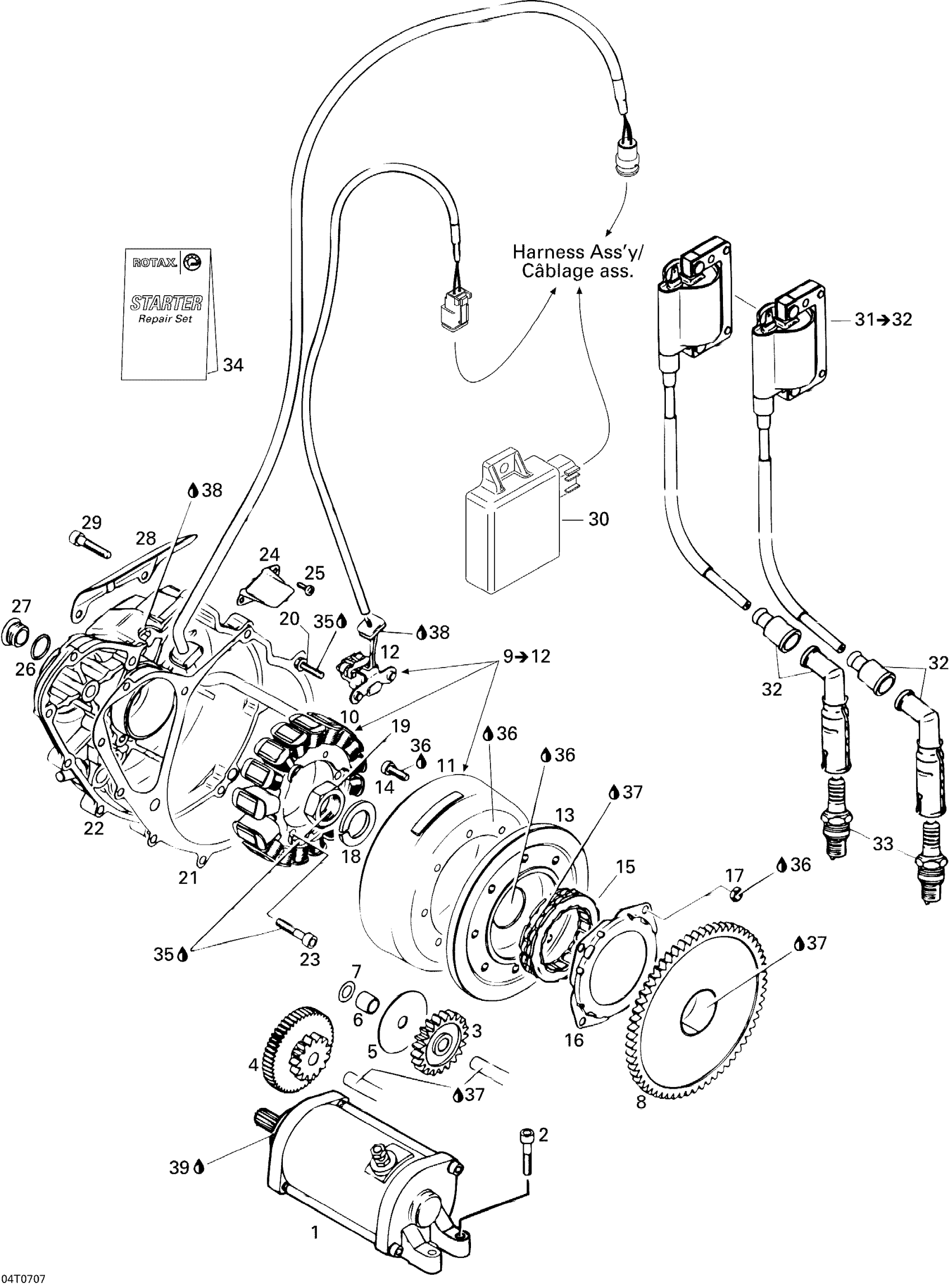

Can-Am DS 650 X, 2007 03- Ignition And Magneto Diagram

#

Description
Price

1

ELECTRIC STARTER - Call your local BRP dealership

420294351

Unavailable

2

Socket Head Screw M6 X 30

205063044

Unavailable

3

INTERMEDIATE GEAR, 24 TEETH - Call your local BRP dealership

420234655

Unavailable

4

Intermediate Gear, 11/52 Teeth

420234756

Unavailable

5

Thrust Washer

420627080

Unavailable

6

SPACER - Call your local BRP dealership

420247785

Unavailable

7

Thrust Washer

420827590

Unavailable

8

STARTING GEAR, 61 TEETH - Call your local BRP dealership

420634319

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

STATOR ASS'Y, 12V180W - Call your local BRP dealership

420296520

Unavailable

11

FLYWHEEL ROTOR ASS'Y, 12V180W - Call your local BRP dealership

420296510

Unavailable

12

Pickup Ass'y

420265153

Unavailable

13

FLYWHEEL ROTOR HUB - Call your local BRP dealership

420264577

Unavailable

14

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

420640980

Unavailable

15

Sprag Clutch

420958857

Unavailable

16

SPRAG CLUTCH HOUSING - Call your local BRP dealership

420259192

Unavailable

17

NUT BM6 - Call your local BRP dealership

420242031

Unavailable

18

Lock Washer, 22 mm

420945759

Unavailable

19

Hex. Nut, M22 X 1.5

420842239

Unavailable

20

Taptite Screw M5 X 16

420941928

Unavailable

21

GASKET - Call your local BRP dealership

420250920

Unavailable

22

IGNITION COVER - Call your local BRP dealership

420211291

Unavailable

23

Socket Head Screw M6 X 35

420241811

Unavailable

24

Interior Cable Support Ass'y

420251889

Unavailable

25

Phillips Screw M4 X 8

420240196

Unavailable

26

O-Ring

420250890

Unavailable

27

Drain Plug

420241801

Unavailable

28

CABLE EXTERNAL COVER - Call your local BRP dealership

420251990

Unavailable

29

Socket Head Screw M6 X 30

205063044

Unavailable

30

AMPLIFIER BOX - Call your local BRP dealership

420664170

Unavailable

31

Ignition Coil

420265357

Unavailable

32

SPARK PLUG CAP - Call your local BRP dealership

420665010

Unavailable

33

Spark Plug, NGK/DR8EA

707000008

Unavailable

34

STARTER BRUSH KIT - Call your local BRP dealership

420294354

Unavailable

35

Loctite 243, 10 ml

293800060

Unavailable

36

Sealant Loctite 648

219703000

Unavailable

37

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

38

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable

39

Petamo Grease, GHY133N, 400 g

420899271

Unavailable
