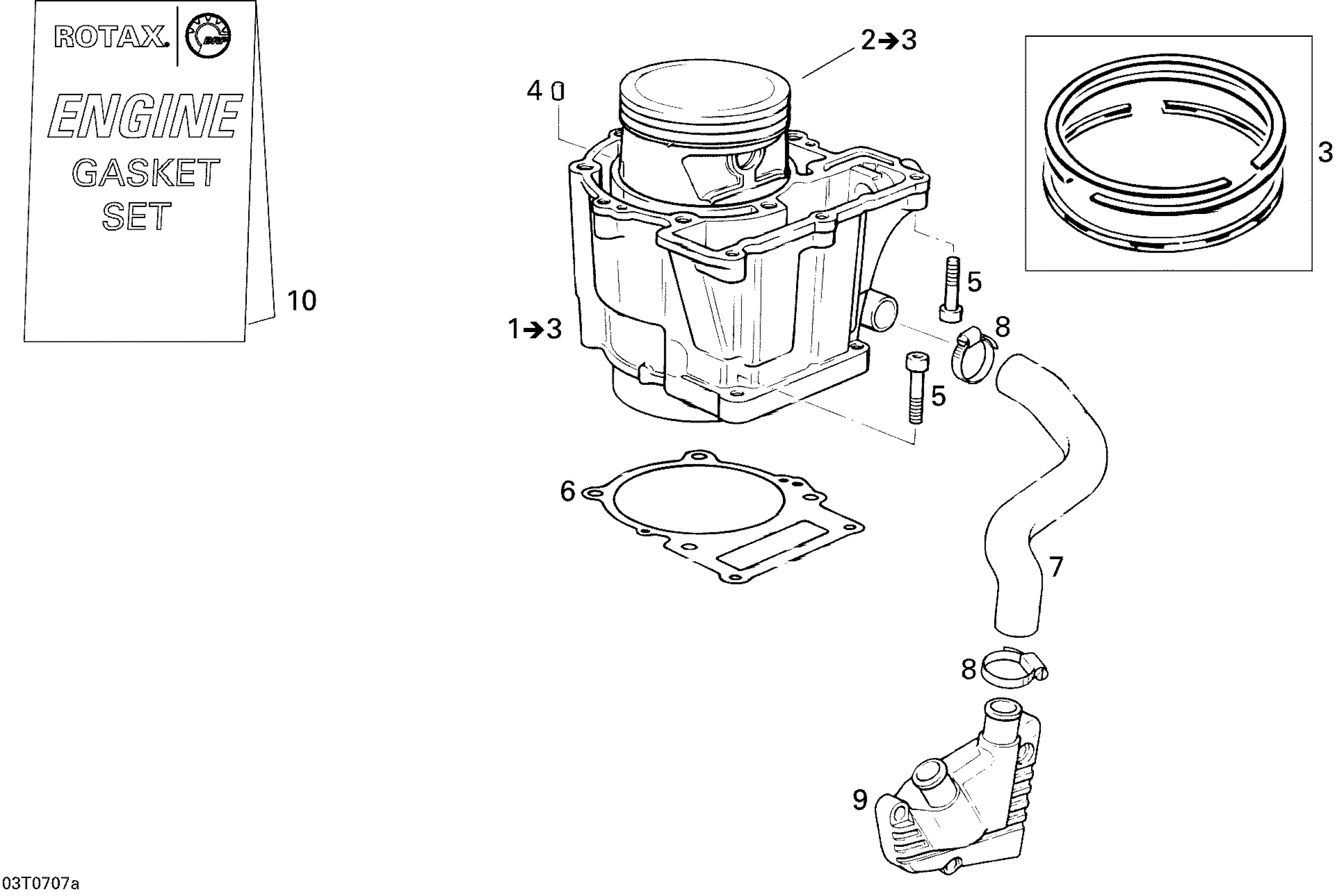

Can-Am DS 650 X, 2007 Cylinder Diagram

#

Description

Price

1

Cylinder With Piston Ass'y | Includes 1 to 3

420223906

Unavailable

2

PISTON ASS'Y - Call your local BRP dealership | Includes 18 to 19

420295185

Unavailable

3

Piston Ring Set

420295184

Unavailable

4

Drive Pin 5 X 10

420929650

$1.34

5

Socket Head Screw M6 X 30

205063044

$1.42

6

Gasket

420650010

Unavailable

7

WATER COOLING HOSE - Call your local BRP dealership

420222450

Unavailable

8

Tridon Gear Clamp

293650051

$3.61

9

WATER PUMP COVER - Call your local BRP dealership

420211270

Unavailable

10

GASKET SET - Call your local BRP dealership

420294768

Unavailable
