01- Cooling System

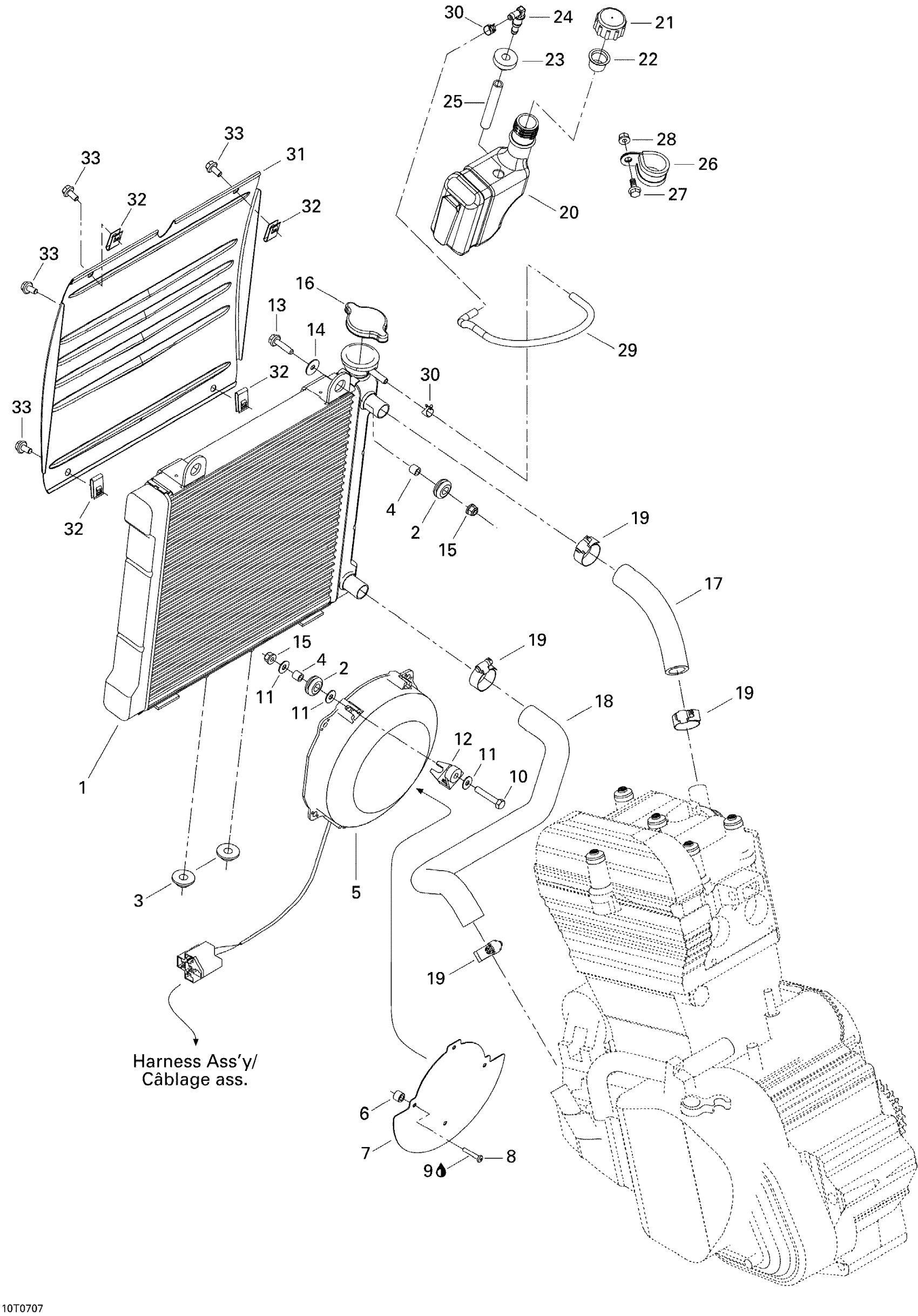

Can-Am DS 650 X, 2007 01- Cooling System Diagram
#
Description
Price
1
Radiator
709200145
Unavailable
2
Grommet
709000582
Unavailable
3
Grommet
705003932
Unavailable
4
Bushing
293900105
Unavailable
5
FAN ASSY - Call your local BRP dealership
709200092
Unavailable
6
Spacer
707000058
Unavailable
7
Heat Shield
709200041
Unavailable
8
Tapping Screw M4.2 X 25
209642590
Unavailable
9
Loctite 271, 10 ml
293800005
Unavailable
10
Hex. Flange Screw M6 X 35
207063544
Unavailable
11
FLAT WASHER - Call your local BRP dealership
391302100
Unavailable
12
Fan Support
709200104
Unavailable
13
Hex. Flange Screw M6 X 25
207662544
Unavailable
14
Flat Washer
224060201
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
Radiator Pressure Cap
709200207
Unavailable
17
Radiator Inlet Hose
709200021
Unavailable
18
Radiator Outlet Hose
709200022
Unavailable
19
Tridon Gear Clamp
293650051
Unavailable
20
COOLANT TANK - Call your local BRP dealership
709200099
Unavailable
21
TANK CAP - Call your local BRP dealership
709200009
Unavailable
22
PROTECTION CAP - Call your local BRP dealership
709200205
Unavailable
23
Grommet
709200285
Unavailable
24
Elbow Male Connector
414580600
Unavailable
25
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
26
Hose Anchor
709200036
Unavailable
27
Hex. Flange Screw M6 X 16
207661644
Unavailable
28
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
29
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
30
Spring Clamp
414554800
Unavailable
31
Radiator Protector
709200037
Unavailable
32
Panel Nut M6 X 1.0
250100198
Unavailable
33
Hex. Flange Screw M6 X 12
207661244
Unavailable
