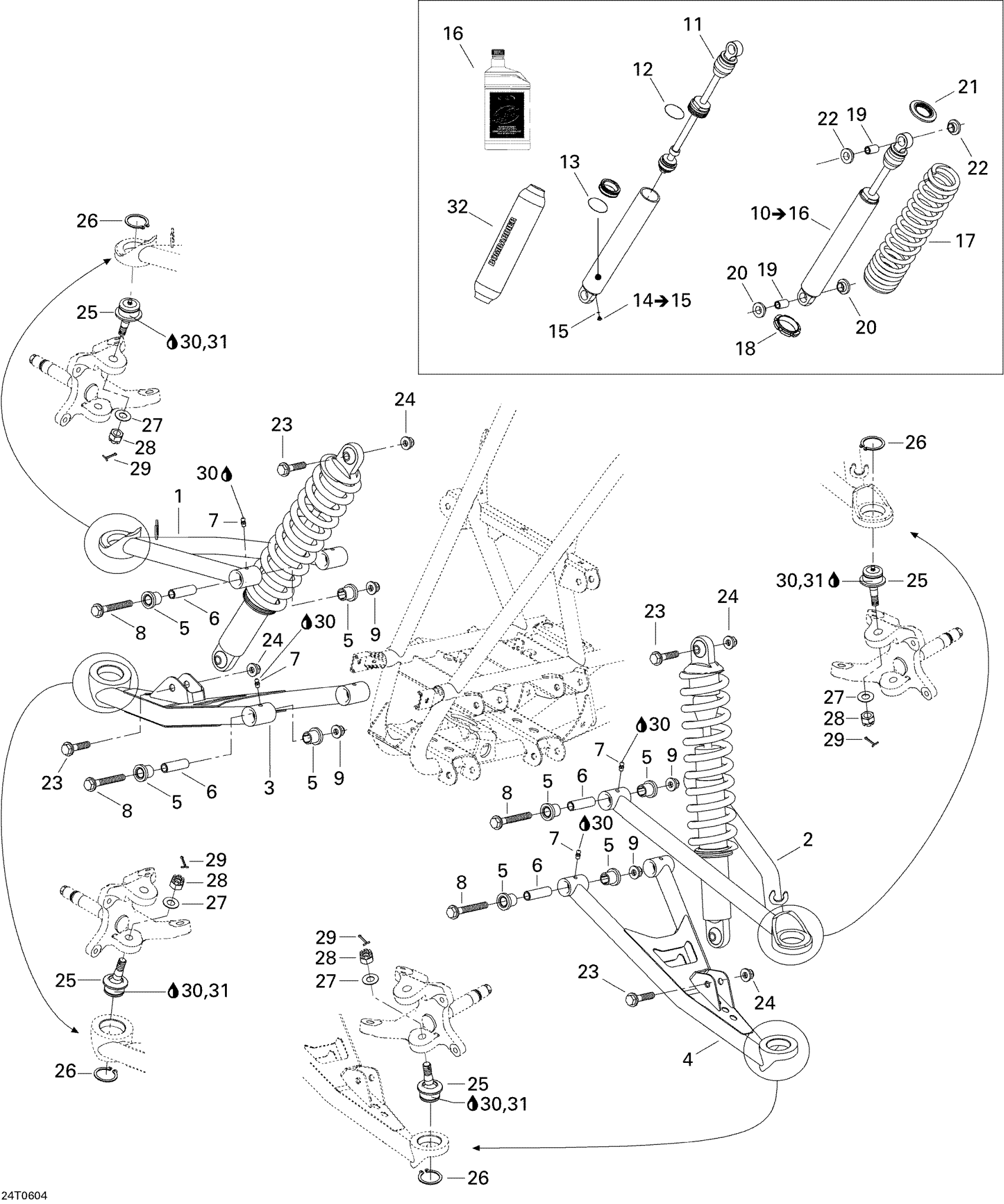

Can-Am DS 650 X, 2006 Front Suspension Diagram

#

Description
Price

1

RH Upper Arm

706200382

Unavailable

2

LH UPPER ARM - Call your local BRP dealership

706200381

$145.35

3

RH LOWER ARM - Call your local BRP dealership

706200376

$280.74

4

LH LOWER ARM - Call your local BRP dealership

706200374

Unavailable

5

Cushion

706200063

Unavailable

6

Internal Bushing

706200061

Unavailable

7

Grease Fitting

408200700

Unavailable

8

Hex. Flange Screw M10 X 75

207607546

Unavailable

9

Hex. Flange Elastic Nut M10

233201436

Unavailable

10

Front Shock | DS 650 X / Includes 18 to 23

706200347

Unavailable

11

PISTON ASS'Y - Call your local BRP dealership | DS 650 X

706200391

$36.12

12

O-ring | DS 650 X

706200392

Unavailable

13

O-RING - Call your local BRP dealership | DS 650 X

706200393

$5.35

14

PRESSURE VALVE ASS'Y - Call your local BRP dealership | DS 650 X / Includes 22 to 23

706200413

$21.51

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Oil Shock | DS 650 X

503190103

Unavailable

17

SPRING - Call your local BRP dealership | DS 650 X

706200348

$59.97

18

SPRING SEAT - Call your local BRP dealership | DS 650 X

706200349

$14.58

19

Bushing | DS 650

706200097

Unavailable

20

CUSHION - Call your local BRP dealership | DS 650

706200099

Unavailable

21

SPRING RETAINER - Call your local BRP dealership | DS 650 X

706200351

Unavailable

22

Bushing | DS 650

706200412

Unavailable

23

Hex. Flange Screw M10 X 50

207605044

Unavailable

24

Hex. Flange Elastic Nut M10

233201414

$1.26

25

Ball Joint

703500082

Unavailable

26

Circlip

293370017

$4.60

27

Hardened Washer

706200281

Unavailable

28

Hex. Castellated Nut M12

232221414

Unavailable

29

Cotter Pin

211400017

Unavailable

30

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

31

Loctite 609, 10 ml

413703100

$24.58

32

Protector

706200276

Unavailable
