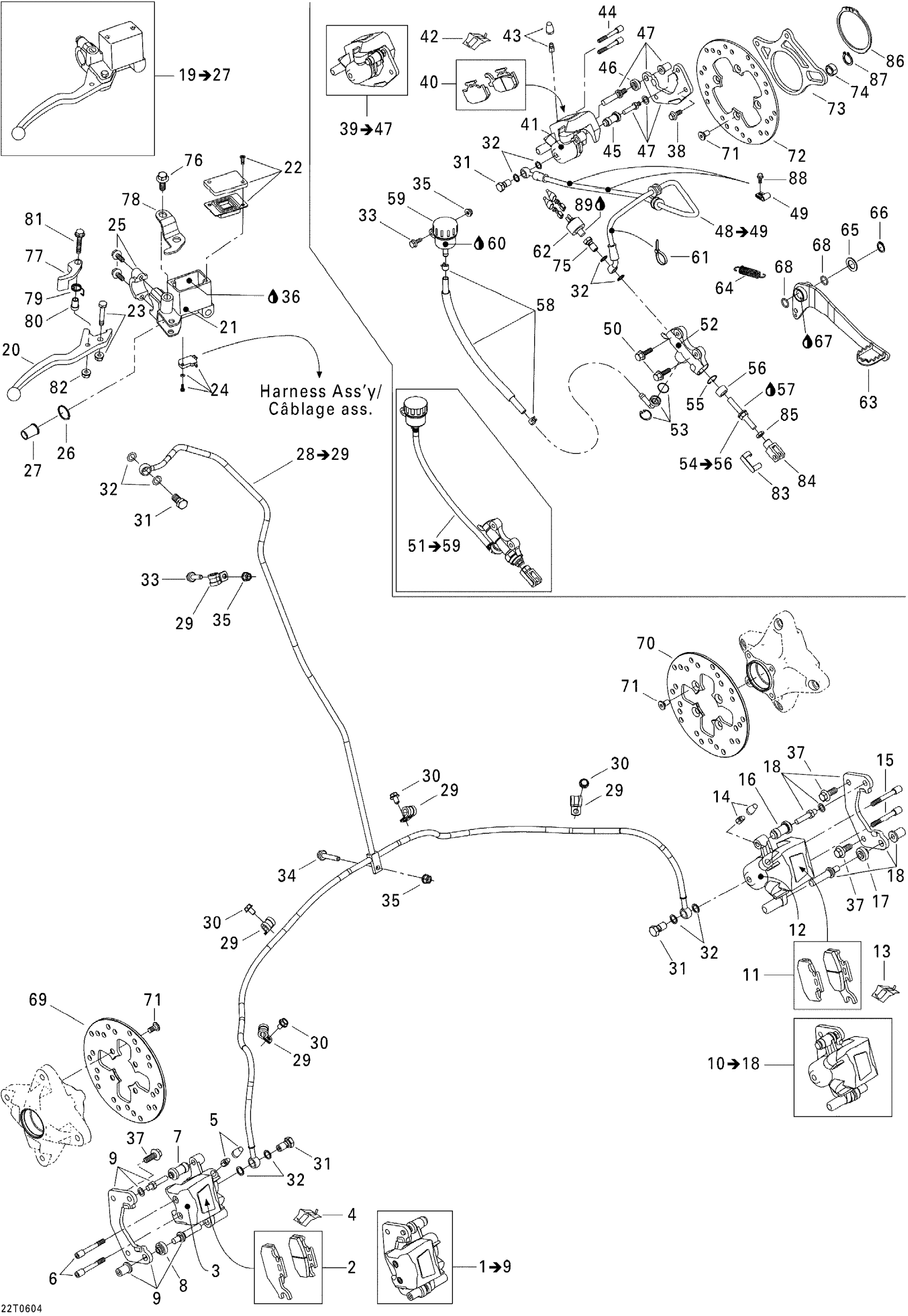

Can-Am DS 650 X, 2006 Brakes Diagram

#

Description
Price

1

RH CALIPER - Call your local BRP dealership | Includes 1 To 9

705600043

$174.58

2

Brake Pad Kit

705600004

Unavailable

3

Piston Set

705600078

$36.89

4

Spring

705600079

Unavailable

5

Bleeding Screw

705600080

Unavailable

6

Pin Set (2)

705600081

Unavailable

7

Compression Boot

705600082

Unavailable

8

Compression Boot

705600083

Unavailable

9

RH BRAKE SUPPORT - Call your local BRP dealership

705600062

Unavailable

10

LH CALIPER - Call your local BRP dealership | Includes 10 To 18

705600044

Unavailable

11

Brake Pad Kit

705600014

Unavailable

12

Piston Set

705600078

$36.89

13

Spring

705600079

Unavailable

14

Bleeding Screw

705600080

Unavailable

15

Pin Set (2)

705600081

Unavailable

16

Compression Boot

705600082

Unavailable

17

Compression Boot

705600083

Unavailable

18

LH BRAKE SUPPORT - Call your local BRP dealership

705600061

$47.66

19

MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27

705600045

Unavailable

20

ARM LEVER - Call your local BRP dealership

705600057

Unavailable

21

Piston Kit

705600058

Unavailable

22

Cap Set

705600084

$23.05

23

BOLT KIT - Call your local BRP dealership

705600085

$13.05

24

SWITCH KIT - Call your local BRP dealership

705600086

$19.97

25

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

26

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

27

COMPRESSION BOOT - Call your local BRP dealership

705600089

$9.74

28

Front Brake Hose | Includes 28 To 29

705600303

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Hex. Forming Screw M6 X 10

210261050

$1.42

31

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

32

Copper Washer

705601628

$4.34

33

Hex. Flange Screw M6 X 20

207662044

Unavailable

34

Hex. Flange Screw M6 X 20

207662044

Unavailable

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

36

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

36

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

37

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

38

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

39

Rear Caliper | Includes 39 To 47

705600599

Unavailable

40

Brake Pad Kit

705600014

Unavailable

41

Piston Set

705600078

$36.89

42

Spring

705600079

Unavailable

43

Bleeding Screw

705600080

Unavailable

44

Pin Set (2)

705600081

Unavailable

45

Compression Boot

705600082

Unavailable

46

Compression Boot

705600083

Unavailable

47

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

48

Rear Brake Hose | Includes 48 To 49

705600304

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

51

Master Cylinder Ass'y | Includes 51 To 59

705600300

Unavailable

52

Piston Set

705600063

Unavailable

53

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

54

ROD ASSY - Call your local BRP dealership | Includes 54 To 57

705600301

$19.20

55

Circlip

705600068

Unavailable

56

Compression Boot

705600090

Unavailable

57

Not Available As Spare Part - Friction Washer

Unavailable

58

HOSE ASS'Y - Call your local BRP dealership

705600190

$25.86

59

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

60

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

60

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

61

Tie-Rap 180 mm

414115200

$0.09

62

Interrupteur *Brake Switch

710001345

Unavailable

63

Brake Pedal

705600094

Unavailable

64

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

$9.20

65

WASHER - Call your local BRP dealership

503107800

$2.03

66

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

67

Synthetic Grease, 400 G

293550010

Unavailable

68

O-RING - Call your local BRP dealership

293300053

$5.35

69

RH BRAKE DISC - Call your local BRP dealership

705600042

$63.05

70

LH BRAKE DISC - Call your local BRP dealership

705600093

$61.51

71

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

72

Brake Disc

705500059

Unavailable

73

REAR CALIPER SUPPORT - Call your local BRP dealership

705600305

$34.58

74

Caliper Guide

705500068

Unavailable

75

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

76

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

77

LEVER ARM - Call your local BRP dealership

705600095

$31.51

78

LEVER STOPPER - Call your local BRP dealership

705600389

$12.28

79

SPRING - Call your local BRP dealership

705600055

$5.35

80

SNAP RING - Call your local BRP dealership

705600097

$9.97

81

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

83

Pin Kit

219702305

Unavailable

84

Yoke

705600100

Unavailable

85

Hex. Jam Nut M8

232180600

Unavailable

86

CIRCLIP - Call your local BRP dealership

293370014

$8.43

87

CIRCLIP - Call your local BRP dealership

293370015

$4.05

88

Hex. Flange Screw M6 X 16

210261650

$1.22

89

Was 293800013 Loctite 56765

219704454

Unavailable
