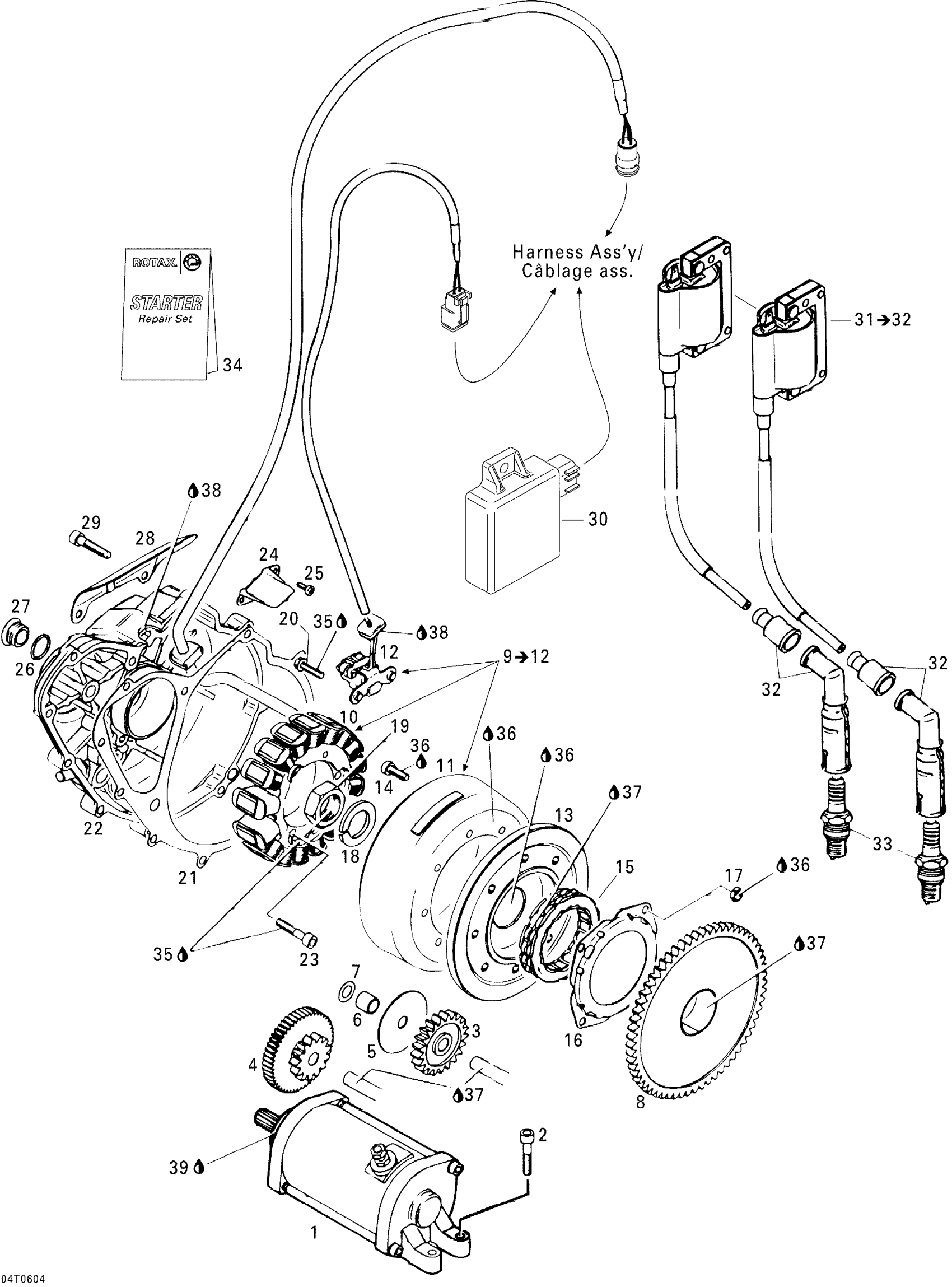

Can-Am DS 650 X, 2006 Ignition And Magneto Diagram
#
Description
Price
2
Socket Head Screw M6 X 30
205063044
Unavailable
3
INTERMEDIATE GEAR, 24 TEETH - Call your local BRP dealership
420234655
Unavailable
4
Intermediate Gear, 11/52 Teeth
420234756
Unavailable
5
Thrust Washer
420627080
Unavailable
6
SPACER - Call your local BRP dealership
420247785
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
STATOR ASS'Y, 12V180W - Call your local BRP dealership
420296520
Unavailable
12
Pickup Ass'y
420265153
Unavailable
13
FLYWHEEL ROTOR HUB - Call your local BRP dealership
420264577
Unavailable
15
Sprag Clutch
420958857
Unavailable
16
SPRAG CLUTCH HOUSING - Call your local BRP dealership
420259192
Unavailable
17
NUT BM6 - Call your local BRP dealership
420242031
Unavailable
18
Lock Washer, 22 mm
420945759
Unavailable
19
Hex. Nut, M22 X 1.5
420842239
Unavailable
20
Taptite Screw M5 X 16
420941928
Unavailable
21
GASKET - Call your local BRP dealership
420250920
Unavailable
22
IGNITION COVER - Call your local BRP dealership
420211291
Unavailable
23
Socket Head Screw M6 X 35 | Formula Deluxe 583. This part replaces 420241811.
420241814
Unavailable
24
Interior Cable Support Ass'y
420251889
Unavailable
25
Phillips Screw M4 X 8
420240196
Unavailable
26
O-Ring
420250890
Unavailable
27
Drain Plug
420241801
Unavailable
28
CABLE EXTERNAL COVER - Call your local BRP dealership
420251990
Unavailable
29
Socket Head Screw M6 X 30
205063044
Unavailable
30
AMPLIFIER BOX - Call your local BRP dealership
420664170
Unavailable
31
Ignition Coil
420265357
Unavailable
36
Sealant Loctite 648
219703000
Unavailable
37
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
38
Sealing Compound Loctite 5366 310Ml
420297907
Unavailable
39
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
