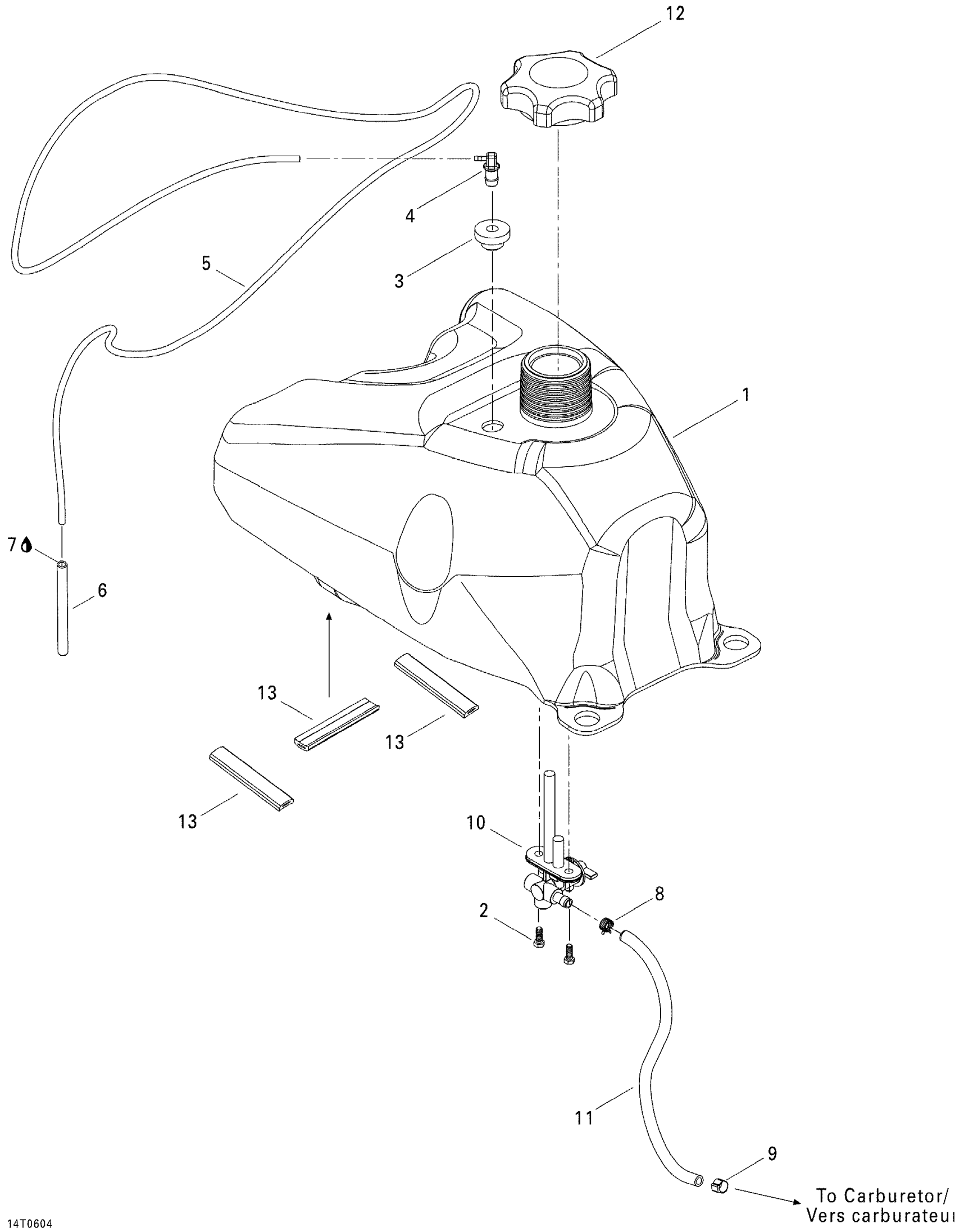

Can-Am DS 650 X, 2006 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000010

Unavailable

2

Hex. Screw M5 X 14

207151444

Unavailable

3

Grommet

570045500

Unavailable

4

Male Connector

414814100

$2.18

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

6

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

7

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

8

Spring Clamp

414655700

Unavailable

9

Oetiker Clamp

293650125

$2.69

10

FUEL VALVE - Call your local BRP dealership

709000011

Unavailable

11

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

12

Fuel Tank Cap 91 Octane

513033722

$23.05

13

Neoprene Seal (1PAC=3M)

219704364

$22.72
