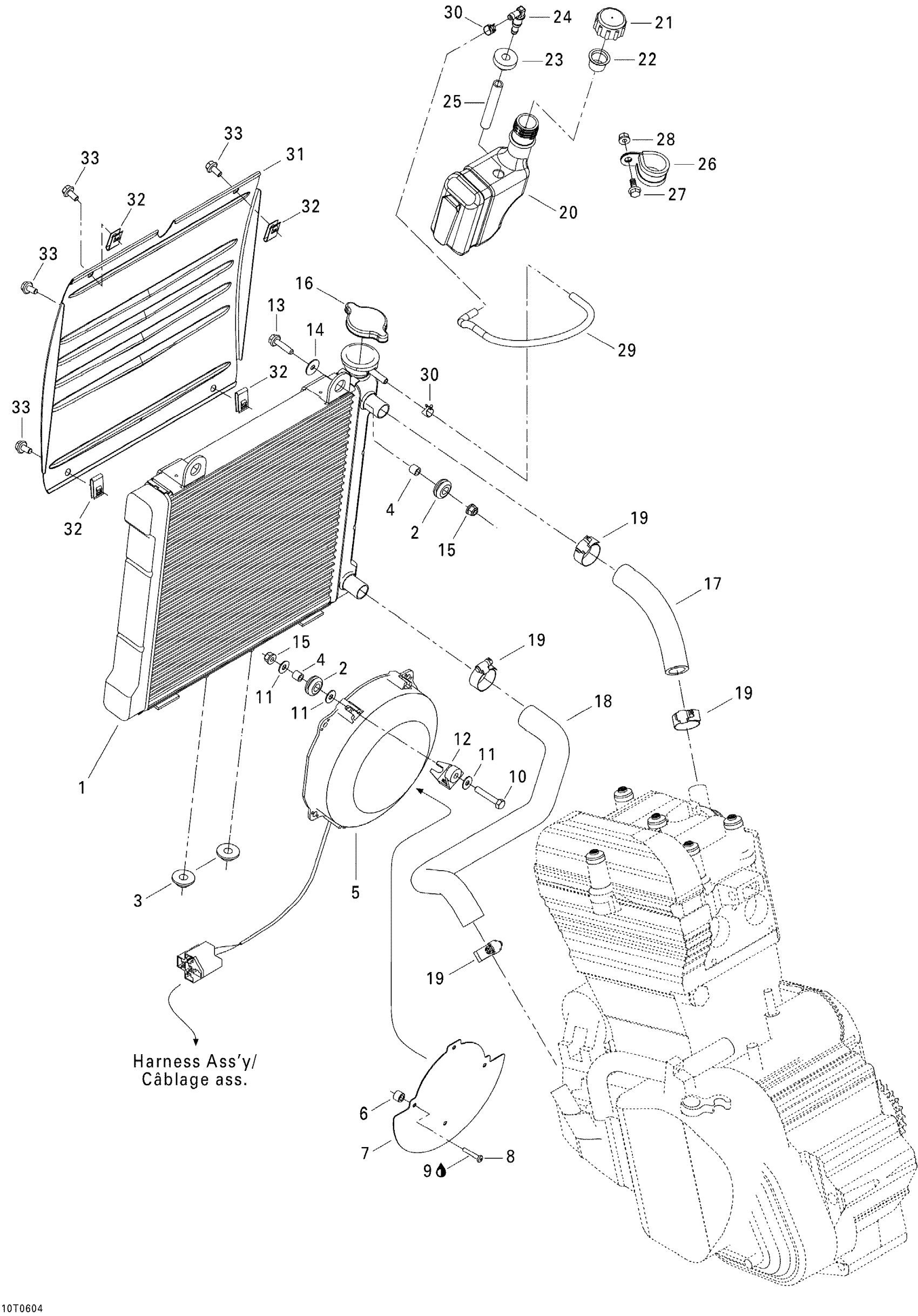

Can-Am DS 650 X, 2006 Cooling System Diagram

#

Description
Price

1

Radiator

709200145

Unavailable

2

Grommet

709000582

$4.79

3

Grommet

705003932

$2.89

4

Bushing

293900105

$7.79

5

FAN ASSY - Call your local BRP dealership

709200092

Unavailable

6

Spacer

707000058

$13.49

7

Heat Shield

709200041

Unavailable

8

Tapping Screw M4.2 X 25

209642590

Unavailable

9

Loctite 271, 10 ml

293800005

$26.99

10

Hex. Flange Screw M6 X 35

207063544

$1.49

11

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

12

Fan Support

709200104

Unavailable

13

Hex. Flange Screw M6 X 25

207662544

$1.49

14

Flat Washer

224060201

$1.49

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

16

Radiator Pressure Cap

709200207

$21.61

17

Radiator Inlet Hose

709200021

Unavailable

18

Radiator Outlet Hose

709200022

Unavailable

19

Tridon Gear Clamp

293650051

$4.29

20

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

21

TANK CAP - Call your local BRP dealership

709200009

Unavailable

22

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

23

Grommet

709200285

$9.89

24

Elbow Male Connector

414580600

$4.29

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$124.99

26

Hose Anchor

709200036

$11.49

27

Hex. Flange Screw M6 X 16

207661644

$1.49

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

29

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$124.99

30

Spring Clamp

414554800

$1.49

31

Radiator Protector

709200037

Unavailable

32

Panel Nut M6 X 1.0

250100198

$2.19

33

Hex. Flange Screw M6 X 12

207661244

$2.19
