Description

Price

1

Seat Ass'y | Includes 1 - 14.

708000108

Unavailable

2

Seat Cover (Black)

708000109

Unavailable

3

SCREW M6 X 30 - Call your local BRP dealership

250000046

Unavailable

4

SPACER - Call your local BRP dealership

708000049

Unavailable

5

Flat Washer

224061201

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

7

Seat Corner

708000035

Unavailable

8

LH Seat Corner

708000036

Unavailable

RH Seat Corner

708000037

Unavailable

9

Seal Tray 1000Mm Long

219704368

Unavailable

10

Latch Ass'y

269700109

Unavailable

11

Latch Ass'y

269700109

Unavailable

12

Latch Ass'y

269700109

Unavailable

13

Latch Spring

269700017

Unavailable

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

Unavailable

15

LATCH STUD - Call your local BRP dealership

291000689

Unavailable

16

Hex. Jam Nut M10

232100600

Unavailable

17

Hex. Flange Elastic Nut M10

233201414

Unavailable

18

Rubber Stopper

708000758

Unavailable

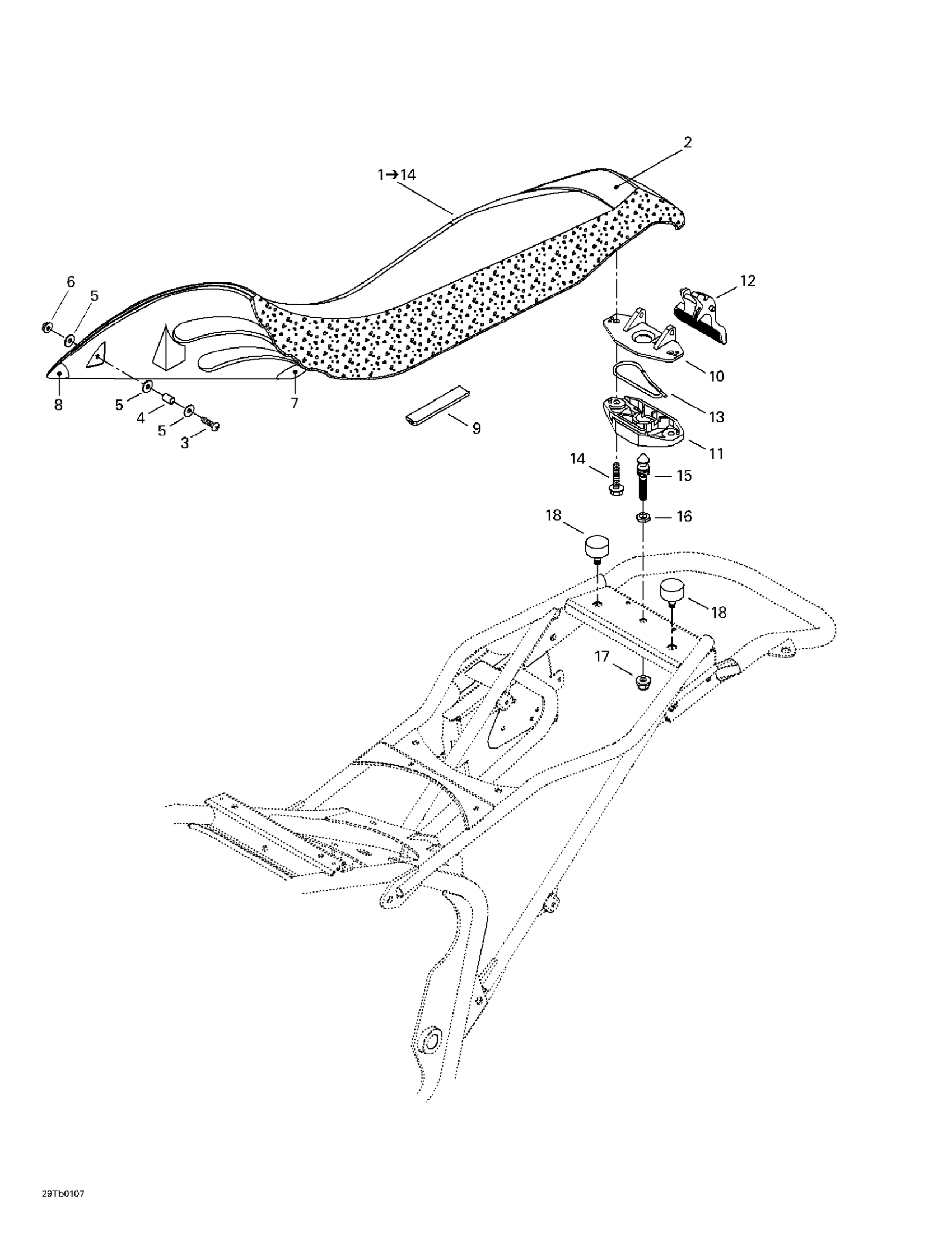

Can-Am DS 650 (supplement), 7482, 2001 09- Seat Diagram

Seat Ass'y | Includes 1 - 14.

Seat Cover (Black)

SCREW M6 X 30 - Call your local BRP dealership

SPACER - Call your local BRP dealership

Flat Washer

Hex. Flange Elastic Nut M6 x 1.0

Seat Corner

LH Seat Corner

RH Seat Corner

Seal Tray 1000Mm Long

Latch Ass'y

Latch Ass'y

Latch Ass'y

Latch Spring

Hex. Flange Screw M6 X 20, Scotch Grip

LATCH STUD - Call your local BRP dealership

Hex. Jam Nut M10

Hex. Flange Elastic Nut M10

Rubber Stopper
