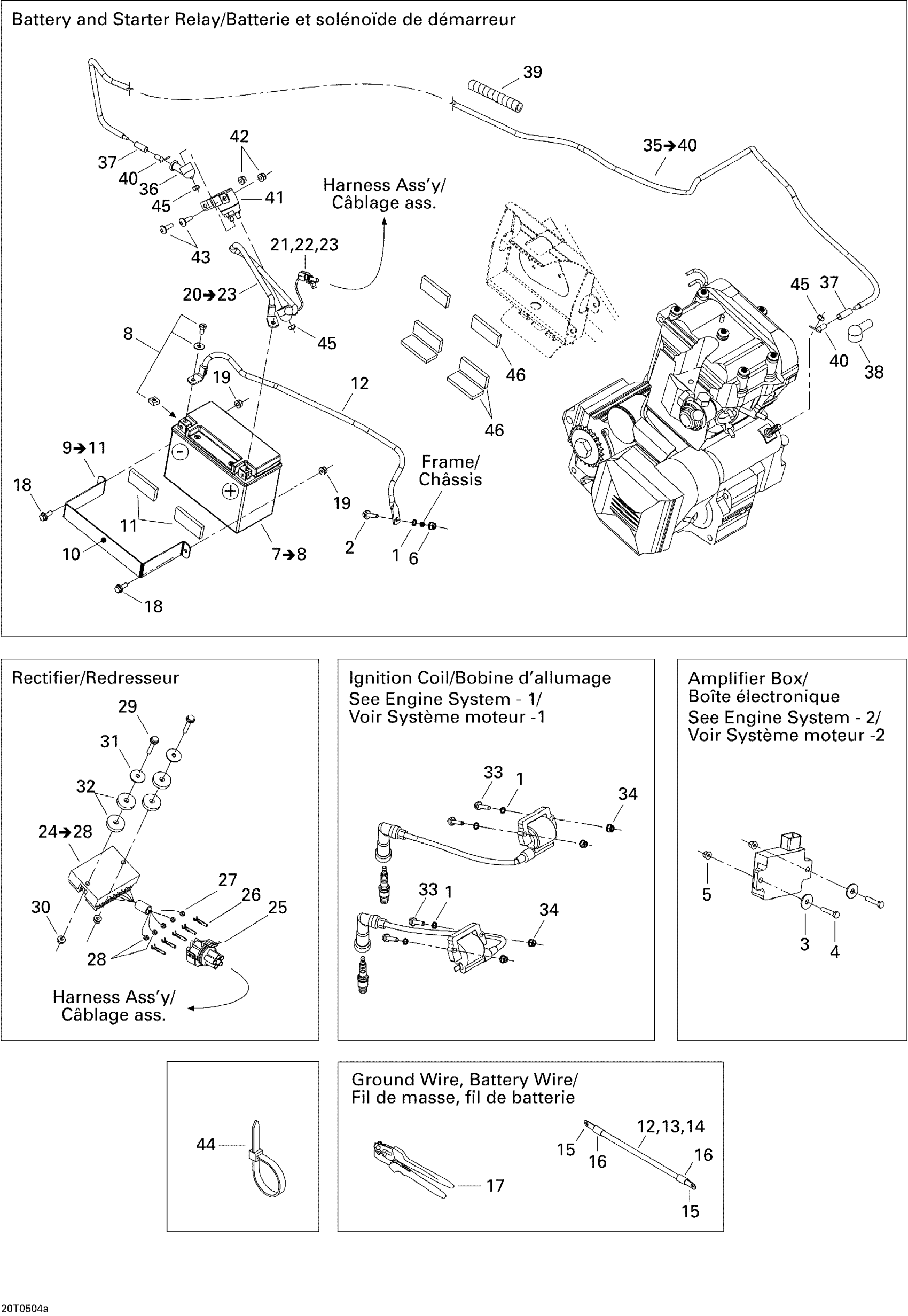

Can-Am DS 650/DS 650 X, 2005 10- Electrical System 1 Diagram

#

Description
Price

1

External Serrated Lock Washer 6 mm

234461608

Unavailable

2

Hex. Flange Screw M6 X 20

207662044

Unavailable

3

Flat Washer

224061201

Unavailable

4

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

5

Hex. Flange Elastic Nut M5

233251414

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

7

Battery, 13 Amperes | Includes 7 to 8

710000283

Unavailable

8

Battery Bolt Kit

250000282

Unavailable

9

Rubber Strap Ass'y | Includes 9 to 11

710000104

Unavailable

10

RUBBER STRAP, BLACK - Call your local BRP dealership

710000087

Unavailable

11

PROTECTOR - Call your local BRP dealership

293830083

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Ground Cable Battery, no 6, meter)

278001680

Unavailable

14

Cable Battery, no 6, meter)

278001690

Unavailable

15

Terminal 45°, Small Hole

278001682

Unavailable

15

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

15

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

15

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

15

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

15

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

15

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

15

Terminal 30°, 2 Holes

278001776

Unavailable

16

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

17

Crimp Plier

529035730

Unavailable

18

Hex. Flange Screw M6 X 16

207661644

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

CONNECTOR_MALE 1 CAVITY - Call your local BRP dealership

278000219

Unavailable

22

Female Terminal

409007300

Unavailable

23

Cap

710000049

Unavailable

24

Rectifier Ass'y | Includes 24 to 28

710000257

Unavailable

25

Female Housing, 5 Circuit

710000106

Unavailable

26

Female Terminal

409007300

Unavailable

27

Wire Seal

278000218

Unavailable

28

Wire Seal

710000048

Unavailable

29

Hex. Flange Screw M6 X 35

207663544

Unavailable

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

31

Washer

224060251

Unavailable

32

RUBBER WASHER - Call your local BRP dealership

250200002

Unavailable

33

Hex. Flange Screw M6 X 25

207662544

Unavailable

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

35

POSITIVE CABLE - Call your local BRP dealership | Includes 35 to 40

710000069

Unavailable

36

Protector Cap

710000393

Unavailable

37

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

38

Protector Cap

710000494

Unavailable

39

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

40

OPEN BARREL - Call your local BRP dealership

710000538

Unavailable

41

Starter Relay

515176011

Unavailable

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

43

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

44

Tie-Rap 180 mm

414115200

Unavailable

44

Tie Wrap 368 mm

293750008

Unavailable

44

Tie Wrap 142 mm

293750002

Unavailable

45

Elastic Stop Nut M6

232561414

Unavailable

46

PROTECTOR - Call your local BRP dealership

293830083

Unavailable
