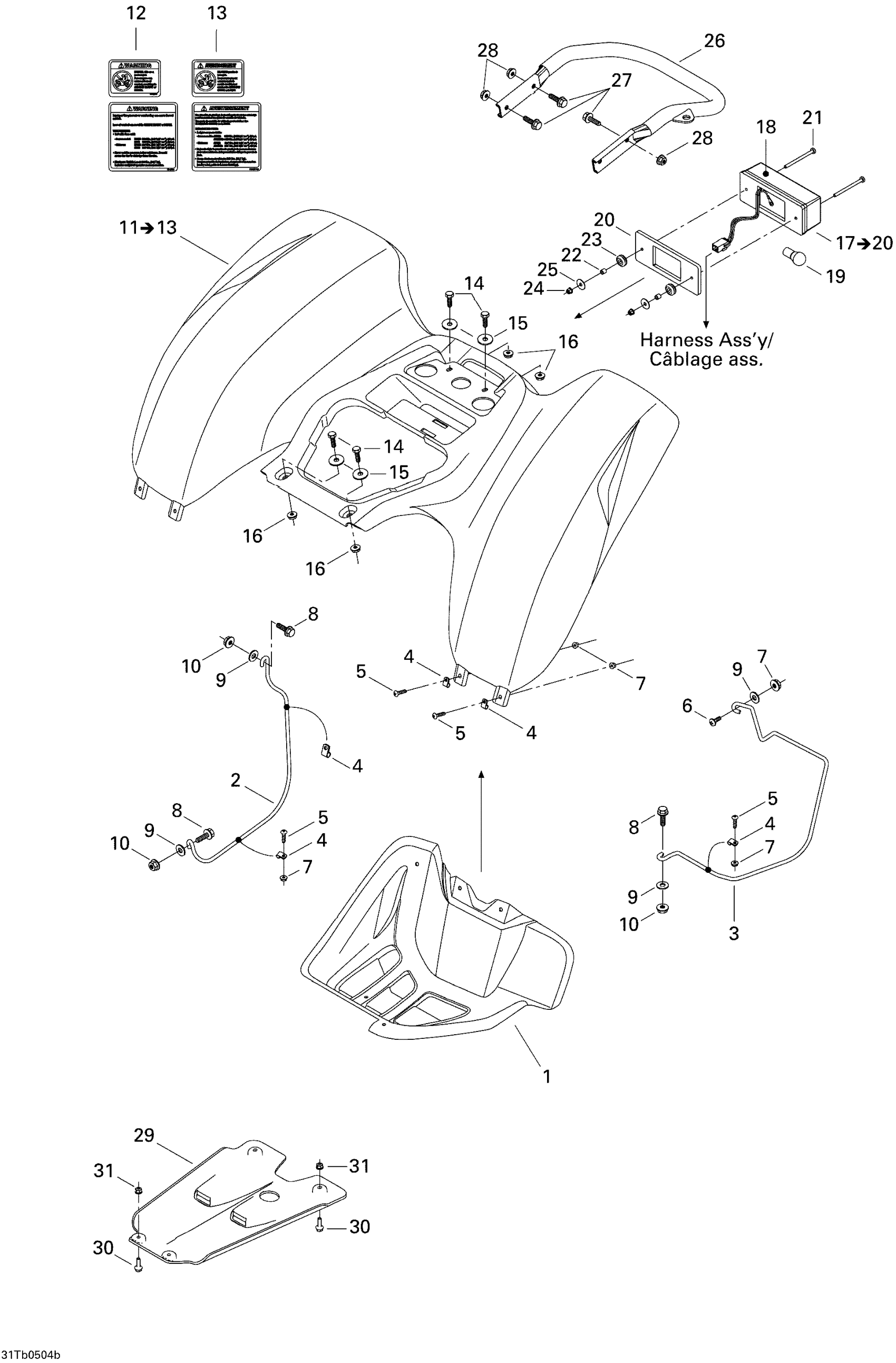

Can-Am DS 650/DS 650 X, 2005 09- Body And Accessories 2 Diagram

#

Description
Price

1

RH FOOT PROTECTOR - Call your local BRP dealership

705000301

Unavailable

1

LH FOOT PROTECTOR - Call your local BRP dealership

705000302

Unavailable

2

RH FOOT PROTECTOR SUPPORT, INTERIOR - Call your local BRP dealership

705000639

Unavailable

2

LH FOOT PROTECTOR SUPPORT, INTERIOR - Call your local BRP dealership

705000642

Unavailable

3

RH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000117

Unavailable

3

LH FOOT PROTECTOR SUPPORT, EXTERIOR - Call your local BRP dealership

705000120

Unavailable

4

Gear Clamp

293650150

Unavailable

5

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

6

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

250000032

Unavailable

7

Elastic Stop Nut M6

232561414

Unavailable

8

Hex. Flange Screw M6 X 25

207662544

Unavailable

9

Flat Washer

224061201

Unavailable

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

11

Rear Fender Kit | DS 650 X / Includes 11 to 13

703500125

Unavailable

11

Rear Fender Kit, red | DS 650 / Includes 11 to 13

703500471

Unavailable

12

Warning Decal, Tire And Passenger

704900040

Unavailable

13

Warning Decal, Tire And Passenger

704900102

Unavailable

14

Hex. Screw M6 X 18

207161844

Unavailable

15

Flat Washer

224061201

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Tail Light Housing Ass'y | Includes 17 to 20

710000711

Unavailable

18

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

19

Bulb

520000758

Unavailable

20

GASKET - Call your local BRP dealership

710000129

Unavailable

21

PHILLIPS SCREW M5 X 70 - Call your local BRP dealership

208657041

Unavailable

22

Bushing

293900112

Unavailable

23

Grommet

414036300

Unavailable

24

Hex. Flange Elastic Nut M5

233251414

Unavailable

25

Flat Washer

224060201

Unavailable

26

Rear Bumper

705000143

Unavailable

27

Hex. Flange Screw M8 X 20

207682044

Unavailable

28

Hex. Flange Elastic Nut M8

233281414

Unavailable

29

Skid Plate | DS 650

705000304

Unavailable

30

Hex. Flange Screw M6 X 20

207662044

Unavailable

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
