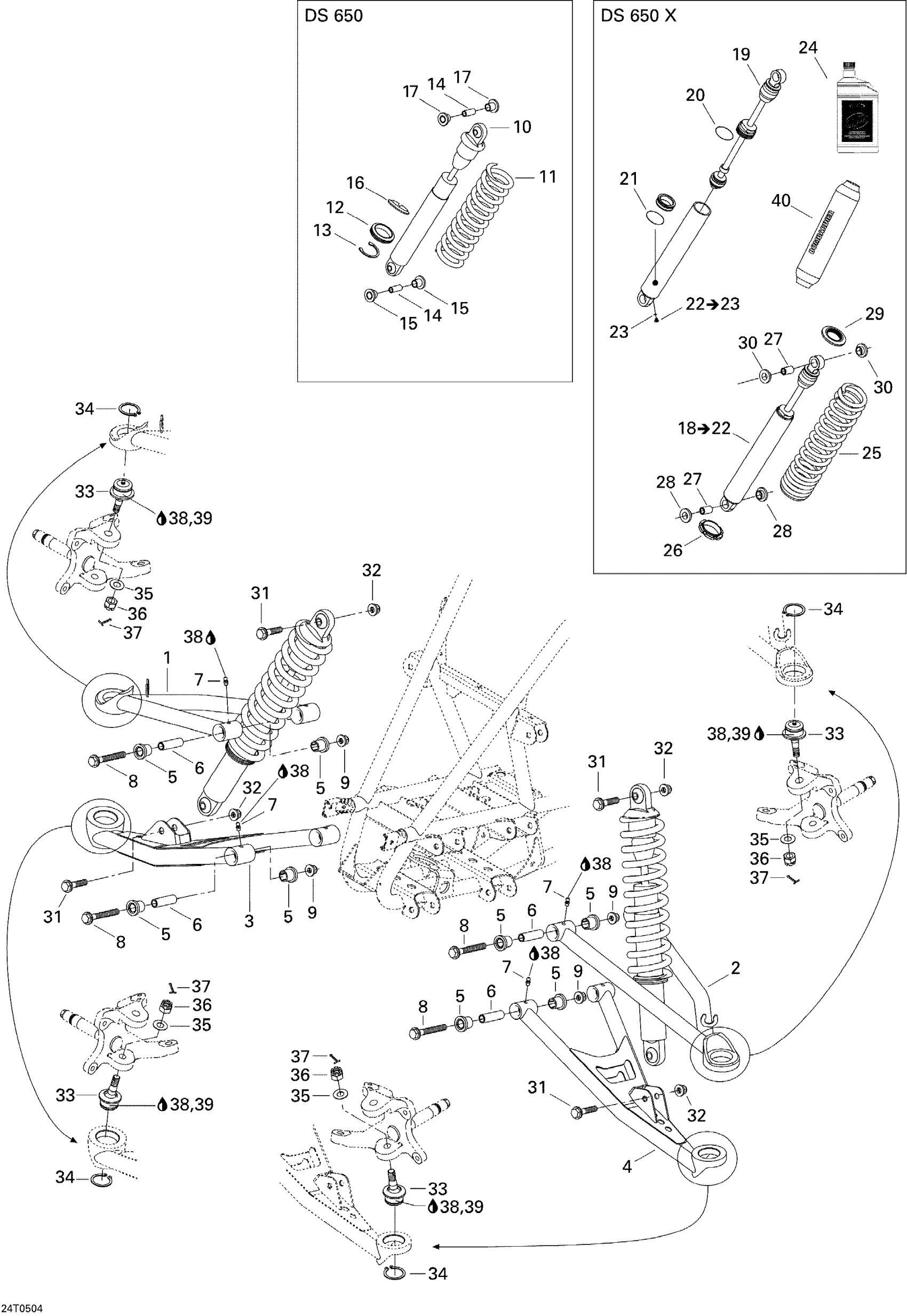

Can-Am DS 650/DS 650 X, 2005 07- Front Suspension Diagram

#

Description
Price

1

RH Upper Arm

706200382

Unavailable

2

LH UPPER ARM - Call your local BRP dealership

706200381

Unavailable

3

RH LOWER ARM - Call your local BRP dealership

706200376

Unavailable

4

LH LOWER ARM - Call your local BRP dealership

706200374

Unavailable

5

Cushion

706200063

Unavailable

6

Internal Bushing

706200061

Unavailable

7

Grease Fitting

408200700

Unavailable

8

Hex. Flange Screw M10 X 75

207607546

Unavailable

9

Hex. Flange Elastic Nut M10

233201436

Unavailable

10

Front Shock | DS 650

706200314

Unavailable

11

Spring | DS 650

706200315

Unavailable

12

SPRING SEAT - Call your local BRP dealership | DS 650

706200212

Unavailable

13

RING HOLDER - Call your local BRP dealership | DS 650

706200138

Unavailable

14

Bushing | DS 650

706200097

Unavailable

15

CUSHION - Call your local BRP dealership | DS 650

706200099

Unavailable

16

SPRING RETAINER - Call your local BRP dealership | DS 650

706200211

Unavailable

17

Bushing | DS 650

706200412

Unavailable

18

Front Shock | DS 650 X / Includes 18 to 23

706200347

Unavailable

19

PISTON ASS'Y - Call your local BRP dealership | DS 650 X

706200391

Unavailable

20

O-ring | DS 650 X

706200392

Unavailable

21

O-RING - Call your local BRP dealership | DS 650 X

706200393

Unavailable

22

PRESSURE VALVE ASS'Y - Call your local BRP dealership | DS 650 X / Includes 22 to 23

706200413

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Oil Shock | DS 650 X

503190103

Unavailable

25

SPRING - Call your local BRP dealership | DS 650 X

706200348

Unavailable

26

SPRING SEAT - Call your local BRP dealership | DS 650 X

706200349

Unavailable

27

Bushing | DS 650

706200097

Unavailable

28

CUSHION - Call your local BRP dealership | DS 650

706200099

Unavailable

29

SPRING RETAINER - Call your local BRP dealership | DS 650 X

706200351

Unavailable

30

Bushing | DS 650

706200412

Unavailable

31

Hex. Flange Screw M10 X 50

207605044

Unavailable

32

Hex. Flange Elastic Nut M10

233201414

Unavailable

33

Ball Joint

703500082

Unavailable

34

Circlip

293370017

Unavailable

35

Hardened Washer

706200281

Unavailable

36

Hex. Castellated Nut M12

232221414

Unavailable

37

Cotter Pin

211400017

Unavailable

38

Synthetic Grease, 400 G

293550010

Unavailable

39

Loctite 609, 10 ml

413703100

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable
