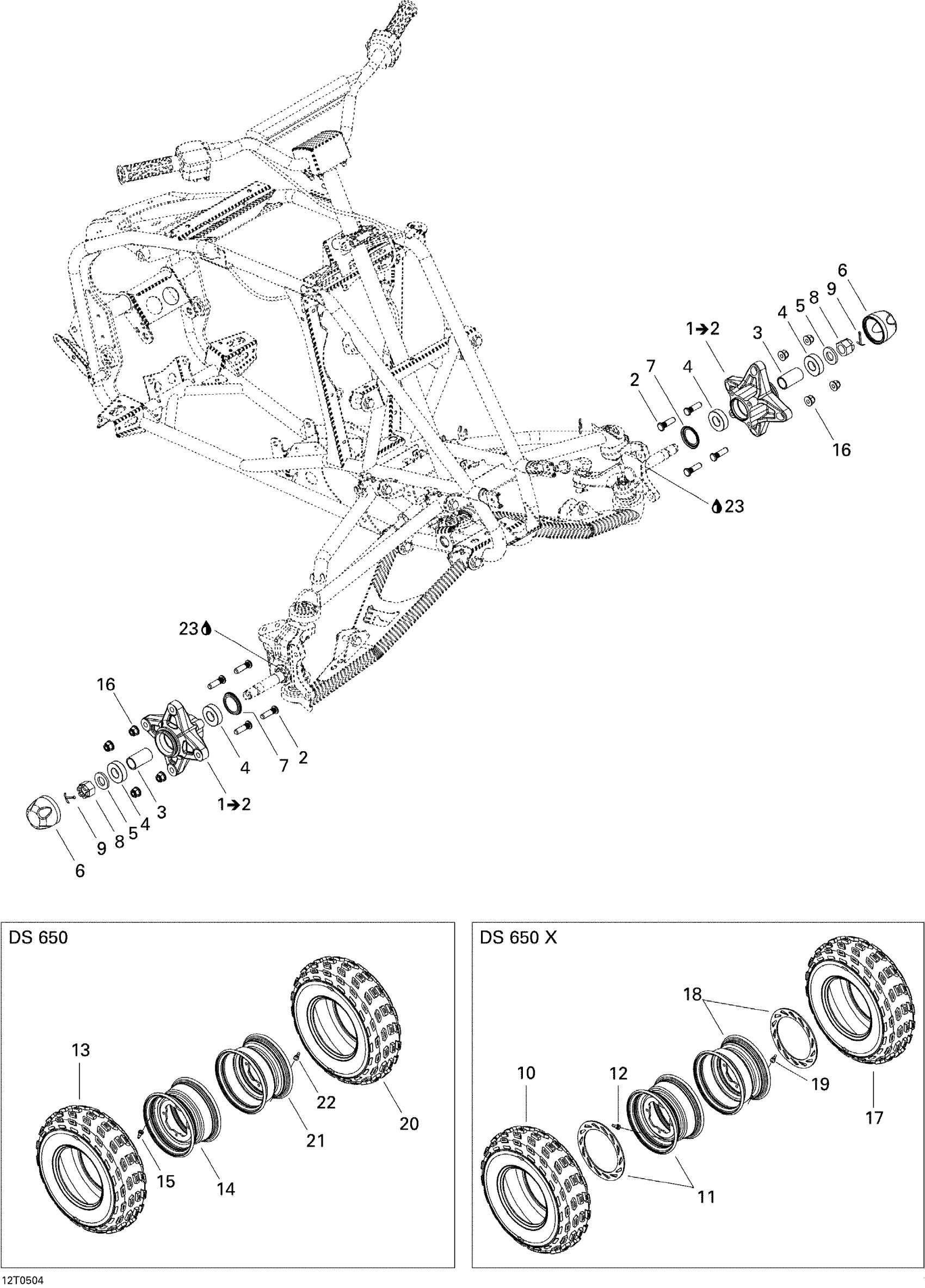

Can-Am DS 650/DS 650 X, 2005 07- Drive System, Front Diagram

#

Description
Price

1

WHEEL HUB ASS'Y - Call your local BRP dealership | Includes 1 to 2

705400217

Unavailable

2

Wheel Stud

250000138

Unavailable

3

INSIDE BUSHING - Call your local BRP dealership

293900043

Unavailable

4

BALL BEARING - Call your local BRP dealership

293350036

Unavailable

5

WASHER - Call your local BRP dealership

250200019

Unavailable

6

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

7

SEAL - Call your local BRP dealership

293250094

Unavailable

8

Hex. Flange Castellated Nut M18

232291413

Unavailable

9

Cotter Pin

371003400

Unavailable

10

FRONT TIRE - Call your local BRP dealership | DS 650 X

705400136

Unavailable

11

RH FRONT RIM - Call your local BRP dealership | DS 650 X

705400137

Unavailable

12

Rim Valve With Cap

705400193

Unavailable

13

FRONT TIRE - Call your local BRP dealership | DS 650 X

705400136

Unavailable

14

Front Rim | DS 650

705400121

Unavailable

15

Rim Valve With Cap

705400193

Unavailable

16

Flange Nut M10

732610084

Unavailable

17

FRONT TIRE - Call your local BRP dealership | DS 650 X

705400136

Unavailable

18

LH Front Rim | DS 650 X

705400140

Unavailable

19

Rim Valve With Cap

705400193

Unavailable

20

FRONT TIRE - Call your local BRP dealership | DS 650 X

705400136

Unavailable

21

Front Rim | DS 650

705400121

Unavailable

22

Rim Valve With Cap

705400193

Unavailable

23

Synthetic Grease, 400 G

293550010

Unavailable
