- DS 650/DS 650 X, 2005
01- Crankshaft And Pistons

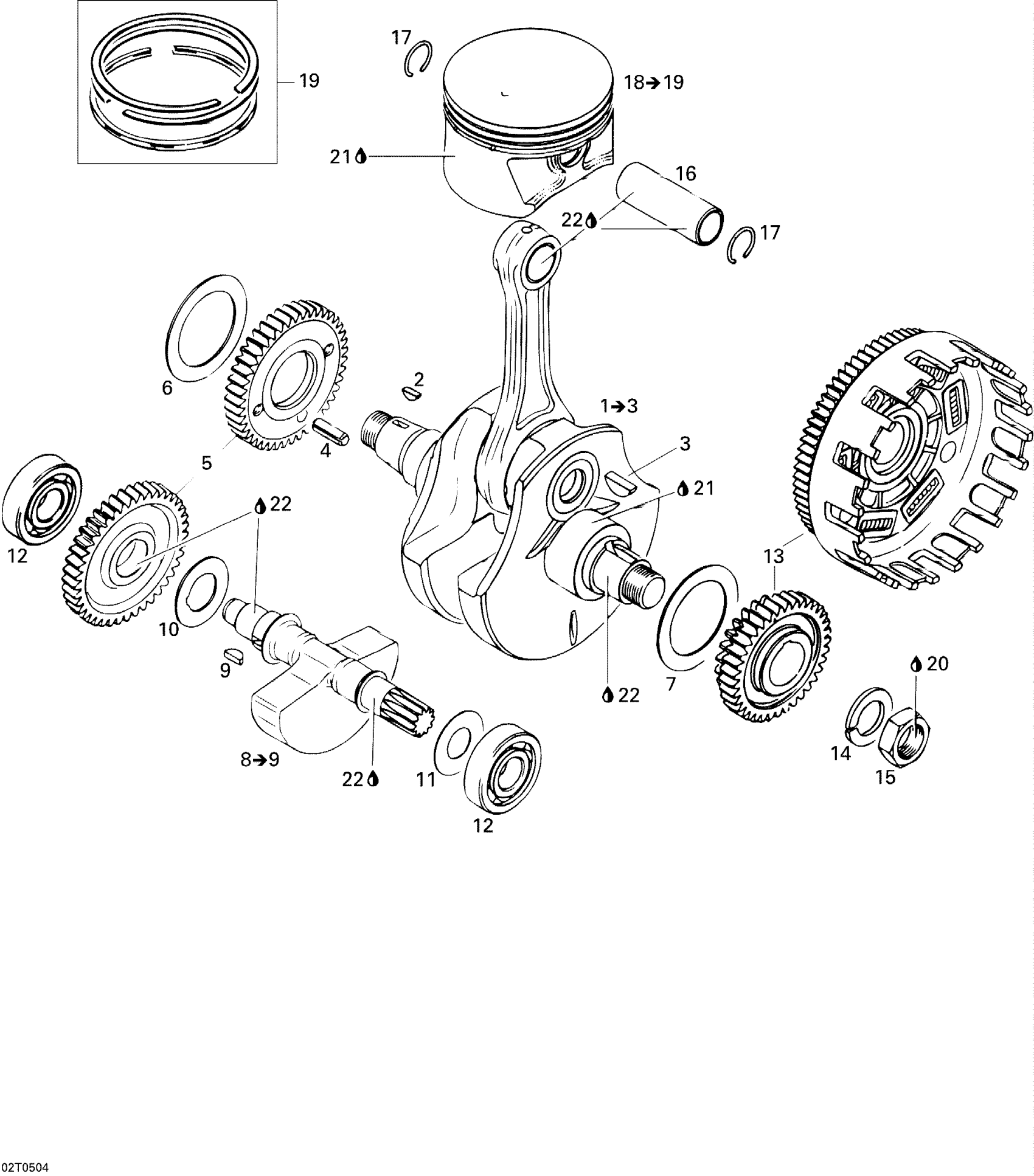

Can-Am DS 650/DS 650 X, 2005 01- Crankshaft And Pistons Diagram
#
Description
Price
1
Crankshaft Ass'y | Includes 1 to 3
420295192
Unavailable
2
Woodruff Key 4 X 5
420246570
Unavailable
3
WOODRUFF KEY 6 X 9 - Call your local BRP dealership
420946015
Unavailable
4
Pin M8 X 24
732804009
Unavailable
5
BALANCE GEAR ASS'Y - Call your local BRP dealership
420294478
Unavailable
6
Shim 48/67/1
420627030
Unavailable
7
Shim 48/67/1,25"
420627031
Unavailable
7
SHIM 48/67/1,5 - Call your local BRP dealership
420627032
Unavailable
7
Shim 48/67/1,75"
420627033
Unavailable
7
SHIM 48/67/1,4 - Call your local BRP dealership
420627035
Unavailable
8
BALANCE SHAFT ASS'Y - Call your local BRP dealership | Includes 8 to 9
420220745
Unavailable
9
Woodruff Key 4 X 5
420246570
Unavailable
10
THRUST WASHER 24,3/41/1 - Call your local BRP dealership
420227542
Unavailable
11
THRUST WASHER 20/41/0,8 - Call your local BRP dealership
420627070
Unavailable
11
THRUST WASHER 20/41/1 - Call your local BRP dealership
420627071
Unavailable
11
THRUST WASHER 20/41/1,2 - Call your local BRP dealership
420627072
Unavailable
11
THRUST WASHER 20/41/1,4 - Call your local BRP dealership
420627073
Unavailable
12
BALL BEARING - Call your local BRP dealership
420932090
Unavailable
13
PRIMARY DRIVE ASS'Y - Call your local BRP dealership
420296365
Unavailable
14
Lock Washer, 22 mm
420945759
Unavailable
15
Hex. Nut, M22 X 1.5
420842239
Unavailable
16
PISTON PIN - Call your local BRP dealership
420216201
Unavailable
17
CIRCLIP #22 - Call your local BRP dealership
420245435
Unavailable
18
PISTON ASS'Y - Call your local BRP dealership | Includes 18 to 19
420295185
Unavailable
19
Piston Ring Set
420295184
Unavailable
20
Loctite 243, 10 ml
293800060
Unavailable
21
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
22
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
