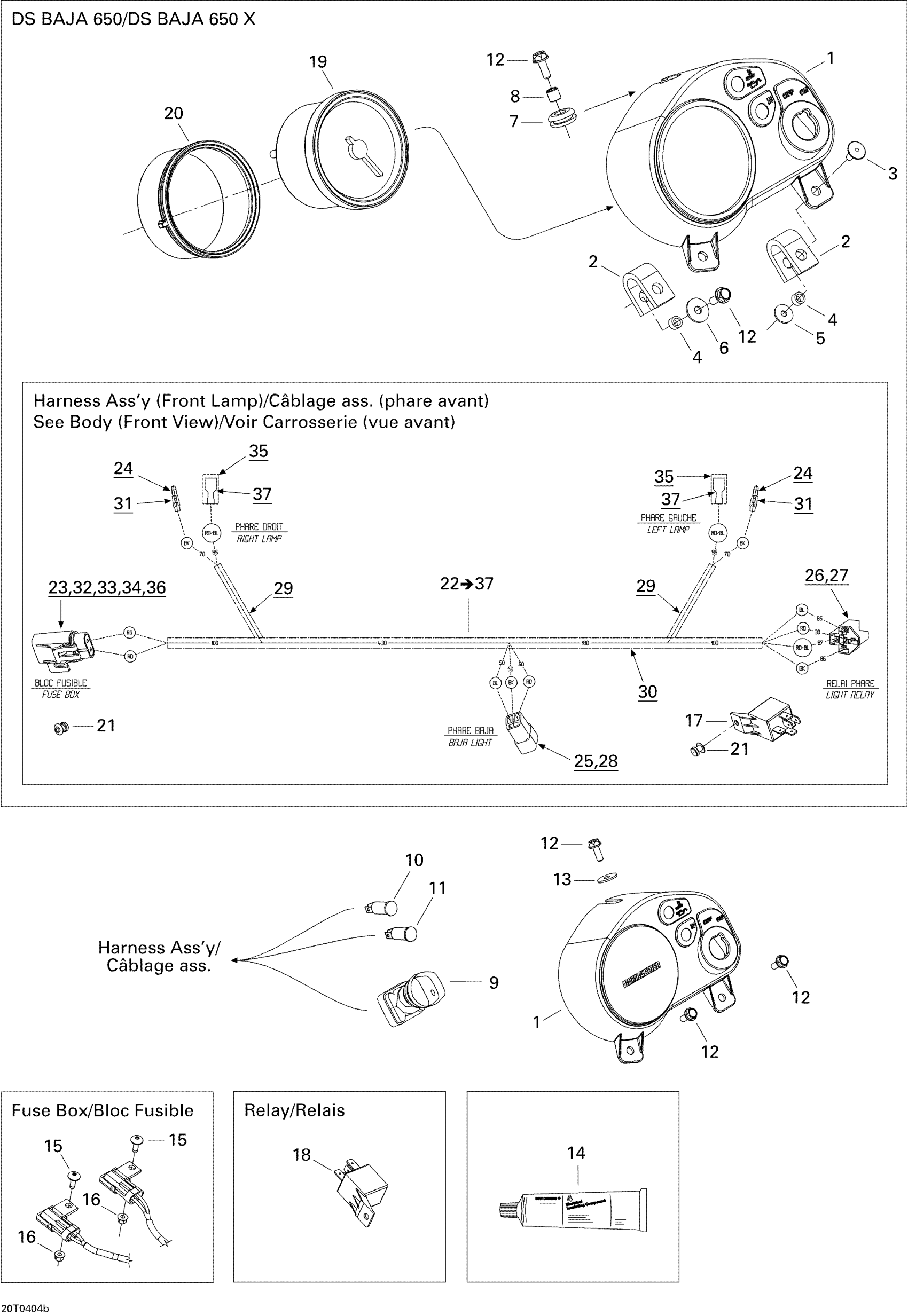

Can-Am DS 650/DS 650 Baja/X, 2004 10- Electrical System 2 Diagram

#

Description
Price

1

DASHBOARD - Call your local BRP dealership | DS 650

710000060

Unavailable

1

DASHBOARD - Call your local BRP dealership | DS 650 X

710000250

Unavailable

2

HOLDER - Call your local BRP dealership | DS 650 X

710000505

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

Unavailable

4

Bushing | DS 650 X

293900104

Unavailable

5

Washer

517124300

Unavailable

6

Flat Washer

224061201

Unavailable

7

Grommet

709000582

Unavailable

8

Bushing

293900105

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership

710000075

Unavailable

9

BLANK KEY (A TYPE) - Call your local BRP dealership

710000137

Unavailable

9

BLANK KEY (B TYPE) - Call your local BRP dealership

710000101

Unavailable

10

Pilot Lamp, Red

710000062

Unavailable

11

Pilot Lamp

710000063

Unavailable

12

Hex. Flange Screw M6 X 16

210261650

Unavailable

13

Flat Washer

224061201

Unavailable

14

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

15

Forming Screw M5 x 16

250000676

Unavailable

16

Hex. Flange Elastic Nut M5

233251414

Unavailable

17

Relay | DS 650 X

710010053

Unavailable

18

Relay | DS 650 X

710010053

Unavailable

19

TACHOMETER - Call your local BRP dealership | DS 650 X

710000426

Unavailable

20

GAUGE SUPPORT - Call your local BRP dealership | DS 650 X

710000427

Unavailable

21

Pop Rivet 3/16" | DS 650 X

390402000

Unavailable

22

FRONT LAMP HARNESS ASS'Y - Call your local BRP dealership | DS 650 X / Includes 22 to 37

710000256

Unavailable

23

Cushion

278000805

Unavailable

24

Male Terminal

278000230

Unavailable

25

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

26

Female Housing, 5 Circuits

409209900

Unavailable

27

Female Terminal

561503100

Unavailable

28

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

29

Tubing 6 mm

515175422

Unavailable

30

Was 409901700 Tubing (9 mm)

219704399

Unavailable

31

Insulated Sheath

278001008

Unavailable

32

Fuse, 15 Amperes

278000343

Unavailable

33

Fuse Holder Cap

278001326

Unavailable

34

Fuse Holder

278001325

Unavailable

35

Rubber Envelope Terminal

710000115

Unavailable

36

Female Terminal

710000113

Unavailable

37

FEMALE TERMINAL - Call your local BRP dealership

710000114

Unavailable
